NSN 6130-00-802-1880 803471-000, 00-802-1880, 803471000
Product Details | INTERRUPTER VIBRATOR
6130-00-802-1880 An electromechanical device which uses a coil operated switching mechanism to convert a direct current input into a pulsating direct current output of the same value. The direct current input is periodically interrupted at the resonant frequency of a coil driven vibrating armature (reed). The resultant pulsating direct current output produces an inherent alternating current component necessary for ultimate purposes of transformation. It does not include a means of amplification or rectification. For items designed to operate over a wide and comparatively high frequency range and whose drive coil may be excited from either an alternating current or a direct current, see CHOPPER, ELECTRONIC.
Part Alternates: 803471-000, 6130-00-802-1880, 00-802-1880, 6130008021880, 803471000, 008021880
Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1962 | 00-802-1880 | 00743 ( VIBRATOR, INTERRUPTER ) |
Drawings & Photos | NSN 6130-00-802-1880
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6130-00-802-1880
Technical Data | NSN 6130-00-802-1880
| Characteristic | Specifications |
|---|---|
| INPUT VOLTAGE RATING | 48.0 DC VOLTS NOMINAL |
| INPUT CURRENT RATING | 48.0 MILLIAMPERES NOMINAL |
| DRIVE VOLTAGE RELATIONSHIP TO INPUT VOLTAGE | UNEQUAL |
| OUTPUT FREQUENCY RATING | 20.0 HERTZ NOMINAL |
| REED TYPE | SINGLE |
| HERMETICALLY SEALED FEATURE | NOT PROVIDED |
| OVERALL LENGTH | 3.758 INCHES NOMINAL |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| OVERALL HEIGHT | 1.625 INCHES NOMINAL |

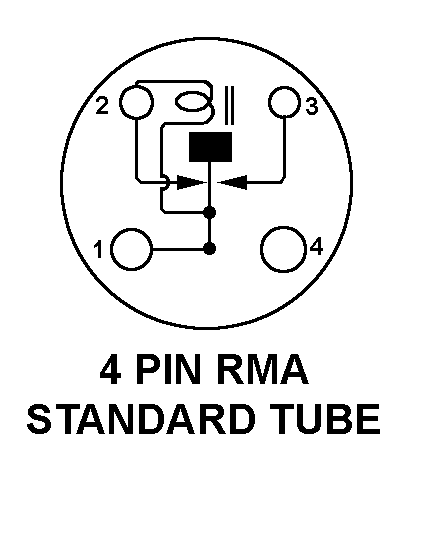

| BASE CONNECTION WIRING STYLE | A1 4 PIN STANDARD TUBE |
| MANUFACTURERS CODE | 14100 |
| DESIGN CONTROL REFERENCE | 803471-000 |
Restrictions/Controls & Freight Information | NSN 6130-00-802-1880
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
