NSN 6130-00-503-2497 LGS6A15OVR, LGS-6A-15-OV-R, LVEE15A0V
Product Details | POWER SUPPLY
6130-00-503-2497 A component which converts available alternating current or direct current electrical power into a form required to operate another component or set. The item may consist of a combination of an INVERTOR, VIBRATOR; VIBRATOR, INTERRUPTER; VIBRATOR, SELF-RECTIFYING; INVERTOR, POWER, STATIC; with a transformer and rectifier(s) employing electron tubes, semiconductor diode or metallic (dry disc) type components, or the synchronized secondary contact(s) of a VIBRATOR, SELF-RECTIFYING; or may consist of electron tubes, semiconductor diode or metallic (dry disc) type rectifiers and capacitors in transformerless (alternating current-direct current type) circuits which may be of the voltage-multiplier type. The item may incorporate a FILTER, DIRECT CURRENT POWER and provisions for regulation of input and/or output voltage. The item may have special input, output, control or other facilities for applications in specialized environments such as medical, dental or other operations. Excludes battery chargers and rotating machinery types of items, such as motor generators and dynamotors.20461200044Transformers: Distribution and Power Station61300035Converters, Electrical, Nonrotating65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies
Part Alternates: LGS6A15OVR, LGS-6A-15-OV-R, LVEE15A0V, 6130-00-503-2497, 00-503-2497, 6130005032497, 005032497
Electric Wire, and Power and Distribution Equipment | Converters, Electrical, Nonrotating
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 13 JUL 1974 | 00-503-2497 | 00740 ( POWER SUPPLY ) |

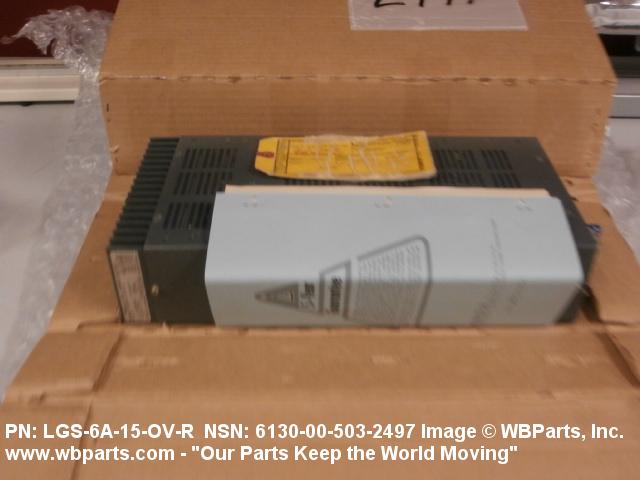

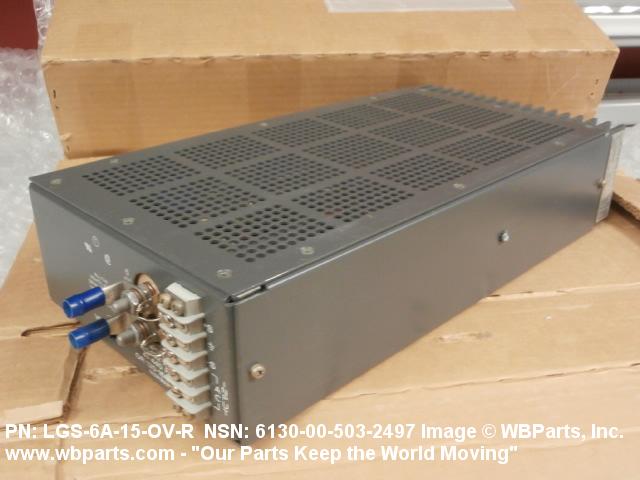

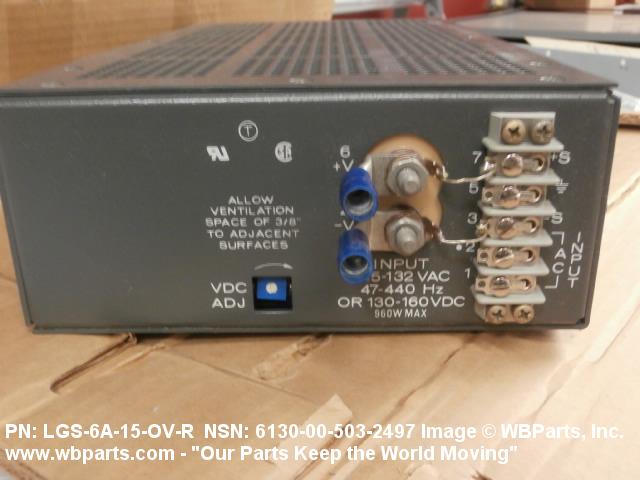

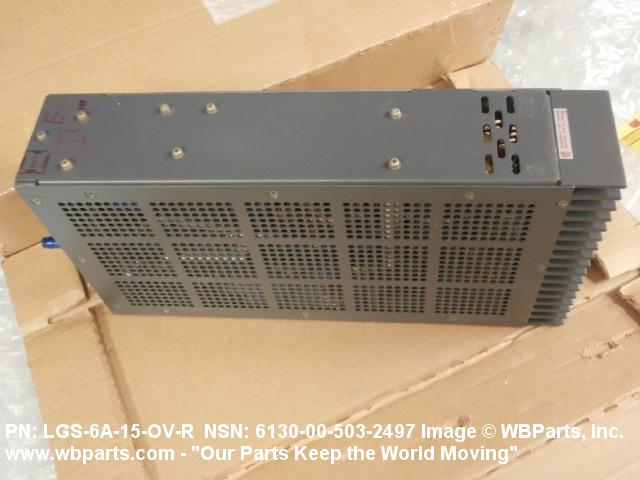

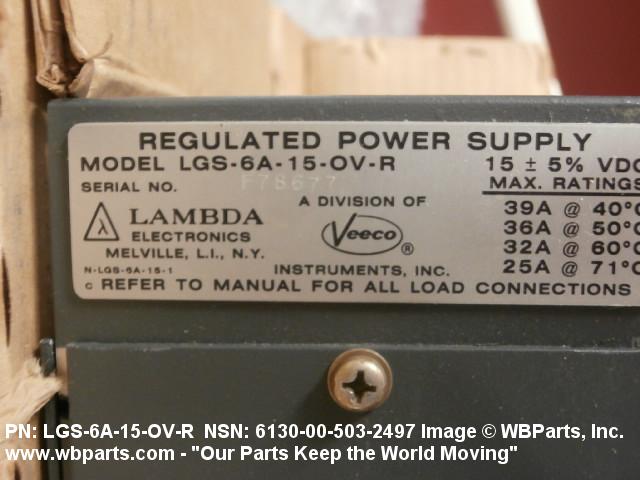

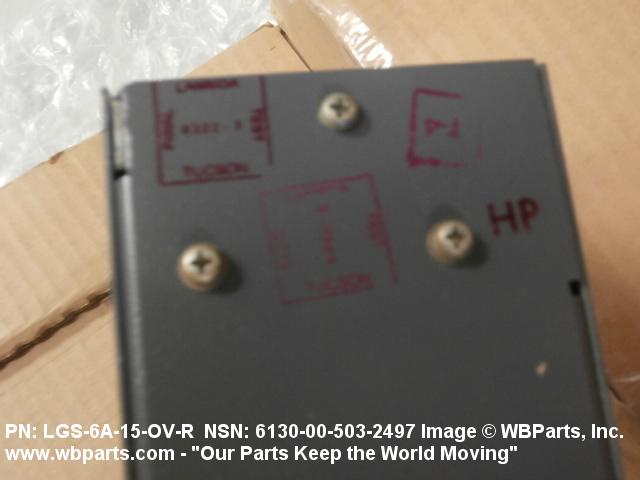

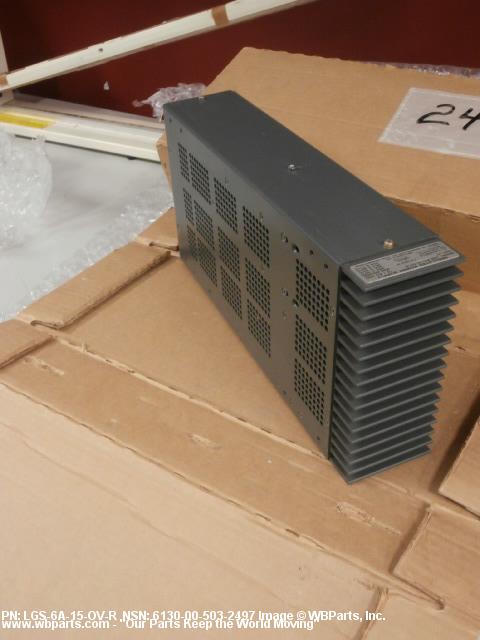

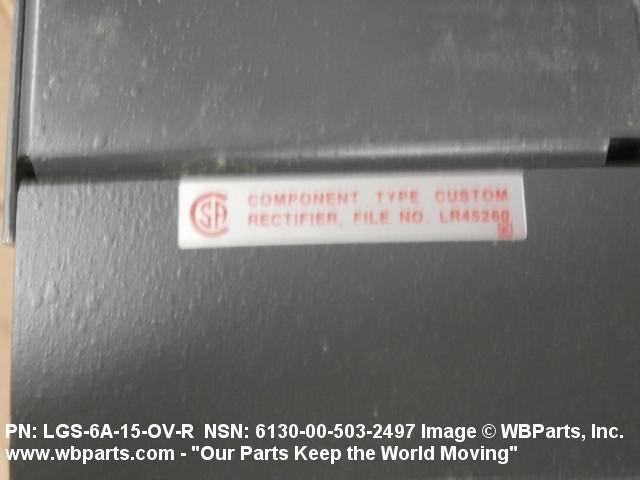

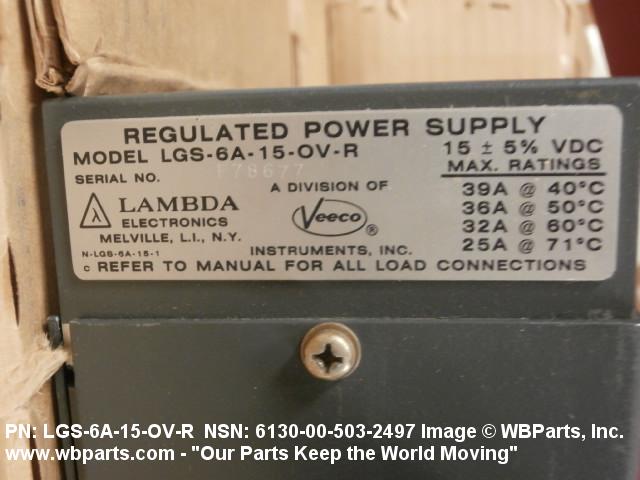

Drawings & Photos | NSN 6130-00-503-2497
Demand History | NSN 6130-00-503-2497
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6130-00-503-2497 | 2015-12-344 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6130-00-503-2497
Technical Data | NSN 6130-00-503-2497
| Characteristic | Specifications |
|---|---|
| RECTIFICATION METHOD | SINGLE PHASE FULL WAVE CENTER TAP |
| OUTPUT VOLTAGE RATING | 14.2 DC VOLTS MINIMUM AND 15.8 DC VOLTS MAXIMUM SINGLE POWER OUTPUT |
| OUTPUT CURRENT RATING | 18.0 DC AMPERES MINIMUM AND 28.0 DC AMPERES MAXIMUM SINGLE POWER OUTPUT |
| OUTPUT CONTROL TYPE | VOLTAGE ADJUSTMENT SINGLE POWER OUTPUT |
| OUTPUT CONTROL QUANTITY | 1 SINGLE POWER OUTPUT |
| OUTPUT CONNECTION QUANTITY | 2 SINGLE POWER OUTPUT |
| OUTPUT CONNECTION TYPE | TERMINAL STRIP SINGLE POWER OUTPUT |
| ELECTRICAL POWER SOURCE RELATIONSHIP | OPERATING |
| INPUT VOLTAGE RATING | 105.0 AC VOLTS MINIMUM AND 132.0 AC VOLTS MAXIMUM SINGLE OPERATING POWER RQMT |
| INPUT FREQUENCY RATING | 57.0 HERTZ MINIMUM AND 63.0 HERTZ MAXIMUM SINGLE OPERATING POWER RQMT |
| INPUT PHASE | SINGLE SINGLE OPERATING POWER RQMT |
| OVERALL LENGTH | 16.500 INCHES NOMINAL |
| OVERALL WIDTH | 7.500 INCHES NOMINAL |
| OVERALL HEIGHT | 4.938 INCHES NOMINAL |
| OPERATING AMBIENT TEMP RANGE | 0.1 TO 71.0 DEG CELSIUS |
| FEATURES PROVIDED | FILTER |
| (NON-CORE DATA) SUPPLEMENTARY FEATURES | RECTIFIER TYPE: DIODE SEMICONDUCTOR DEVICE |
| MANUFACTURERS CODE | 80103 |
| DESIGN CONTROL REFERENCE | LGS-6A-15-OV-R |
Restrictions/Controls & Freight Information | NSN 6130-00-503-2497
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062900 | RECTIFIERS NOI/BATTERY ELIMINATORS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6130-00-503-2497
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
