NSN 6115-00-643-4674 ESD170499, ESDL133894, PU304ABMPQ4A
Product Details | TRAILER MOUNTED GASOLINE ENGINE GENERATOR SET
6115-00-643-4674 A generator set using a gasoline engine as the prime mover, the complete unit being mounted on a trailer in order to provide a mobile power source.
Part Alternates: ESD170499, ESDL133894, PU304ABMPQ4A, PU304MPQ4, 6115-00-643-4674, 00-643-4674, 6115006434674, 006434674
Electric Wire, and Power and Distribution Equipment | Generators and Generator Sets, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1963 | 00-643-4674 | 16375 ( GENERATOR SET, GASOLINE ENGINE, TRAILER MOUNTED ) |
Drawings & Photos | NSN 6115-00-643-4674
Cross Reference | NSN 6115-00-643-4674
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6115-00-643-4674
Related Products | NSN 6115-00-643-4674
Technical Data | NSN 6115-00-643-4674
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | AC AND DC |
| AC WATTAGE RATING | 10.0 KILOWATTS AND 10.0 KILOWATTS AND 12.5 KILOWATTS |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL AND 400.0 HERTZ NOMINAL AND 400.0 HERTZ NOMINAL |
| PHASE | SINGLE AND THREE AND THREE |
| LINE TO LINE VOLTAGE IN VOLTS | 120.0 AND 280.0 AND 208.0 |
| LINE TO NEUTRAL VOLTAGE IN VOLTS | 120.0 AND 280.0 AND 208.0 |
| POWER FACTOR IN PERCENT | 80.0 AND 80.0 AND 80.0 |
| DC VOLTAGE RATING | 28.0 VOLTS NOMINAL |
| DC WATTAGE RATING | 2.5 KILOWATTS |
| DIRECT CURRENT RATING IN AMPS | 357.1 AND 428.6 |
| EXCITOR TYPE | SELF-EXCITED |
| EXCITOR | NOT INCLUDED |
| AMBIENT TEMP IN DEG CELSIUS | 50.0 |
| TEMP RISE RATING IN DEG CELSIUS FOR CONTINUOUS OPERATION | 40.0 |
| MANUFACTURER NAME | OKEEF-MERRITT CO |
| IDENTIFYING NUMBER | PERMANENT MAGNET TYPE |
| PRIME MOVER MANUFACTURER NAME | WILLYS OVERLAND CO |
| PRIME MOVER IDENTIFYING NUMBER | 807532 MODEL NO. |
| RADIO INTERFERENCE SUPPRESSION | INCLUDED |
| WINTERIZATION FEATURE | NOT INCLUDED |
| DOCUMENT CONTROLLING AGENCY | SIG |
| DOCUMENT TYPE | TECHNICAL MANUAL |
| DOCUMENT IDENTIFICATION | TM-11-1367 (1960+ECKX |
| WHEEL QUANTITY | 2 |
| BODY TYPE | BOX |
| BODY MATERIAL | STEEL |
| LOAD CAPACITY | 1.50 TONS |

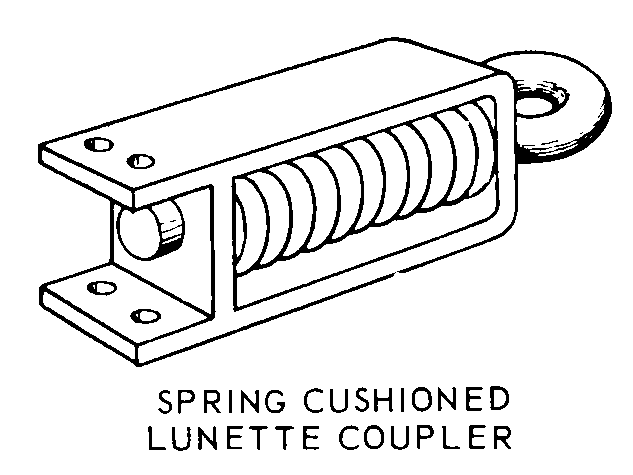

| HITCH/COUPLER STYLE | 4 SPRING CUSHIONED LUNETTE COUPLER |
| III END ITEM IDENTIFICATION | TYPE NO. AN/MPQ-4A |
| III ITEM NAME ASSIGNED BY GOVERNMENT AGENCY | GENERATOR SET,GASOLINE ENGINE,TRAILER MTD |
Restrictions/Controls & Freight Information | NSN 6115-00-643-4674
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062080 | GENERATORS-ENGINES COMBINED |
| Less than car load rating | Q | 70 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6115-00-643-4674
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | G | Communications and Electronics Equipment, Electronics Materiel |
| Appropriation and Budget Activity | Q | Other Support Equipment |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | V | Power Generating Systems |
| Weapons Systems/End Item or Homogeneous Group | VW | Gen.sets: 400hz (not Pat.) |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | B16 | US Army Communications-Electronics Command and Fort Monmouth Fort Monmouth, NJ 07703-5016 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
