NSN 6110-01-390-0461 SK3359, SK-3359, 01-390-0461
Product Details | MOTOR CONTROLLER
6110-01-390-0461 A device which, in addition to starting and stopping a motor, performs one or more of the following functions: reverses the rotation, selects the speed, and/or regulates the speed of a motor. Includes items of this type whose design provides means for operation with a rheostat or speed regulator which may be integral or included. Items such as drum switches may be included. See also STARTER, MOTOR.
Part Alternates: SK3359, SK-3359, 6110-01-390-0461, 01-390-0461, 6110013900461, 013900461
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 11 MAY 1994 | 01-390-0461 | 00904 ( CONTROLLER, MOTOR ) |

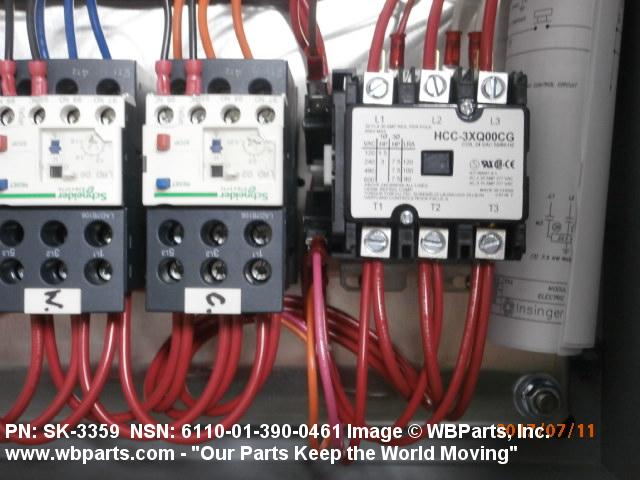

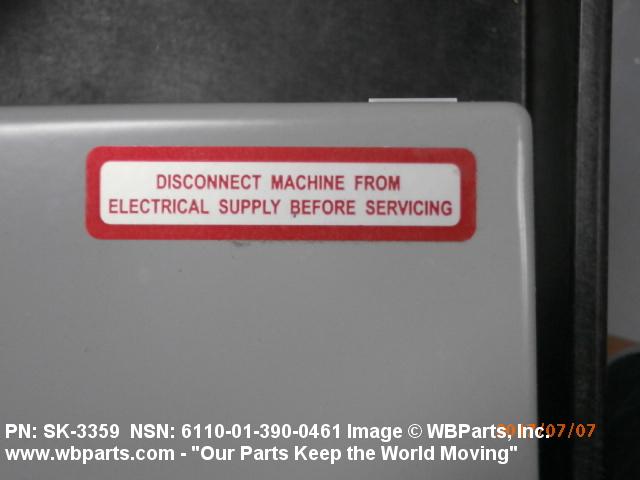

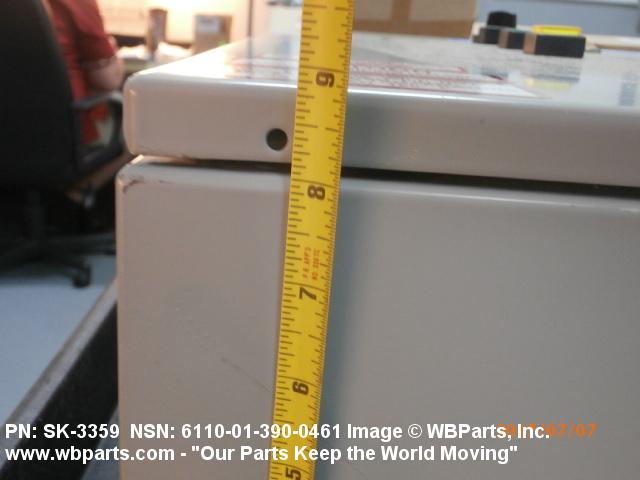

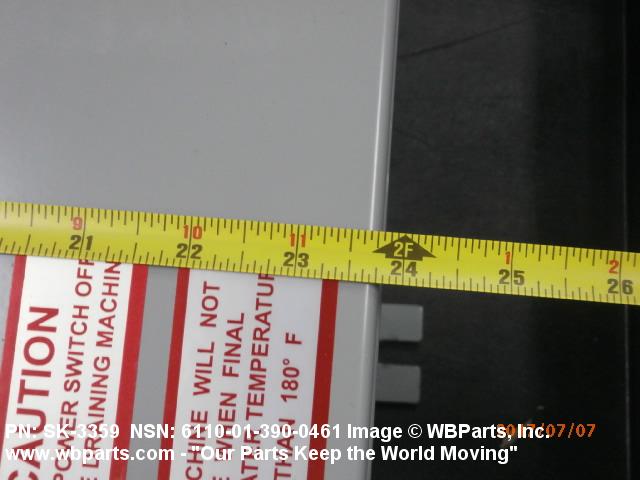

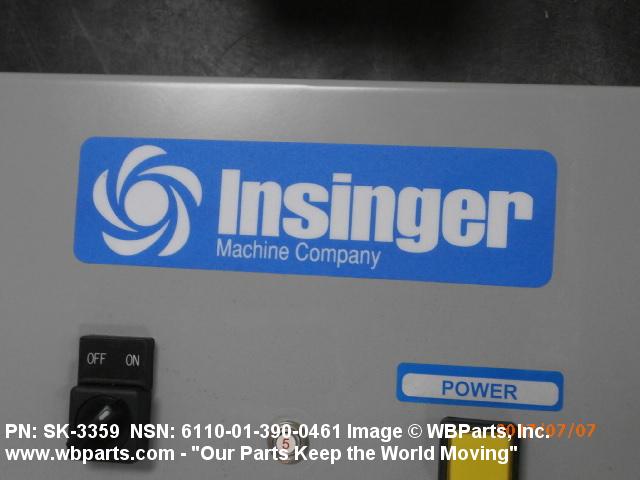

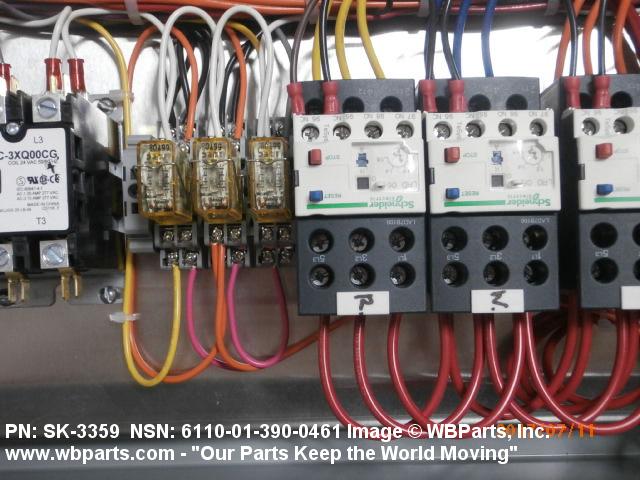

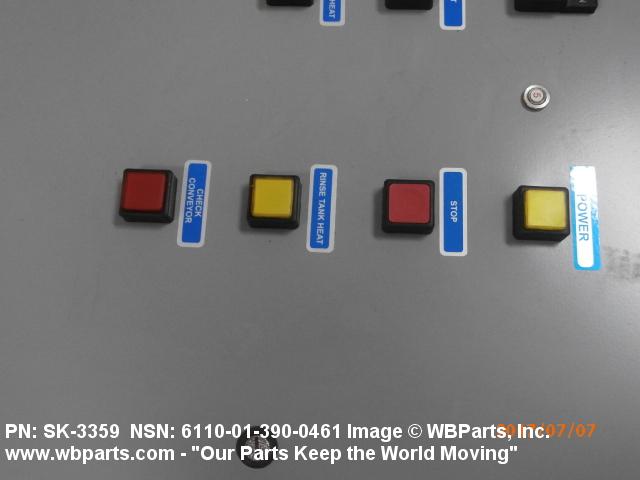

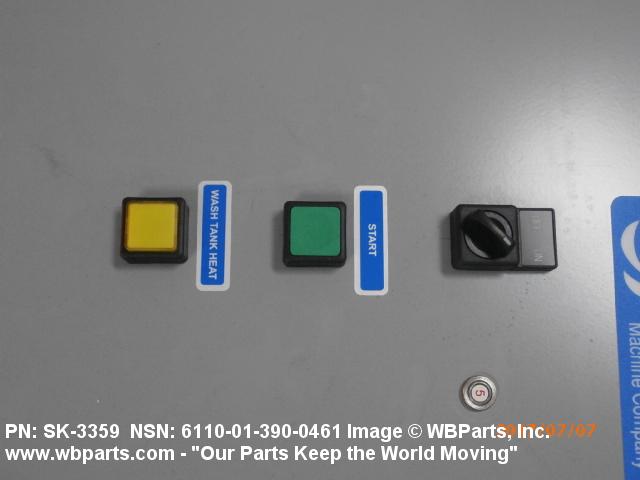

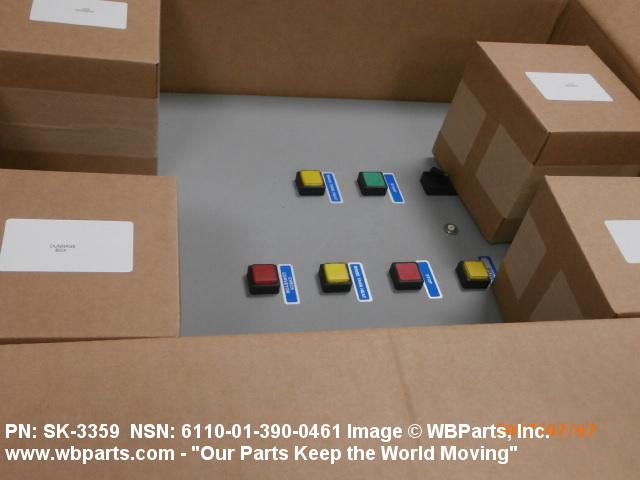

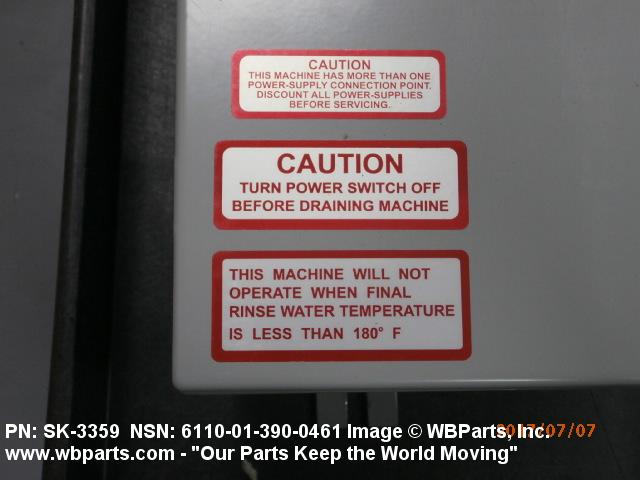

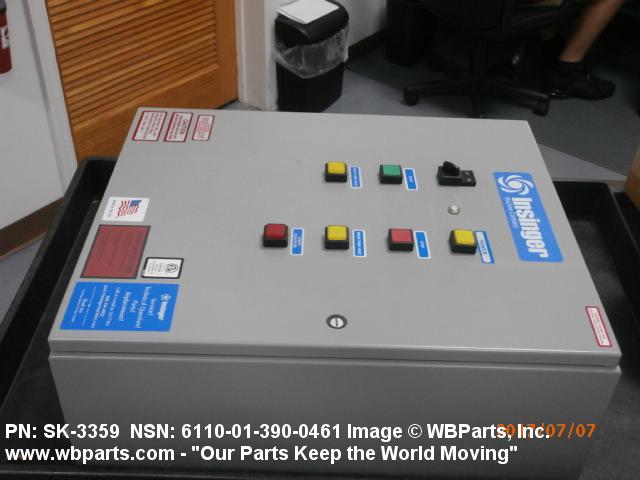

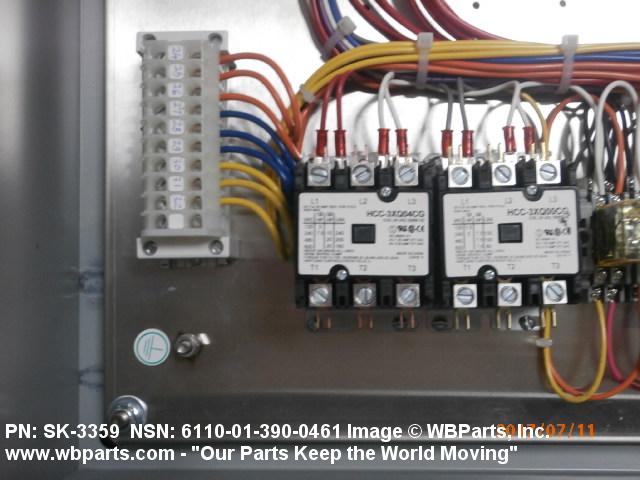

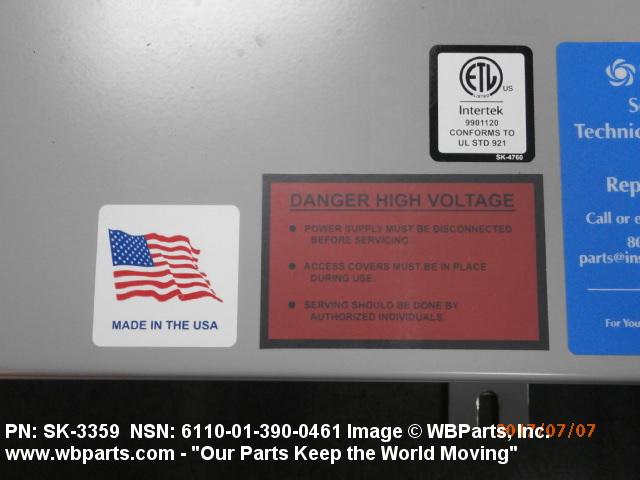

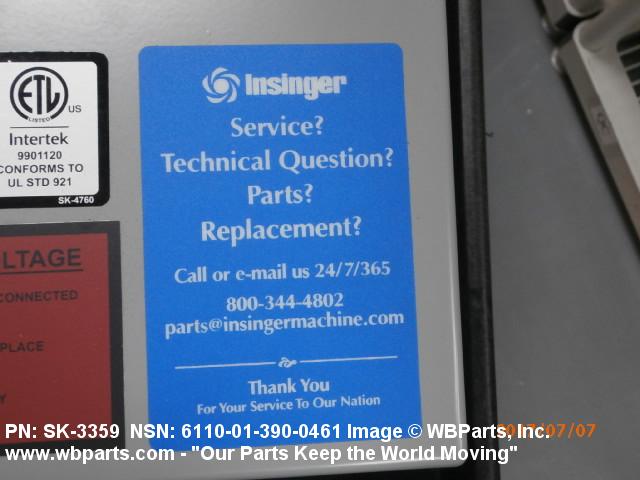

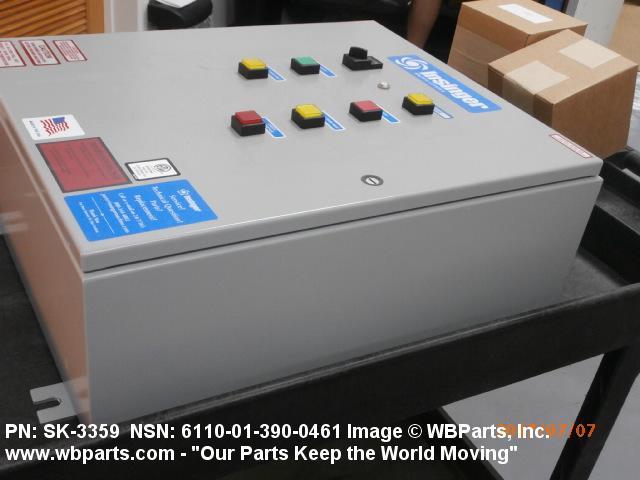

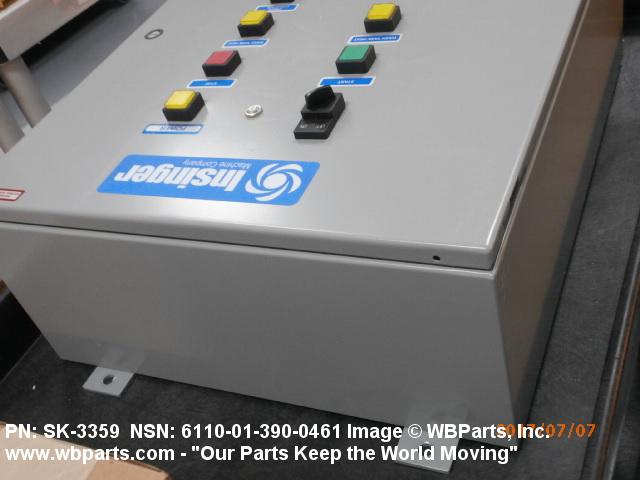

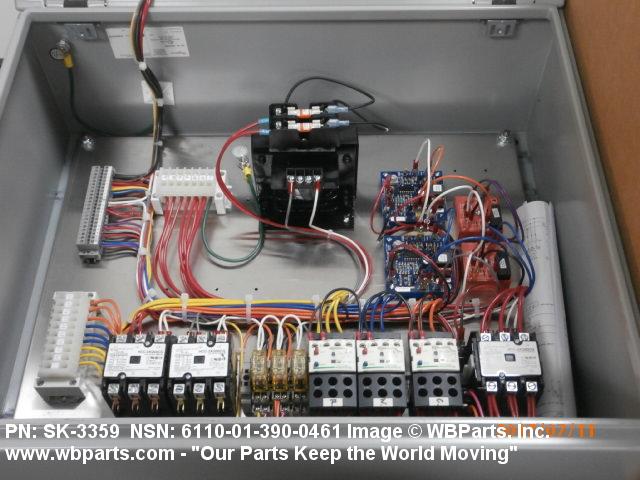

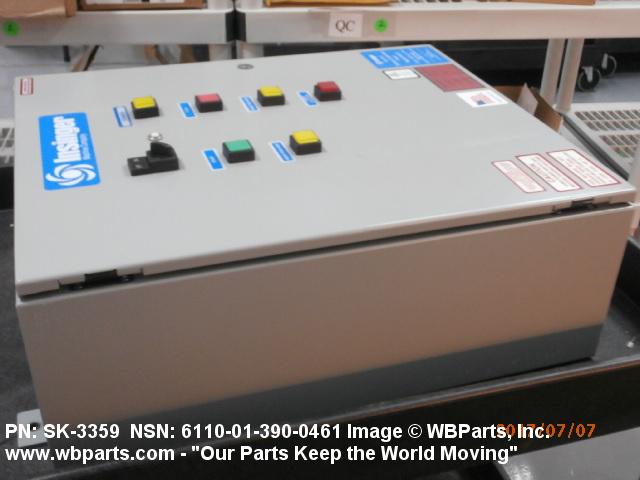

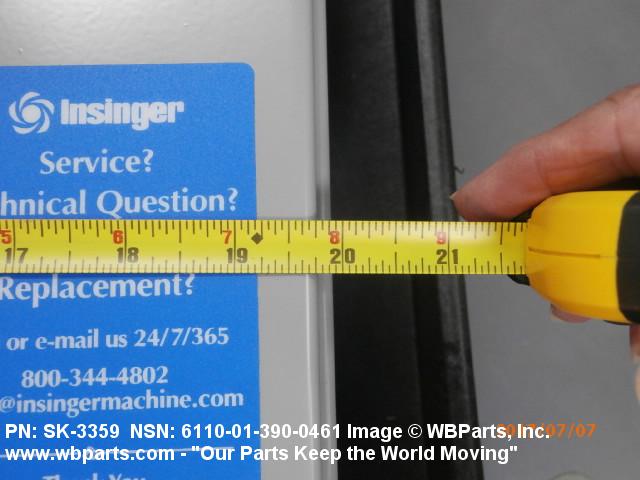

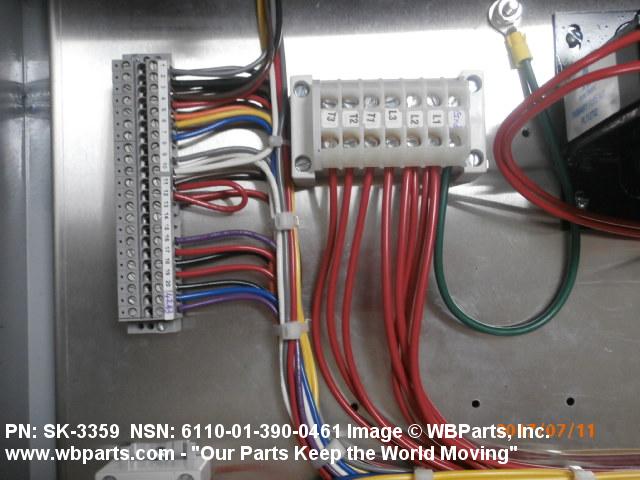

Drawings & Photos | NSN 6110-01-390-0461
Demand History | NSN 6110-01-390-0461
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SK-3359 | 2024-09-262 | 1 | DIBBS |
| SK-3359 | 2023-09-247 | 1 | DIBBS |
| SK-3359 | 2022-05-137 | 1 | DIBBS |
| SK-3359 | 2022-05-124 | 1 | DIBBS |
| SK-3359 | 2021-12-350 | 1 | DIBBS |
| SK-3359 | 2021-03-66 | 1 | DIBBS |
| SK-3359 | 2021-02-40 | 1 | DIBBS |
| SK-3359 | 2020-12-355 | 1 | DIBBS |
| SK-3359 | 2020-02-50 | 1 | DIBBS |
| SK-3359 | 2019-10-274 | 1 | DIBBS |
| 6110-01-390-0461 | 2018-06-156 | 1 | US |
| 6110-01-390-0461 | 2017-07-194 | 1 | DIBBS |
| 6110-01-390-0461 | 2017-06-152 | 1 | DIBBS |
| 6110-01-390-0461 | 2017-05-142 | 1 | United States |
| 6110-01-390-0461 | 2017-04-117 | 1 | DIBBS |
| 6110-01-390-0461 | 2017-03-73 | 1 | DIBBS |
| 6110-01-390-0461 | 2017-02-41 | 1 | DIBBS |
| 6110-01-390-0461 | 2017-01-29 | 1 | DIBBS |
| 6110-01-390-0461 | 2014-07-212 | 2 | DIBBS |
| 6110-01-390-0461 | 2014-01-16 | 1 | DIBBS |
Cross Reference | NSN 6110-01-390-0461
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SK-3359 | 30793 | INSINGER MACHINE COMPANY, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6110-01-390-0461
Technical Data | NSN 6110-01-390-0461
| Characteristic | Specifications |
|---|---|
| NATIONAL ELECTRICAL MANUFACTURERS ASSOCIATION STANDARDS DESIGN | NOT DESIGNED PER NEMA STD |
| OPERATING VOLTAGE CHARACTERISTIC | FULL |
| AC VOLTAGE RATING | 208.0 VOLTS NOMINAL AND 220.0 VOLTS NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | THREE |
| AMP SIZE RATING | 5.0 |
| HORSEPOWER RATING | 1.000 |
| CONTROL TYPE | LOCAL |
| ACTUATION METHOD | MAGNETIC |
| ACTUATOR VOLTAGE | 208.0 AC |
| CIRCUIT PROTECTION FUSE | PROVIDED |
| FUSE ACCOMMODATION QUANTITY | 1 |
| FUSE CURRENT RATING IN AMPS | 5.0 |
| PERFORMANCE TYPE | AUTOMATIC |
| LOAD PROTECTION TYPE | OVERLOAD |
| DUTY CYCLE | CONTINUOUS |
| AMBIENT TEMP | 50.0 DEG CELSIUS |
| SPEED ADJUSTMENTS | SINGLE SPEED |
Restrictions/Controls & Freight Information | NSN 6110-01-390-0461
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061480 | CONTROLLERS/PARTS NOI O/T PLASTIC |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6110-01-390-0461
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
