NSN 6110-00-727-0792 32005181, 3200518-1, 3S2020BR134B1
Product Details | VOLTAGE REGULATOR
6110-00-727-0792 A component within a single inclosure or provided with a single mounting specifically designed to control automatically the voltage output of an electrical system within certain required limits, regardless of variations of the effective load or of input voltages within a specific range. Does not include items in which regulation is accomplished solely by transformer action. See also REGULATOR SET, VOLTAGE. Excludes REGULATOR, ENGINE GENERATOR.20259630018Electronic Modules61100028Electrical Control Equipment
Part Alternates: 32005181, 3200518-1, 3S2020BR134B1, 63C415511, 63C41551-1, 6110-00-727-0792, 00-727-0792, 6110007270792, 007270792
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 01 JAN 1961 | 00-727-0792 | 00176 ( REGULATOR, VOLTAGE ) |

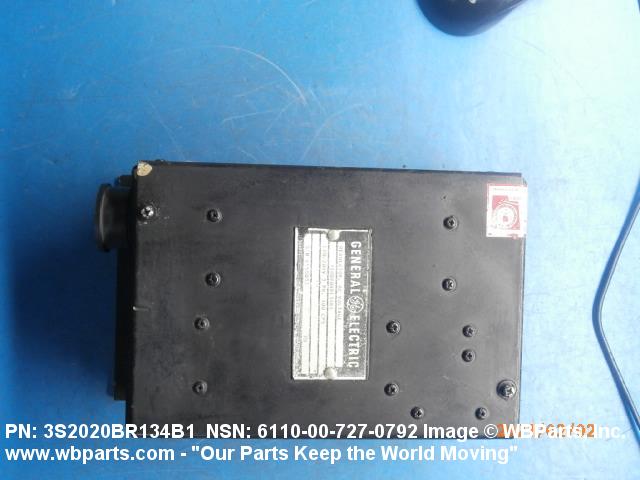

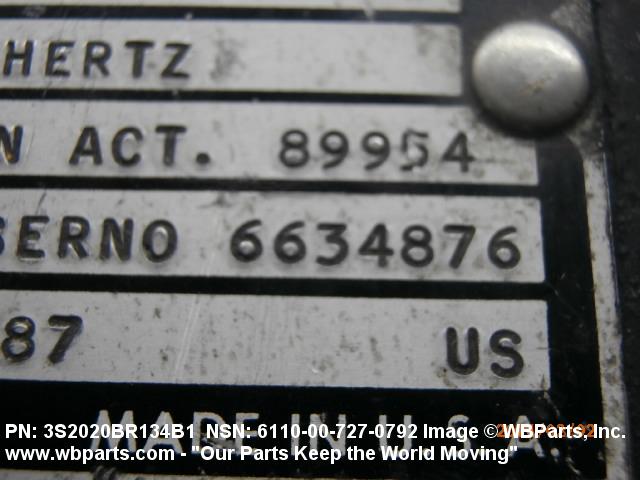

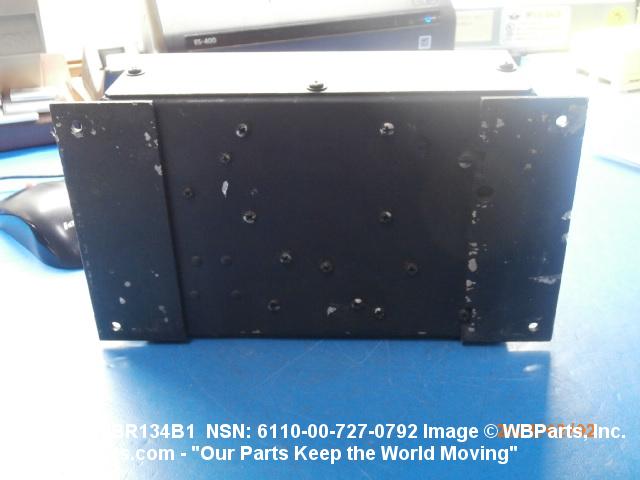

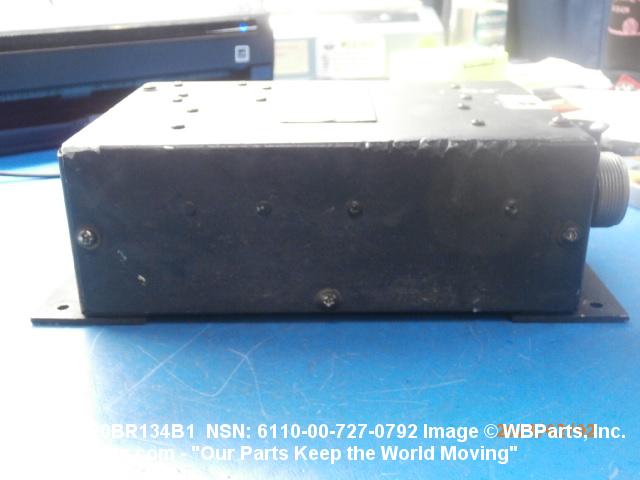

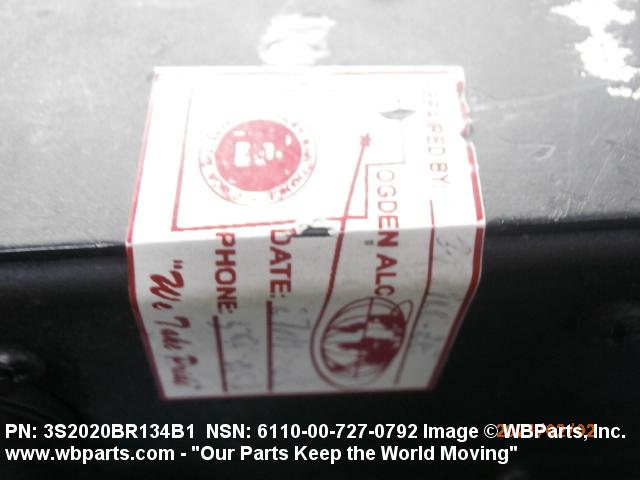

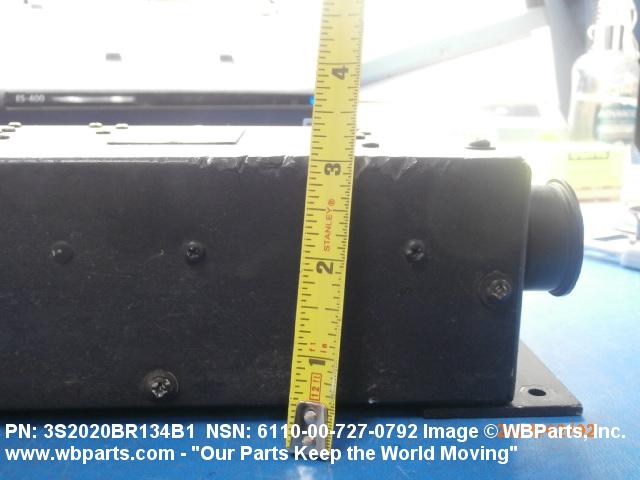

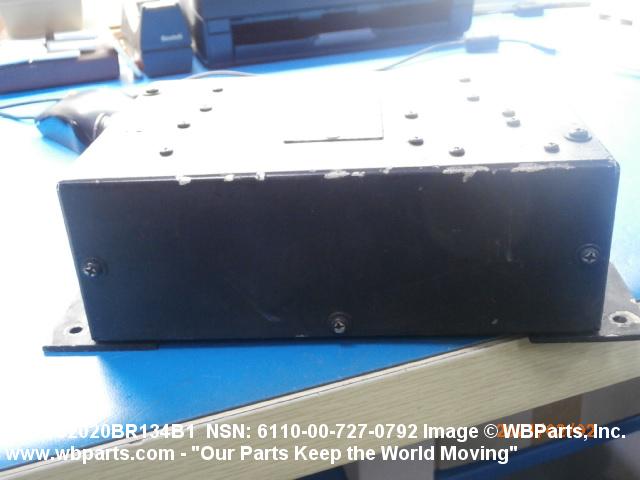

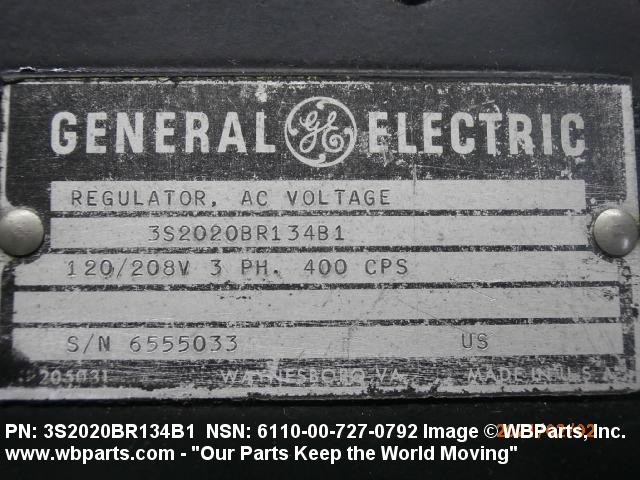

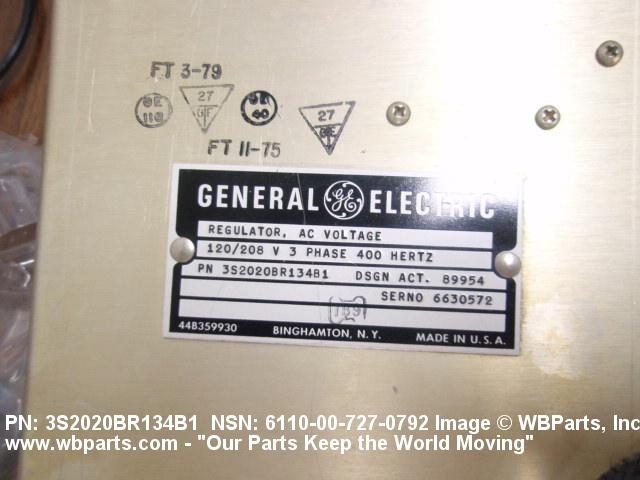

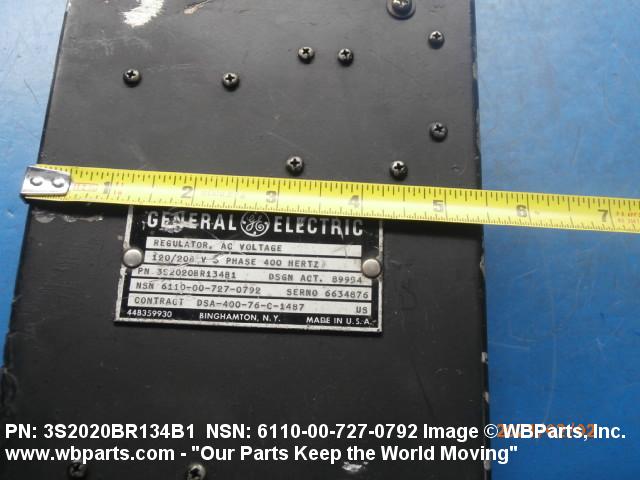

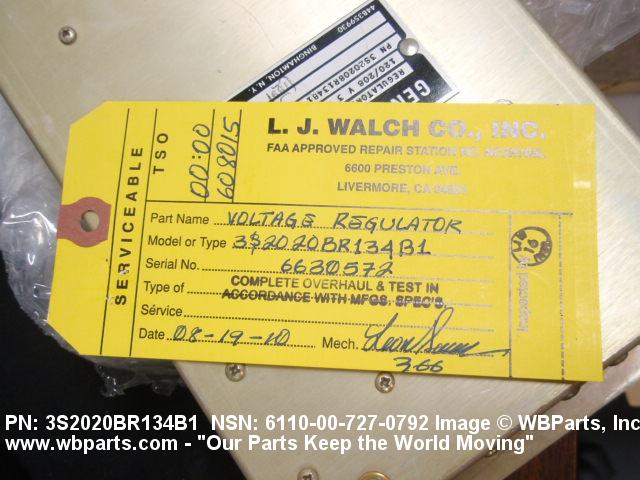

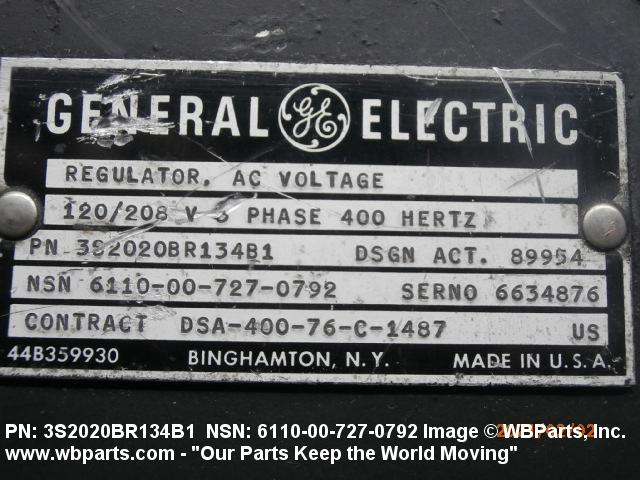

Drawings & Photos | NSN 6110-00-727-0792
Demand History | NSN 6110-00-727-0792
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6110-00-727-0792 | 2024-09-255 | 1 | CA |
| 6110-00-727-0792 | 2024-02-60 | 1 | Taiwan |
| 6110-00-727-0792 | 2021-05-137 | 1 | TW |
| 6110-00-727-0792 | 2021-04-110 | 1 | US |
| 6110-00-727-0792 | 2020-12-363 | 1 | US |
| 6110-00-727-0792 | 2020-09-267 | 2 | Indonesia |
| 6110-00-727-0792 | 2020-07-204 | 1 | Indonesia |
| 6110-00-727-0792 | 2020-05-148 | 1 | United States |
| 6110-00-727-0792 | 2020-02-41 | 1 | Indonesia |
| 6110-00-727-0792 | 2019-10-303 | 1 | Indonesia |
| 6110-00-727-0792 | 2019-10-297 | 1 | Indonesia |
| 6110-00-727-0792 | 2019-10-296 | 1 | Indonesia |
| 3S2020BR134B1 | 2018-08-226 | 1 | Thailand |
| 6110-00-727-0792 | 2015-04-100 | 2 | US |
| 6110-00-727-0792 | 2011-12-335 | 1 | Taiwan |
| 6110-00-727-0792 | 2010-06-158 | 1 | Greece |
| 6110-00-727-0792 | 2010-02-43 | 1 | United States |
| 6110-00-727-0792 | 2009-09-252 | 1 | United States |
| 6110-00-727-0792 | 2009-03-70 | 1 | United States |
Cross Reference | NSN 6110-00-727-0792
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3200518-1 | 11243 | COSMODYNE, LLC |
| 3S2020BR134B1 | 01526 | GENICOM CORP |
| 3S2020BR134B1 | 1DUQ5 | COMMUNICATIONS INSTRUMENTS INC DIV OF CII TECHNOLOGIES |
| 3S2020BR134B1 | 24446 | GENERAL ELECTRIC CO |
| 3S2020BR134B1 | 30552 | GENERAL ELECTRIC CO DISTRIBUTION TRANSFORMER BUSINESS |
| 63C41551-1 | 98749 | SACRAMENTO AIR LOGISTICS CENTER SM-ALC/LIIL |
| 63C41551-1 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6110-00-727-0792
Related Products | NSN 6110-00-727-0792
Technical Data | NSN 6110-00-727-0792
| Characteristic | Specifications |
|---|---|
| REGULATION METHOD | ANY ACCEPTABLE |
| CIRCUIT TYPE | PARALLEL |
| COMPENSATION PROVIDED | INDIVIDUAL DROOP |
| INPUT CURRENT TYPE | AC |
| INPUT VOLTAGE RATING IN VOLTS | 120.0 MINIMUM AND 208.0 MAXIMUM |
| INPUT FREQUENCY RATING IN HERTZ | 400.0 NOMINAL |
| INPUT PHASE | THREE |
| REGULATION PERCENT | 1.00 |
| OPERATING TEMP RANGE | -54.0 TO 54.0 DEG CELSIUS |
| INCLOSURE FEATURE | DRIPPROOF |
| OVERALL WIDTH | 5.500 INCHES NOMINAL |
| OVERALL LENGTH | 9.630 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 6110-00-727-0792
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062920 | REGULATORS INDUCTION/VOLTAGE SUB2 |
| Less than car load rating | D | 200 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 6110-00-727-0792
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | ID | TG:GENERATORS AND GENERATOR SETS, GROUND |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
