NSN 6110-00-493-8952 10950250, 00-493-8952, 004938952
Product Details | DISTRIBUTION BOX
6110-00-493-8952 An enclosure which includes mounts, and protects such items as switches, circuit breakers, jacks, fuseholders, connectors, terminals and/or terminal boards, resistors, capacitors, transformers, and the like. It is primarily designed to distribute electrical power from one or more primary power source(s) such as generator(s) and battery(ies) to one or more electrical and/or electronic item(s). It may include a cover or door. For enclosures which include only circuit breakers, switches, jacks, fuseholders, terminals and/or terminal boards, see CIRCUIT BREAKER BOX; SWITCH BOX; JACK BOX; FUSE BOX and TERMINAL BOX. For enclosure primarily designed to interconnect two or more electrical and/or electronic items, except primary power source(s) see INTERCONNECTING BOX. For empty boxes which are designed to mount, but do not include electrical devices such as switches, jacks, fuseholders, terminals and/or terminal boards, see JUNCTION BOX. See also INTERCONNECTING CABINET; CONTROL (as modified); PANEL (1) (as modified); RELAY ASSEMBLY; PANEL, POWER DISTRIBUTION; SWITCHBOARD (as modified) and PANEL, FUSE. Excludes CONNECTOR-SWITCH.
Part Alternates: 10950250, 6110-00-493-8952, 00-493-8952, 6110004938952, 004938952
Electric Wire, and Power and Distribution Equipment | Electrical Control Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 07 OCT 1970 | 00-493-8952 | 19735 ( DISTRIBUTION BOX ) |

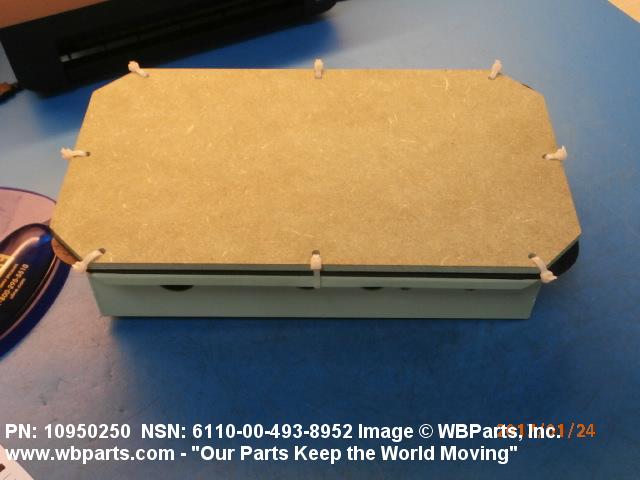

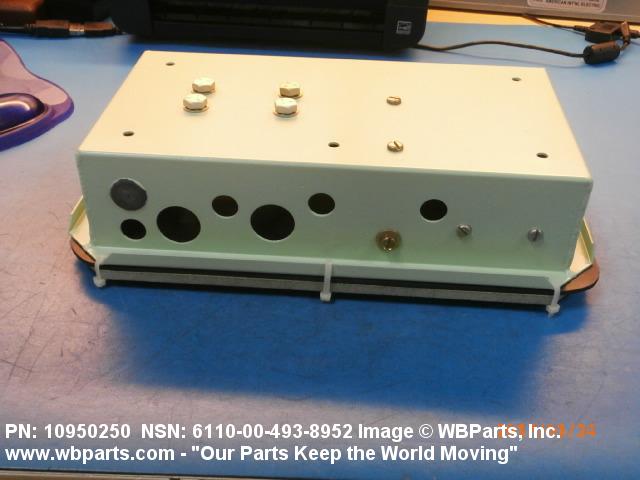

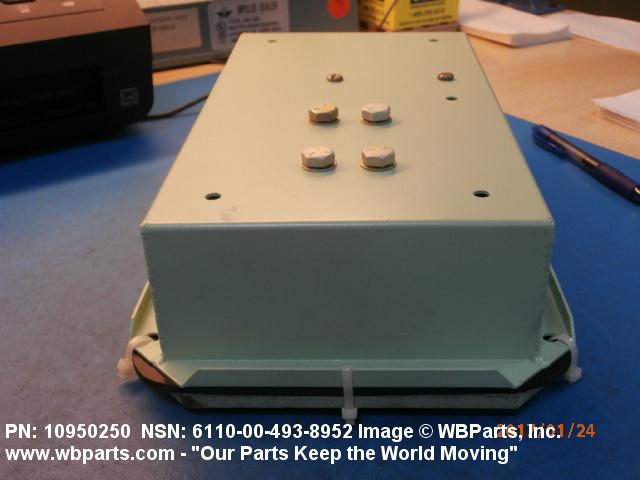

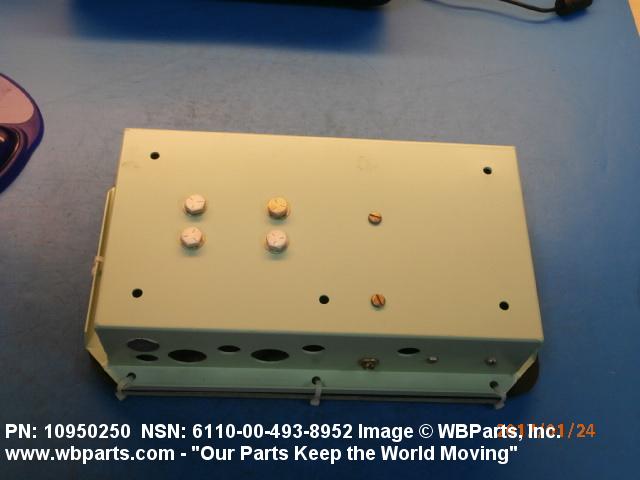

Drawings & Photos | NSN 6110-00-493-8952
Demand History | NSN 6110-00-493-8952
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6110-00-493-8952 | 2017-02-53 | 1 | DIBBS |
| 10950250 | 2017-01-03 | 1 | United States |
| 10950250 | 2017-01-02 | 1 | United States |
| 10950250 | 2016-12-355 | 1 | United States |
| 6110-00-493-8952 | 2016-11-321 | 2 | DIBBS |
| 6110-00-493-8952 | 2015-08-239 | 2 | DIBBS |
| 6110-00-493-8952 | 2008-01-10 | 23 | DIBBS |
| 6110-00-493-8952 | 2007-06-165 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6110-00-493-8952
Technical Data | NSN 6110-00-493-8952
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6A RECTANGULAR, SURFACE MOUNTING |

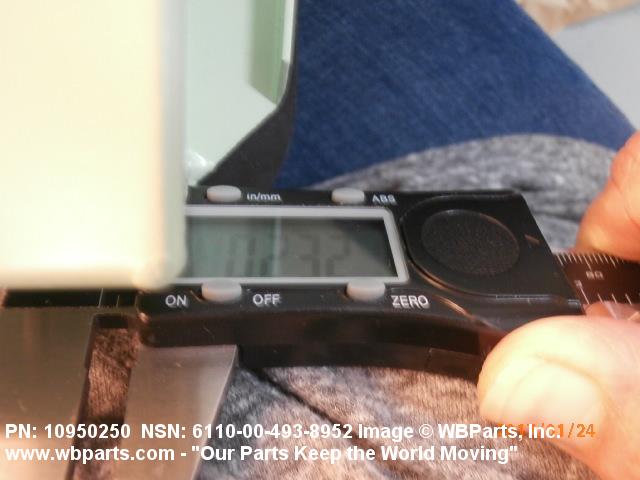

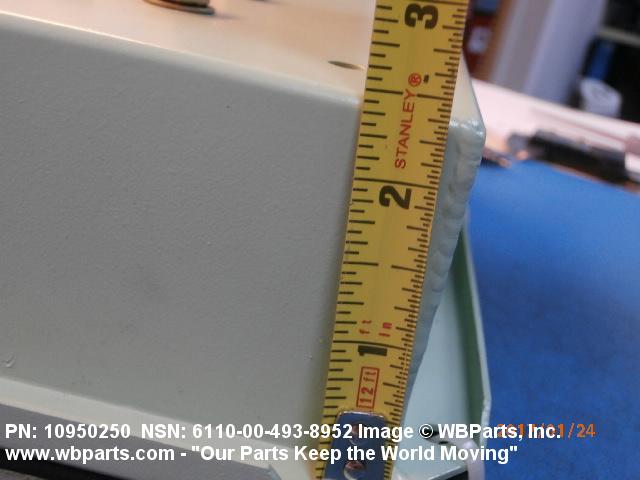

| OVERALL DEPTH | 2.500 INCHES NOMINAL |

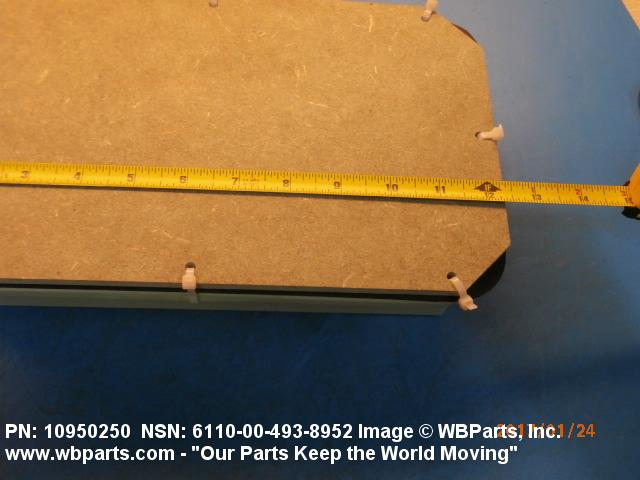

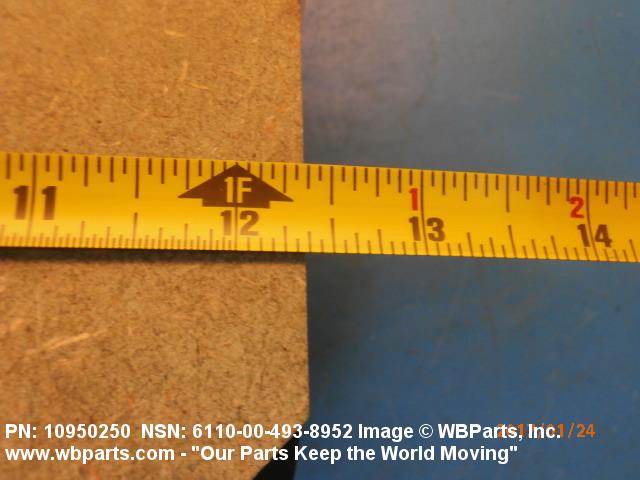

| OVERALL HEIGHT | 12.344 INCHES MINIMUM AND 12.406 INCHES MAXIMUM |

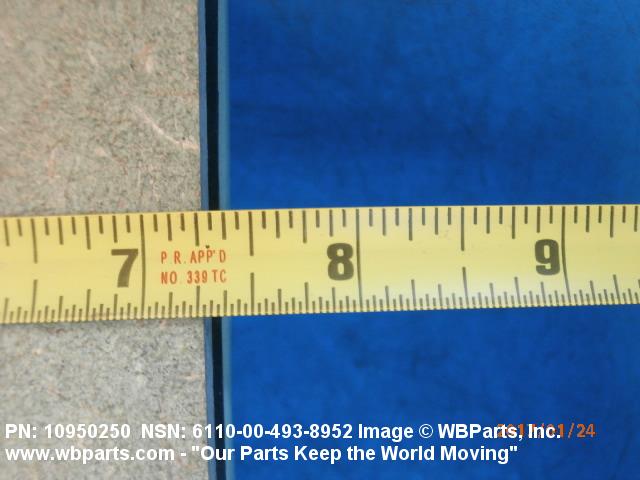

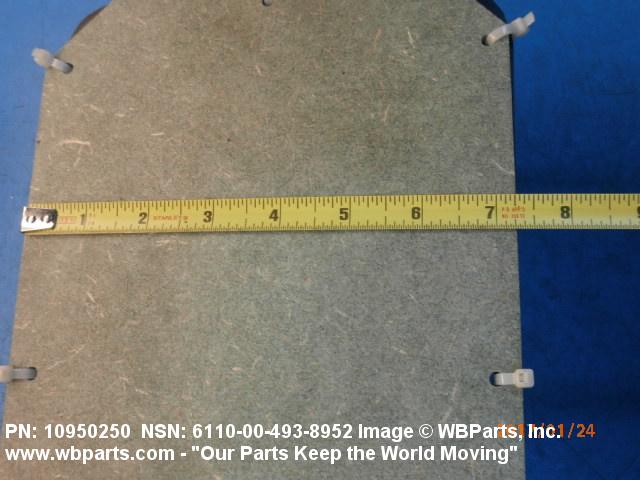

| OVERALL WIDTH | 7.344 INCHES MINIMUM AND 7.406 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY,QQ-A-561,ALLOY 1100,TEMPER 0 AND ALUMINUM ALLOY,MIL-A-19070,ALLOY 5086,TEMPER H112 OR H32 AND ALUMINUM ALLOY,QQ-A-318,ALLOY 5052,TEMPER 0 |
| ENTRANCE TYPE AND QUANTITY | 10 PREPUNCHED HOLE |

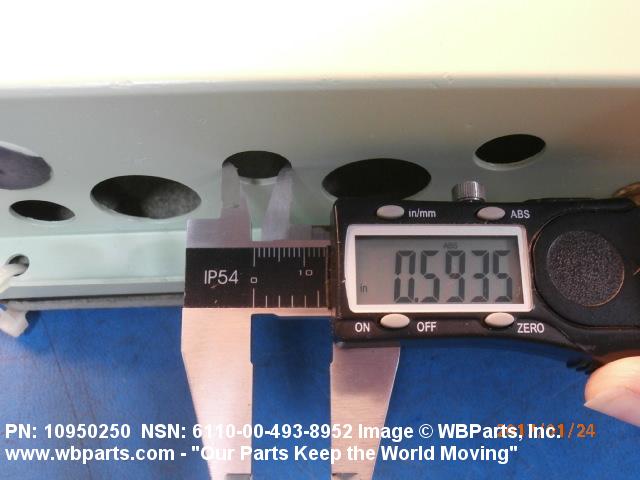

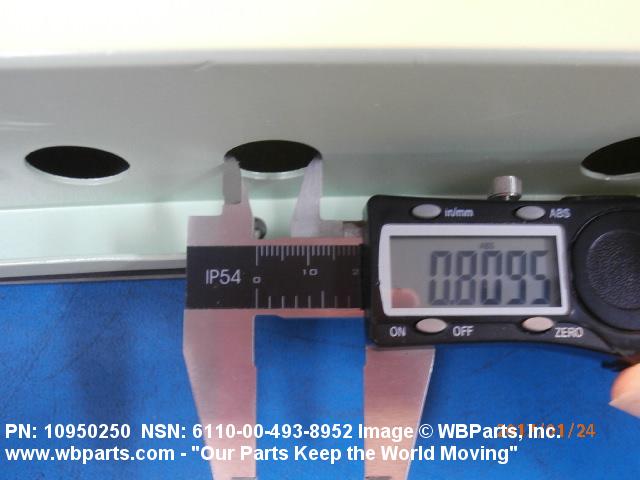

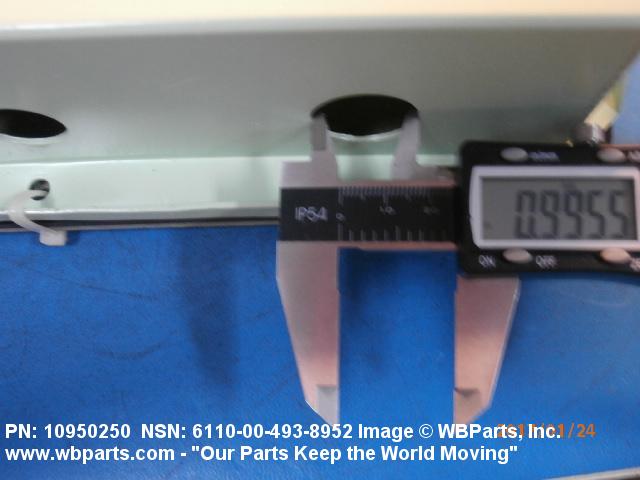

| CABLE ENTRANCE DIAMETER | 0.593 INCHES NOMINAL AND 0.593 INCHES NOMINAL AND 0.593 INCHES NOMINAL AND 0.593 INCHES NOMINAL AND 0.625 INCHES NOMINAL AND 0.812 INCHES NOMINAL AND 0.812 INCHES NOMINAL AND 1.062 INCHES NOMINAL AND 1.062 INCHES NOMINAL AND 1.062 INCHES NOMINAL |
| CABLE OPENING LENGTH | ANY ACCEPTABLE |
| CABLE OPENING WIDTH | ANY ACCEPTABLE |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| FEATURES PROVIDED | COVER |
Restrictions/Controls & Freight Information | NSN 6110-00-493-8952
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
