NSN 6105-01-290-7053 10026108, 100261-08, 01-290-7053
Product Details | ALTERNATING CURRENT MOTOR
6105-01-290-7053 A motor which is designed for operation from an alternating current source. See also MOTOR, CONTROL.
Part Alternates: 10026108, 100261-08, 6105-01-290-7053, 01-290-7053, 6105012907053, 012907053
Electric Wire, and Power and Distribution Equipment | Motors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 15 DEC 1988 | 01-290-7053 | 00530 ( MOTOR, ALTERNATING CURRENT ) |

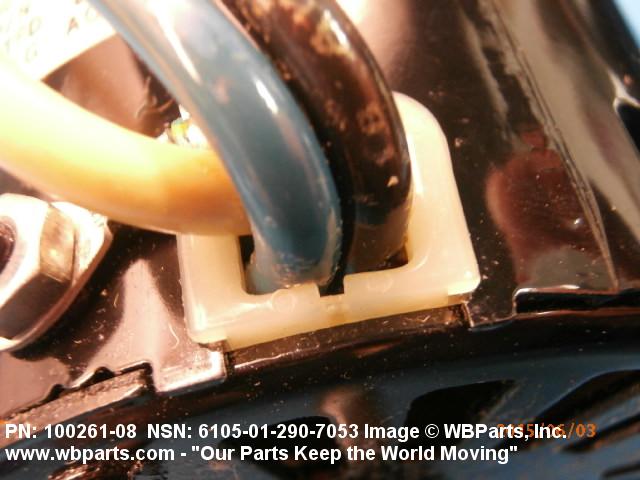

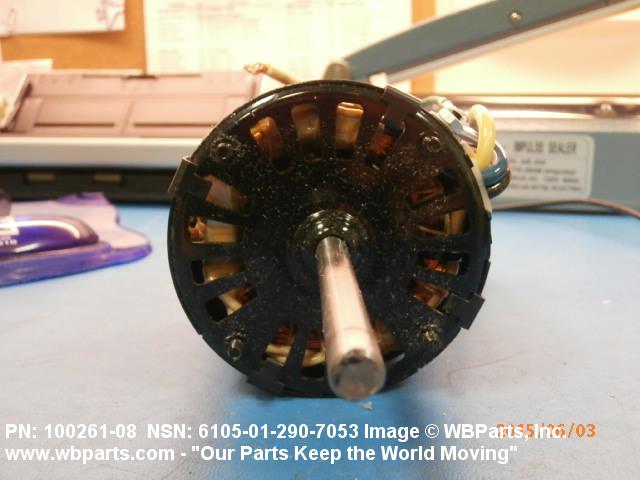

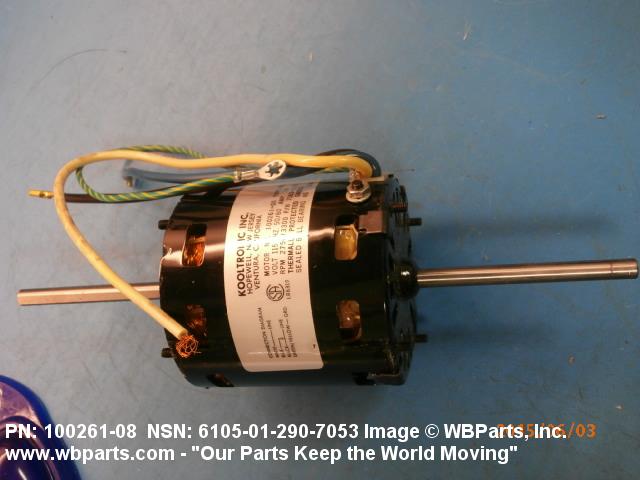

Drawings & Photos | NSN 6105-01-290-7053
Demand History | NSN 6105-01-290-7053
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6105-01-290-7053 | 2015-05-126 | 2 | United States |
| 10026108 | 2014-06-169 | 1 | US |
Cross Reference | NSN 6105-01-290-7053
| Part Number | Cage Code | Manufacturer |
|---|---|---|

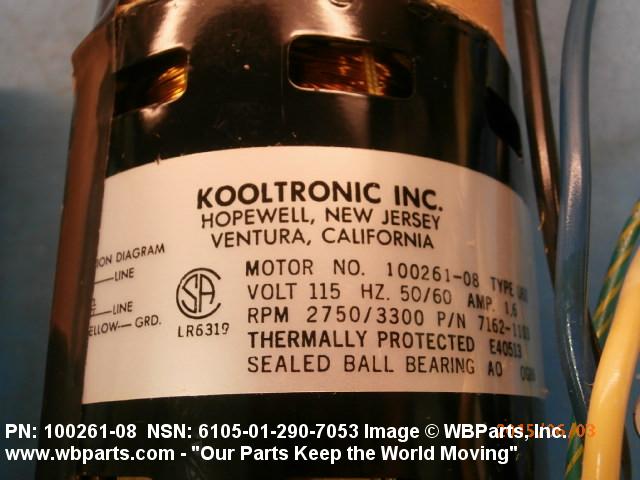

| 100261-08 | 06223 | KOOLTRONIC INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6105-01-290-7053
Related Products | NSN 6105-01-290-7053
Technical Data | NSN 6105-01-290-7053
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 10.530 INCHES |

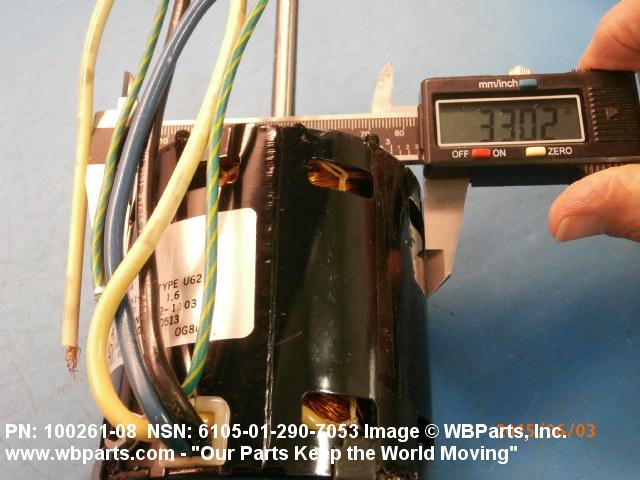

| OVERALL WIDTH | 3.340 INCHES |
| OVERALL HEIGHT | 3.340 INCHES |

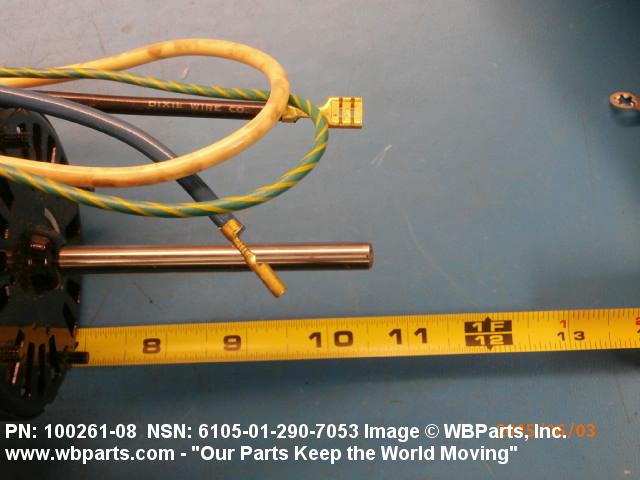

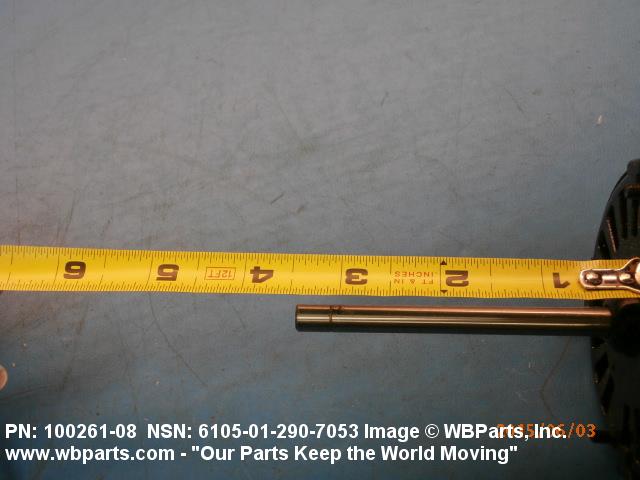

| LENGTH OF SHAFT FROM HOUSING | 3.520 INCHES FIRST END 3.500 INCHES SECOND END |
| MOUNTING METHOD | FACE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY CIRCLE DIAMETER | 2.850 INCHES |
| CURRENT RATING IN AMPS | 1.550 SINGLE OR 3.100 SINGLE INPUT |
| CURRENT RATING METHOD | LOAD AND NO LOAD |
| FREQUENCY IN HERTZ | 50.0 OR 60.0 INPUT |
| CONNECTION TYPE AND VOLTAGE RATING IN VOLTS | 115.0 LINE TO NEUTRAL SINGLE INPUT |
| POWER RATING | 170.0 WATTS OUTPUT |

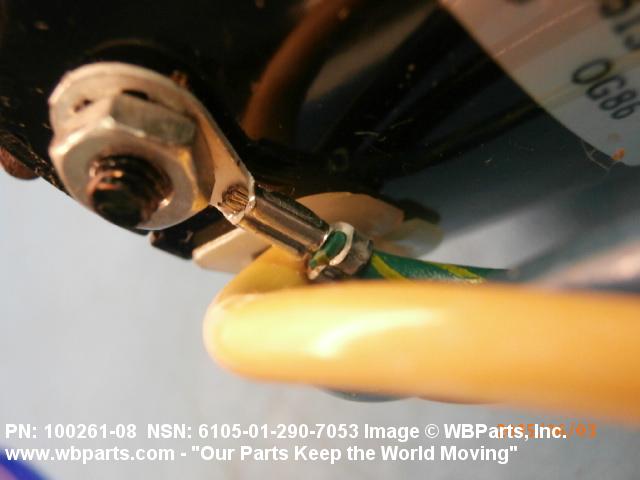

| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |

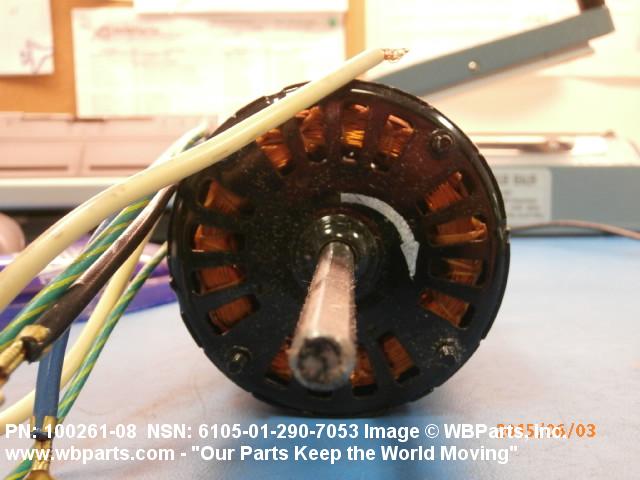

| SHAFT ROTATION DIRECTION | CLOCKWISE FIRST END CLOCKWISE SECOND END |
| ROTOR SPEED RATING IN RPM | 3375.0 SINGLE NO LOAD AND 3300.0 SINGLE FULL LOAD |
| SHAFT END CHARACTERISTIC | A9 SINGLE STYLE FIRST END A28 FOURTH STYLE SECOND END |
Restrictions/Controls & Freight Information | NSN 6105-01-290-7053
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | ZB | Belgium ZC ZD |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6105-01-290-7053
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
