Product Details | FIBER OPTIC CONNECTOR ADAPTER

6060-01-548-1722 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.

Part Alternates: ADPKDLCCCYRFCLS, ADP-KDLC-CCYRF-CLS, 6060-01-548-1722, 01-548-1722, 6060015481722, 015481722

Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors

Supply Group (FSG) NSN Assign. NIIN
60 12 FEB 2007 01-548-1722

Drawings & Photos | NSN 6060-01-548-1722


Cross Reference | NSN 6060-01-548-1722

Part Number Cage Code Manufacturer
ADP-KDLC-CCYRF-CLS 22358 CORNING CABLE SYSTEMS LLC CAC EQUIPMENT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6060-01-548-1722

Technical Data | NSN 6060-01-548-1722

Characteristic Specifications

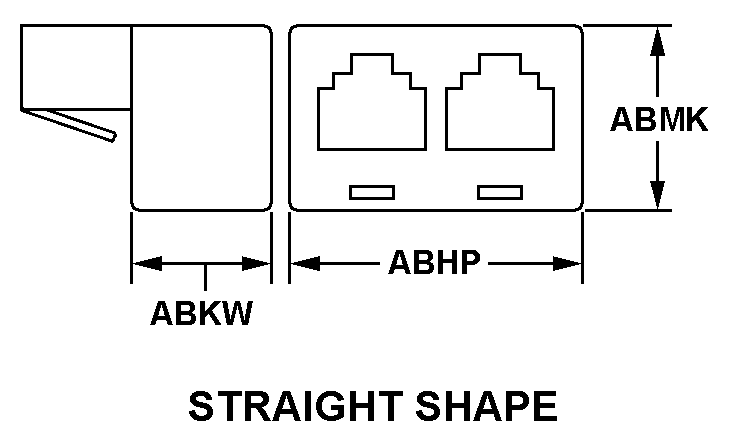

BODY STYLE 40N STRAIGHT SHAPE
OVERALL LENGTH 29.2 MILLIMETERS NOMINAL
OVERALL HEIGHT 9.3 MILLIMETERS NOMINAL

Restrictions/Controls & Freight Information | NSN 6060-01-548-1722

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
