Product Details | FIBER OPTIC CONNECTOR ADAPTER

6060-01-530-2309 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.

Part Alternates: 86167-1010, 6060-01-530-2309, 01-530-2309, 6060015302309, 861671010, 015302309

Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors

Supply Group (FSG) NSN Assign. NIIN
60 18 MAY 2005 01-530-2309

Drawings & Photos | NSN 6060-01-530-2309


Cross Reference | NSN 6060-01-530-2309

Part Number Cage Code Manufacturer
86167-1010 27264 MOLEX INCORPORATED DBA USE CAGE CODE 1UX99 FOR

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6060-01-530-2309

Technical Data | NSN 6060-01-530-2309

Characteristic Specifications

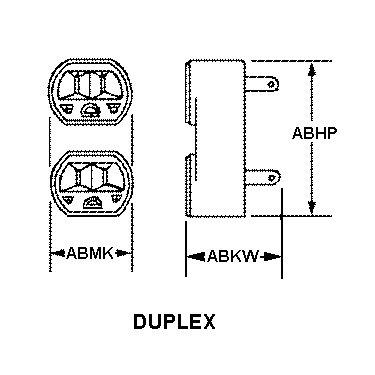

BODY STYLE 17N DUPLEX
OVERALL LENGTH 1.366 INCHES NOMINAL
OVERALL HEIGHT 1.112 INCHES NOMINAL
OVERALL WIDTH 0.390 INCHES NOMINAL
MOUNTING METHOD FLANGE
SHELL TYPE SOLID
MATING END QUANTITY 2
CONTACT POSITION ARRANGEMENT STYLE ABCV SC ALL MATING ENDS
INCLUDED CONTACT QUANTITY 1 ALL MATING ENDS ALL CONTACT GROUPINGS
SPECIAL FEATURES SC TO ST DUPLEX; BEIGE BODY; PHOSPHOR BRONZE ALIGNMENT SLEEVE

Restrictions/Controls & Freight Information | NSN 6060-01-530-2309

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
