NSN 6060-01-502-9067 M28876/15-BD, M28876/15-BDW, M2887615BD
Product Details | FIBER OPTIC CONNECTOR COVER
6060-01-502-9067 A device specifically designed to fully or partially inclose a fiber optic connector and protect its mating end from dust, moisture, mechanical or other damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and COVER, ELECTRICAL CONNECTOR.
Part Alternates: M28876/15-BD, M28876/15-BDW, M2887615BD, M2887615BDW, MIL-C-28876/15, MILC2887615, MIL-PRF-28876/15, MILPRF2887615, 6060-01-502-9067, 01-502-9067, 6060015029067, 015029067
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | 25 NOV 2002 | 01-502-9067 | 45053 ( COVER, FIBER OPTIC CONNECTOR ) |

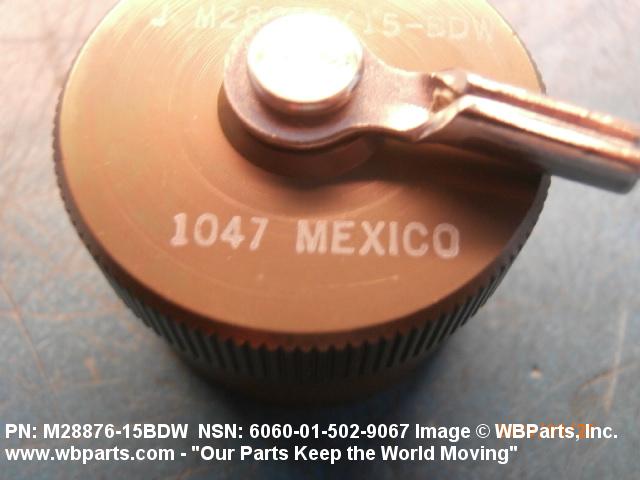

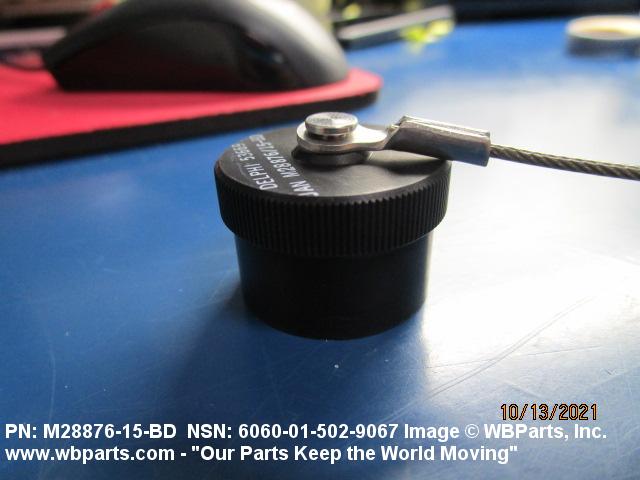

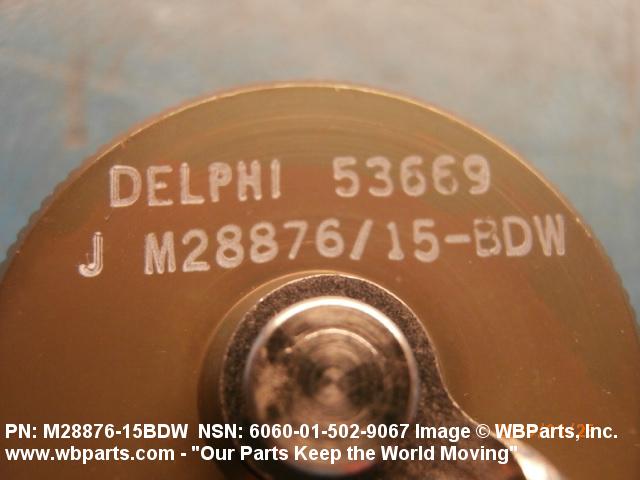

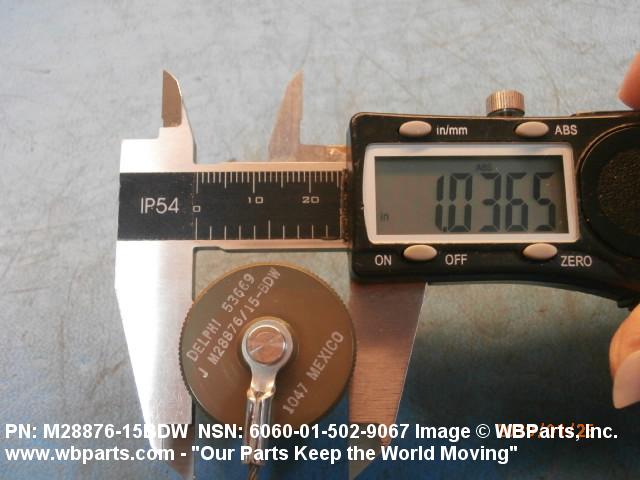

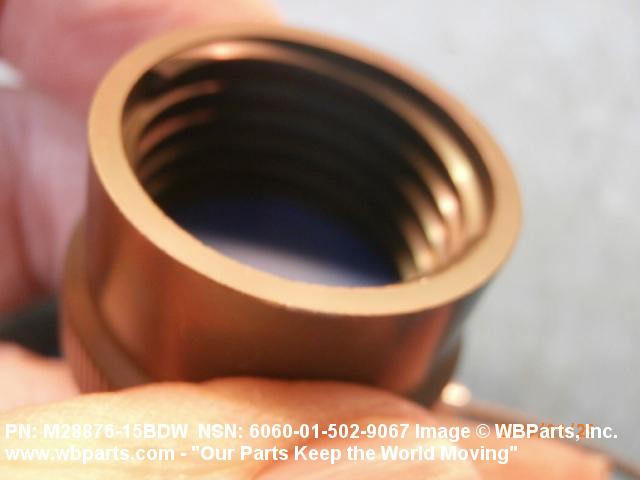

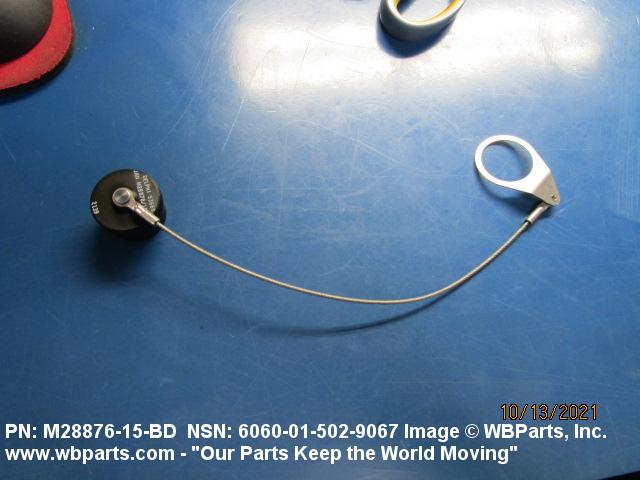

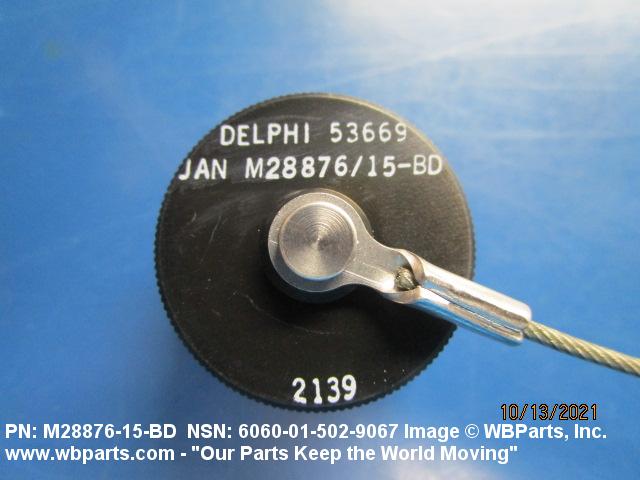

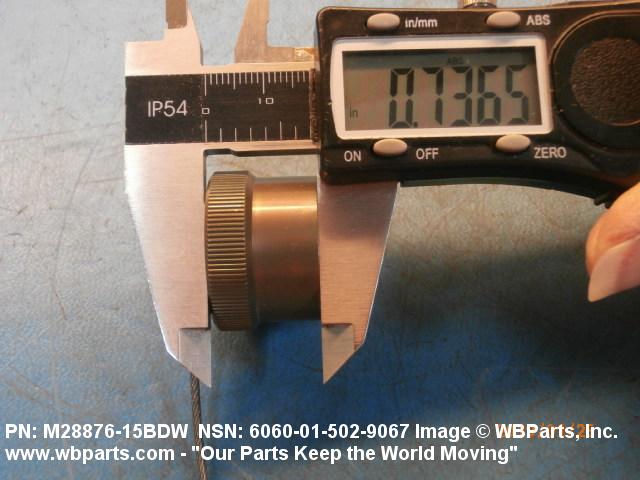

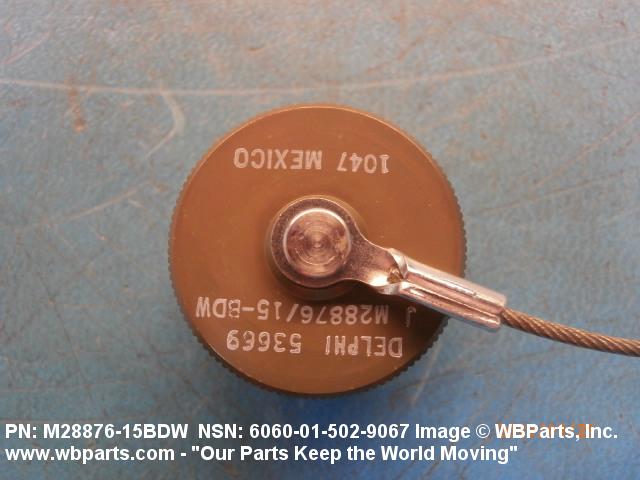

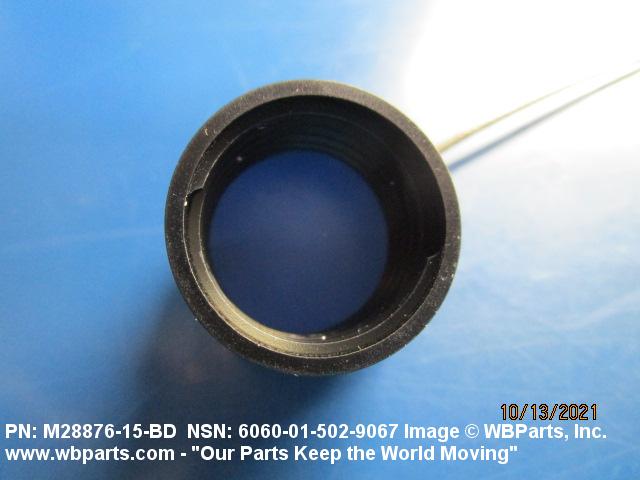

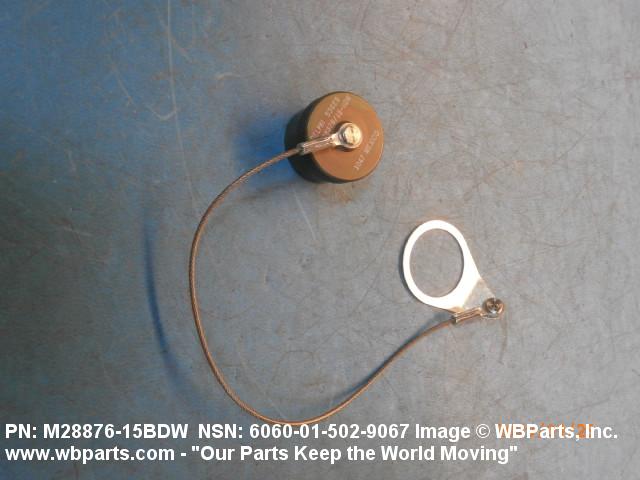

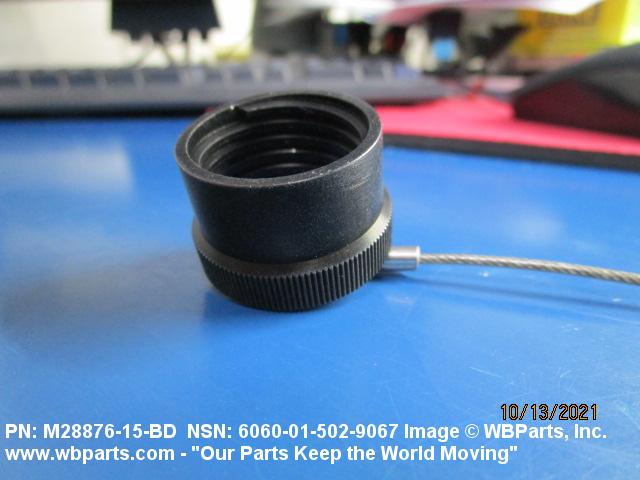

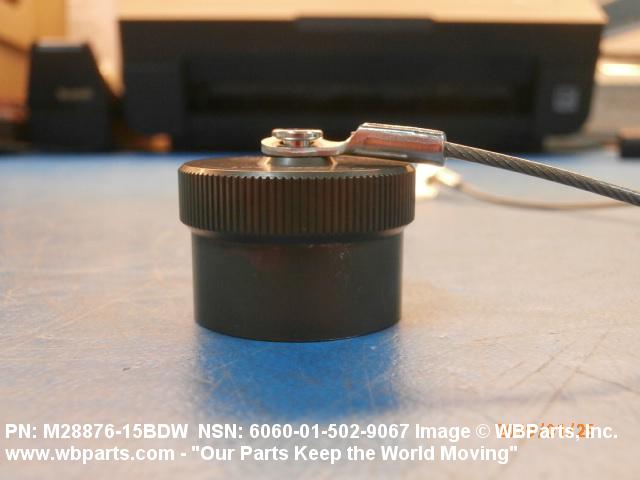

Drawings & Photos | NSN 6060-01-502-9067
Demand History | NSN 6060-01-502-9067
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6060-01-502-9067 | 2023-04-118 | 6 | US |
| 6060-01-502-9067 | 2022-11-317 | 257 | DIBBS |
| M2887615BD | 2022-04-119 | 2 | United States |
| M2887615BD | 2022-01-29 | 60 | ES |
| M2887615BD | 2021-10-278 | 10 | United States |
| 6060-01-502-9067 | 2021-05-131 | 12 | DIBBS |
| 6060-01-502-9067 | 2021-04-115 | 153 | DIBBS |
| 6060-01-502-9067 | 2020-05-135 | 36 | DIBBS |
| 6060-01-502-9067 | 2019-12-346 | 45 | DIBBS |
| M2887615BDW | 2019-11-316 | 41 | US |
| 6060-01-502-9067 | 2018-12-364 | 34 | DIBBS |
| 6060-01-502-9067 | 2018-12-347 | 1 | us |
| 6060-01-502-9067 | 2018-08-221 | 102 | DIBBS |
| 6060-01-502-9067 | 2017-02-47 | 172 | DIBBS |
| 6060-01-502-9067 | 2015-01-27 | 48 | DIBBS |
| 6060-01-502-9067 | 2014-08-219 | 24 | DIBBS |
| 6060-01-502-9067 | 2014-05-122 | 11 | DIBBS |
| 6060-01-502-9067 | 2012-11-310 | 14 | DIBBS |
| 6060-01-502-9067 | 2012-06-153 | 9 | DIBBS |
| 6060-01-502-9067 | 2011-07-195 | 2 | DIBBS |
| 6060-01-502-9067 | 2011-07-195 | 8 | DIBBS |
| M2887615BD | 2010-09-245 | 12 | US |
| 6060-01-502-9067 | 2009-07-184 | 22 | DIBBS |
| 6060-01-502-9067 | 2009-07-184 | 53 | DIBBS |
| 6060-01-502-9067 | 2009-05-124 | 25 | DIBBS |
| 6060-01-502-9067 | 2008-07-188 | 1 | DIBBS |
Cross Reference | NSN 6060-01-502-9067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M28876/15-BD | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M28876/15-BDW | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-28876/15 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-28876/15 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6060-01-502-9067
Related Products | NSN 6060-01-502-9067
Technical Data | NSN 6060-01-502-9067
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1A INTERNAL THREAD W/CHAIN OR ROPE |

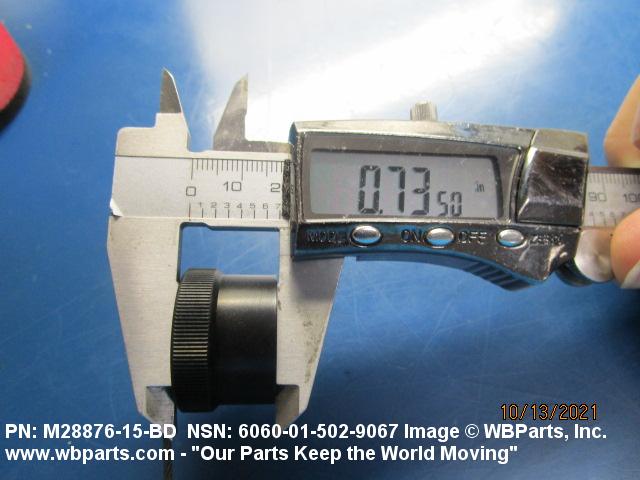

| BODY HEIGHT | 0.780 INCHES MAXIMUM |

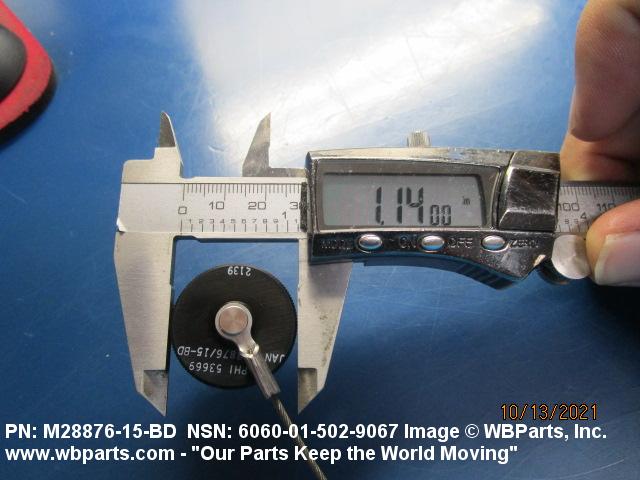

| OVERALL DIAMETER | 1.141 INCHES MAXIMUM |
| MATERIAL | STEEL, CORROSION RESISTING AND ALUMINUM ALLOY AND RUBBER, SILICONE BASE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE AND NICKEL, ELECTROLESS |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED HOLE |
| THREAD SERIES DESIGNATOR | DOUBLE STUB |

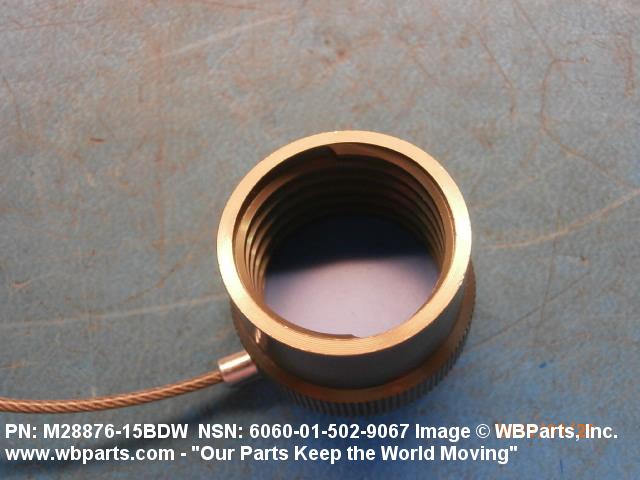

| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| FURNISHED ITEMS | CAP W/WIRE ROPE |

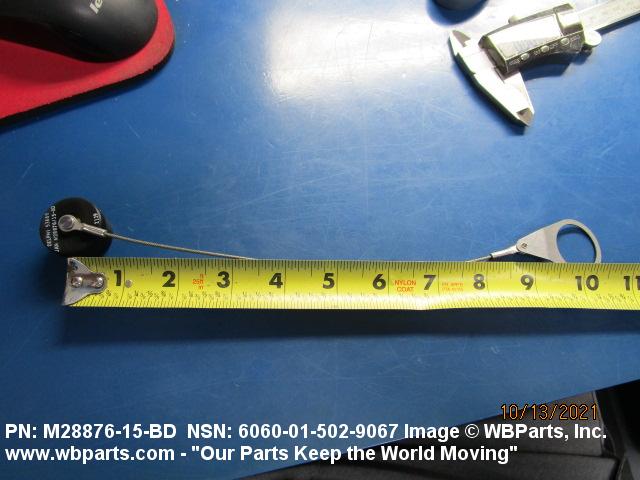

| ATTACHMENT FEATURE LENGTH | 8.500 INCHES MINIMUM AND 9.500 INCHES MAXIMUM |

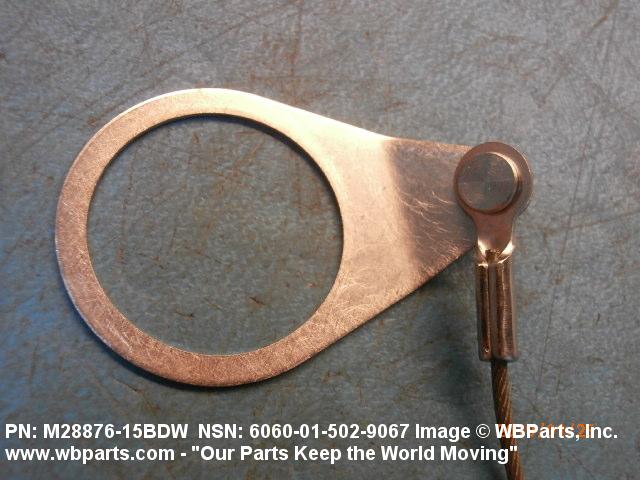

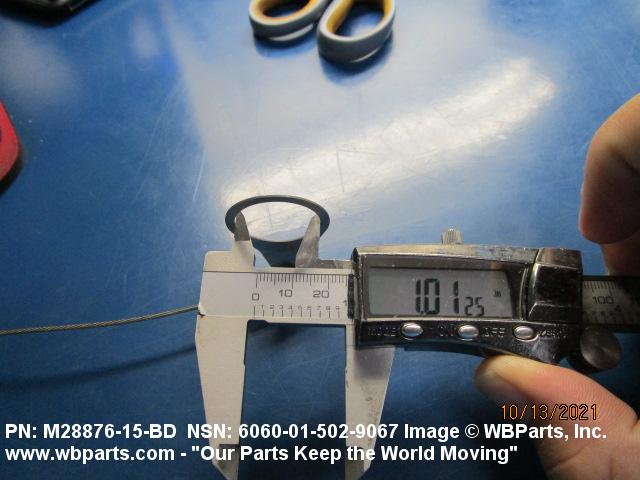

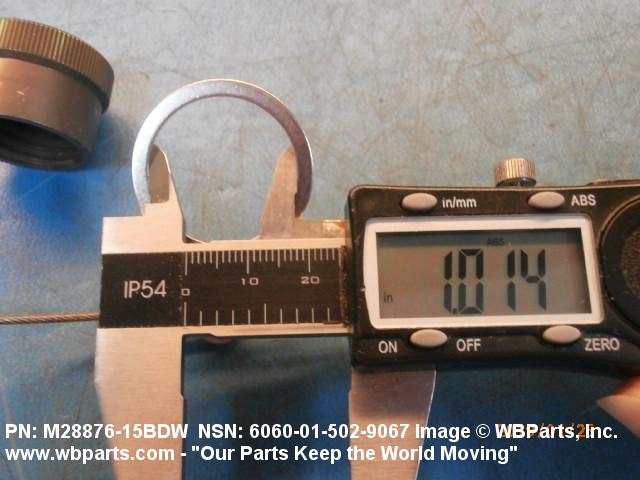

| EYE INSIDE DIAMETER | 1.005 INCHES MINIMUM AND 1.025 INCHES MAXIMUM |
| SEAL TYPE | GASKET |
| SEAL MATERIAL | RUBBER, SILICONE BASE |
| SIZE DESIGNATION | 13 |
| III END ITEM IDENTIFICATION | HAWKEYE E-2C AIRCRAFT |
| III ENVIRONMENTAL PROTECTION | DUSTPROOF |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | RECEPTACLE DUST COVER |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-28876/15 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28876/15-BD |
Restrictions/Controls & Freight Information | NSN 6060-01-502-9067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6060-01-502-9067
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
