NSN 6060-01-500-0613 M28876/1C1S4, M288761C1S4, H6772301345
Product Details | FIBER OPTIC RECEPTACLE CONNECTOR
6060-01-500-0613 A fiber optic fitting with or without contact(s) constructed to be affixed to a fiber optic cable to join with another fiber optic connector(s) and is designed to be mounted on a bulkhead, wall, chassis, panel, or PRINTED WIRING BOARD. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, RECEPTACLE, ELECTRICAL; LAMPHOLDER; JACK, TELEPHONE; SOCKET (as modified); DUMMY CONNECTOR, RECEPTACLE; JACK ASSEMBLY, TIP; and PLUG ASSEMBLY, TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).
Part Alternates: M28876/1C1S4, M288761C1S4, H6772301345, H677-2301-345, MIL-PRF-28876/1 , MILPRF288761, 569-7067769-345, 6060-01-500-0613, 01-500-0613, 5697067769345, 6060015000613, 015000613
Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 60 | 13 AUG 2002 | 01-500-0613 | 33907 ( CONNECTOR, RECEPTACLE, FIBER OPTIC ) |
Drawings & Photos | NSN 6060-01-500-0613
Demand History | NSN 6060-01-500-0613
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6060-01-500-0613 | 2024-05-123 | 10 | DIBBS |
| 6060-01-500-0613 | 2023-08-218 | 6 | DIBBS |
| 6060-01-500-0613 | 2022-07-209 | 6 | DIBBS |
| 6060-01-500-0613 | 2022-05-132 | 6 | DIBBS |
| 6060-01-500-0613 | 2021-04-109 | 7 | DIBBS |
| 6060-01-500-0613 | 2021-04-98 | 7 | DIBBS |
| 6060-01-500-0613 | 2016-07-200 | 7 | DIBBS |
| 6060-01-500-0613 | 2015-05-132 | 2 | DIBBS |
| 6060-01-500-0613 | 2015-02-43 | 2 | DIBBS |
| 6060-01-500-0613 | 2014-03-79 | 3 | DIBBS |
| 6060-01-500-0613 | 2012-05-151 | 2 | DIBBS |
| 6060-01-500-0613 | 2011-02-34 | 2 | DIBBS |
| 6060-01-500-0613 | 2008-11-317 | 5 | DIBBS |
Cross Reference | NSN 6060-01-500-0613
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6060-01-500-0613
Technical Data | NSN 6060-01-500-0613
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5G STRAIGHT SHAPE, EXTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 1.990 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.236 INCHES MINIMUM AND 1.278 INCHES MAXIMUM |
| OVERALL WIDTH | 1.236 INCHES MINIMUM AND 1.278 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.968 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.968 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.878 INCHES MINIMUM AND 0.898 INCHES MAXIMUM |
| MOUNTING METHOD | FLANGE |
| SHELL MATERIAL | ALUMINUM ALLOY OR STEEL CORROSION RESISTING |
| SHELL SURFACE TREATMENT | CADMIUM OR PASSIVATE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 53.0 |
| MATING END QUANTITY | 1 |

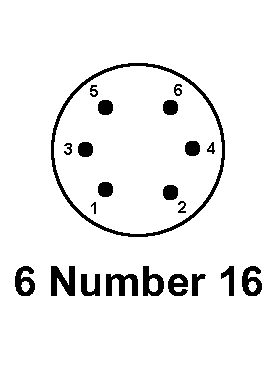

| CONTACT POSITION ARRANGEMENT STYLE | AGAF 6 NUMBER 16 SINGLE MATING END |
| INSERT MATERIAL | RUBBER FLUOROSILICONE CLASS FQ SINGLE MATING END |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | WEATHER RESISTANT |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28876/1C1S4 |
