6060-01-486-7514 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.

Part Alternates: 504013, 5040131, 504013-1, 7182085-00, 6060-01-486-7514, 01-486-7514, 6060014867514, 014867514, 718208500

Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors

Supply Group (FSG) NSN Assign. NIIN
60 13 JUL 2001 01-486-7514

Drawings & Photos | NSN 6060-01-486-7514


Cross Reference | NSN 6060-01-486-7514

Part Number Cage Code Manufacturer
504013 00779 TYCO ELECTRONICS CORPORATION
504013-1 00779 TYCO ELECTRONICS CORPORATION
7182085-00 06401 L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATIONS SYSTEMS WEST

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6060-01-486-7514

Technical Data | NSN 6060-01-486-7514

Characteristic Specifications

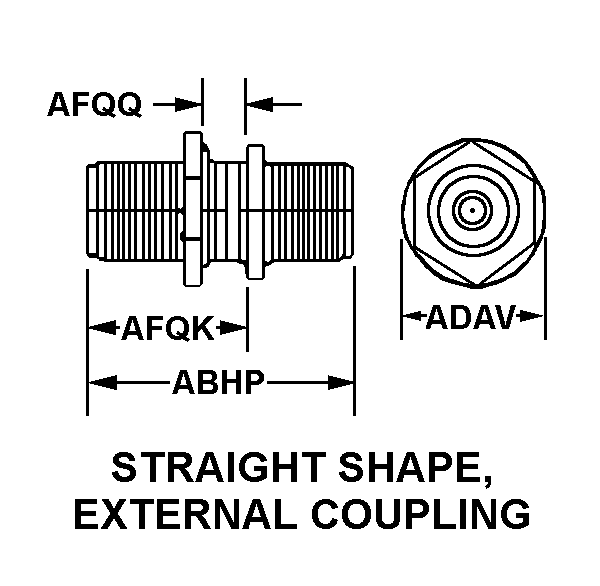

BODY STYLE 12N STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH 14.800 INCHES MAXIMUM
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE 8.500 INCHES MAXIMUM
MOUNTING METHOD JAM MUT
CONNECTOR LOCKING METHOD EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE COUPLING FACILITY
THREAD SERIES DESIGNATOR ISO M
NOMINAL THREAD SIZE 8.0 MILLIMETERS
THREAD TOLERANCE CLASS 6G EXTERNAL
THREAD DIRECTION RIGHT-HAND
SHELL MATERIAL COPPER ALLOY
SHELL SURFACE TREATMENT NICKEL
POLARIZATION METHOD KEY, MULTIPLE KEY GROOVE
MATING END QUANTITY 2

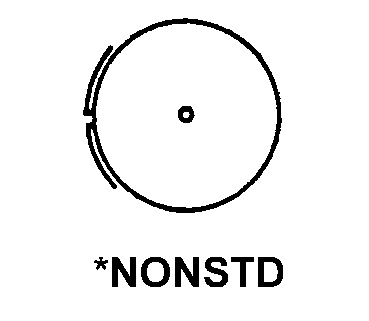

CONTACT POSITION ARRANGEMENT STYLE ABAY NONSTD ALL MATING ENDS
INSERT MATERIAL COPPER ALLOY ALL MATING ENDS
III END ITEM IDENTIFICATION MK74MOD1,VEMS
