Product Details | FIBER OPTIC CONNECTOR ADAPTER

6060-01-468-7286 An adapter which provides facilities for joining two or more fiber optic connectors, which design or functions will not normally warrant their junction. It is not designed for permanent attachment to a fiber optic cable. The physical shape of a fiber optic connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER (3), CONNECTOR, FIBER OPTIC. Excludes ADAPTER, CONNECTOR; ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPBASE TO CONNECTOR; ADAPTER, CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. See also COUPLER, FIBER OPTIC. For items designed to make a permanent connection between optical conductors use item name SPLICE, FIBER OPTIC CONDUCTOR.

Part Alternates: 40819201, 408-192-01, 6060-01-468-7286, 01-468-7286, 6060014687286, 014687286

Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors

Supply Group (FSG) NSN Assign. NIIN
60 20 OCT 1999 01-468-7286

Drawings & Photos | NSN 6060-01-468-7286


Cross Reference | NSN 6060-01-468-7286

Part Number Cage Code Manufacturer
408-192-01 26742 METHODE ELECTRONICS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6060-01-468-7286

Technical Data | NSN 6060-01-468-7286

Characteristic Specifications

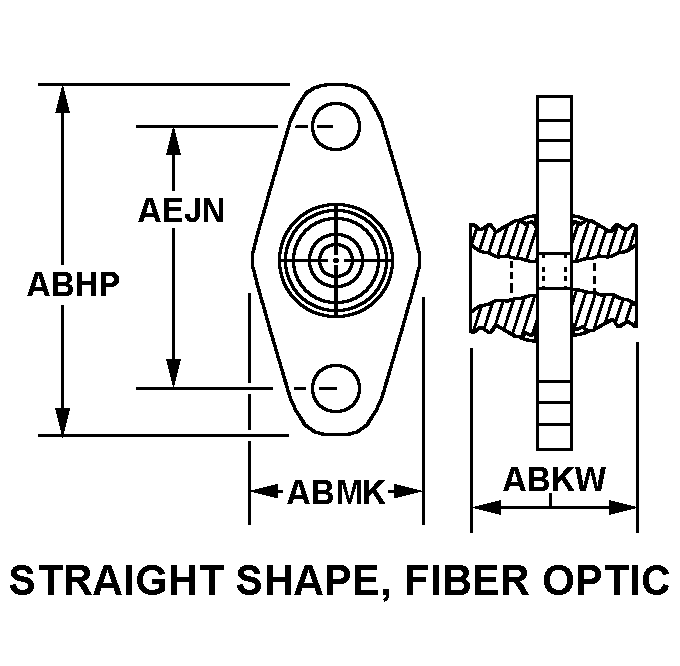

BODY STYLE 29N STRAIGHT SHAPE, FIBER OPTIC
OVERALL LENGTH 0.866 INCHES NOMINAL
OVERALL HEIGHT 0.874 INCHES NOMINAL
OVERALL WIDTH 0.366 INCHES NOMINAL
DISTANCE BETWEEN MOUNTING FACILITY CENTERS 0.707 INCHES NOMINAL
MOUNTING METHOD FLANGE
UNTHREADED MOUNTING HOLE DIAMETER 0.092 INCHES NOMINAL
MATING END QUANTITY 2
SPECIAL FEATURES ENDS CONFORM TO M8 X 0.75 THREAD TO 6 BY 4 TUBE SIZE. COLOR IS BLUE, SLEEVE MATERIAL IS ZIRCONIA CERAMIC
III END ITEM IDENTIFICATION CONNECTOR ASSY

Restrictions/Controls & Freight Information | NSN 6060-01-468-7286

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
