Product Details | FIBER OPTIC RECEPTACLE CONNECTOR

6060-01-350-9887 A fiber optic fitting with or without contact(s) constructed to be affixed to a fiber optic cable to join with another fiber optic connector(s) and is designed to be mounted on a bulkhead, wall, chassis, panel, or PRINTED WIRING BOARD. It may or may not include facilities for holding a device, such as a semiconductor, but does not include the device itself. Excludes CONNECTOR, RECEPTACLE, ELECTRICAL; LAMPHOLDER; JACK, TELEPHONE; SOCKET (as modified); DUMMY CONNECTOR, RECEPTACLE; JACK ASSEMBLY, TIP; and PLUG ASSEMBLY, TIP. See also LEAD, ELECTRICAL; LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified).

Part Alternates: M28876/2C13S2, M288762C13S2, MIL-C-28876/2C, MILC288762C, 6060-01-350-9887, 01-350-9887, 6060013509887, 013509887

Fiber Optics Materials, Components, Assemblies, and Accessories | Fiber Optic Interconnectors

Supply Group (FSG) NSN Assign. NIIN
60 27 DEC 1991 01-350-9887

Drawings & Photos | NSN 6060-01-350-9887


Cross Reference | NSN 6060-01-350-9887

Part Number Cage Code Manufacturer
M28876/2C13S2 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-28876/2C 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6060-01-350-9887

Technical Data | NSN 6060-01-350-9887

Characteristic Specifications

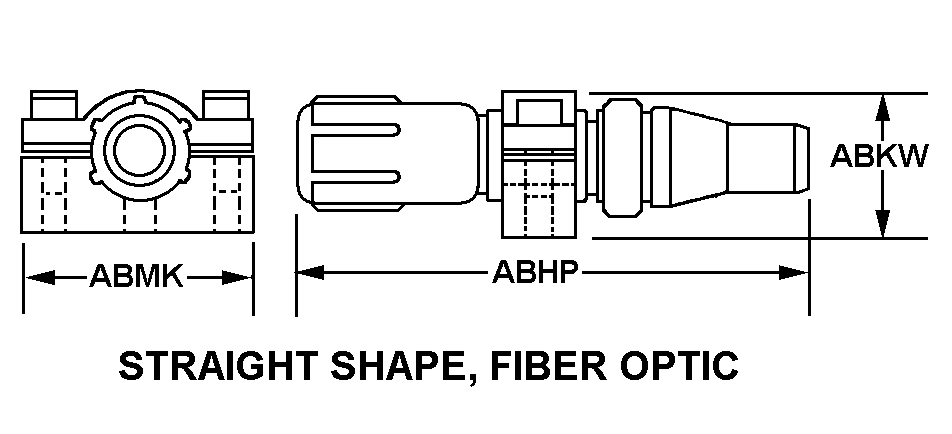

BODY STYLE 43G STRAIGHT SHAPE, FIBER OPTIC
OVERALL HEIGHT 1.255 INCHES MAXIMUM
OVERALL WIDTH 1.278 INCHES NOMINAL
MATING END QUANTITY 2
SPECIAL FEATURES KEYING POSITION NUMBER 2
MANUFACTURERS CODE 81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-C-28876/2C
MANUFACTURERS CODE 81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M28876/2C13S2

Restrictions/Controls & Freight Information | NSN 6060-01-350-9887

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
