NSN 5999-01-543-4613 5535W10P002, 01-543-4613, 015434613
Product Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-01-543-4613 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Part Alternates: 5535W10P002, 5999-01-543-4613, 01-543-4613, 5999015434613, 015434613
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 SEP 2006 | 01-543-4613 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-01-543-4613
Cross Reference | NSN 5999-01-543-4613
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5535W10P002 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-543-4613
Technical Data | NSN 5999-01-543-4613
| Characteristic | Specifications |
|---|---|
| OVERALL HEIGHT | 0.020 INCHES NOMINAL |
| OVERALL DIAMETER | 0.200 INCHES NOMINAL |
| COLOR | WHITE |
| MATERIAL | PLASTIC POLYAMIDE |

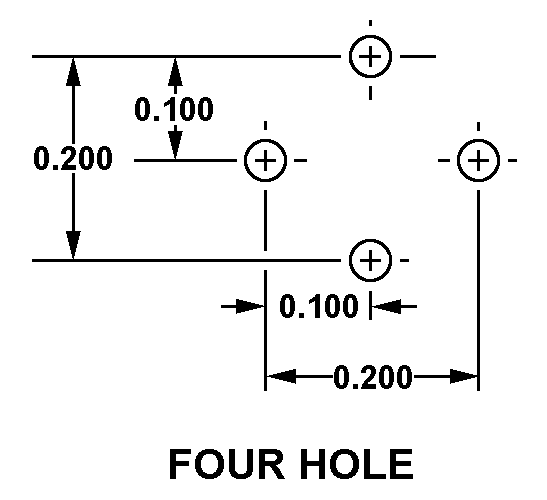

| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | 400B FOUR HOLE |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 4 |
Restrictions/Controls & Freight Information | NSN 5999-01-543-4613
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
