NSN 5999-01-511-9296 M83528/001D003, M83528001D003, MIL-DTL-83528/1D
Product Details | CONDUCTIVE GASKETING MATERIAL
5999-01-511-9296 A nonmetallic material manufactured in various cross-sectional shapes, impregnated with electrically conductive particles. It is designed to provide environmental sealing and electromagnetic interference shielding to electrical and electronic equipment. For items shaped from this material, see SHIELDING GASKET, ELECTRONIC. See also WIRE MESH, KNITTED.
Part Alternates: M83528/001D003, M83528001D003, MIL-DTL-83528/1D, MILDTL835281D, 8863011089, 8863-0110-89, 5999-01-511-9296, 01-511-9296, 5999015119296, 015119296
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 AUG 2003 | 01-511-9296 | 31945 ( GASKETING MATERIAL, CONDUCTIVE ) |

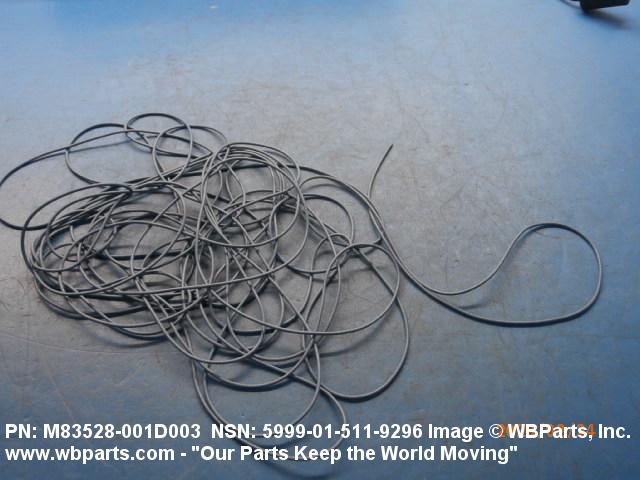

Drawings & Photos | NSN 5999-01-511-9296
Demand History | NSN 5999-01-511-9296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-511-9296 | 2023-07-194 | 20 | IN |
| 5999-01-511-9296 | 2020-02-41 | 30 | United States |
| 5999-01-511-9296 | 2020-01-24 | 43 | DIBBS |
| 5999-01-511-9296 | 2020-01-13 | 43 | DIBBS |
| M83528001D003 | 2017-09-272 | 10 | US |
| 5999-01-511-9296 | 2017-07-186 | 16 | DIBBS |
| 5999-01-511-9296 | 2013-04-105 | 100 | US |
| 5999-01-511-9296 | 2007-03-83 | 5 | DIBBS |
| 5999-01-511-9296 | 2007-02-45 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-511-9296
Technical Data | NSN 5999-01-511-9296
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM AND SILICONE AND SILVER |
| SURFACE TREATMENT | SILVER |
| SHAPE | CIRCULAR |

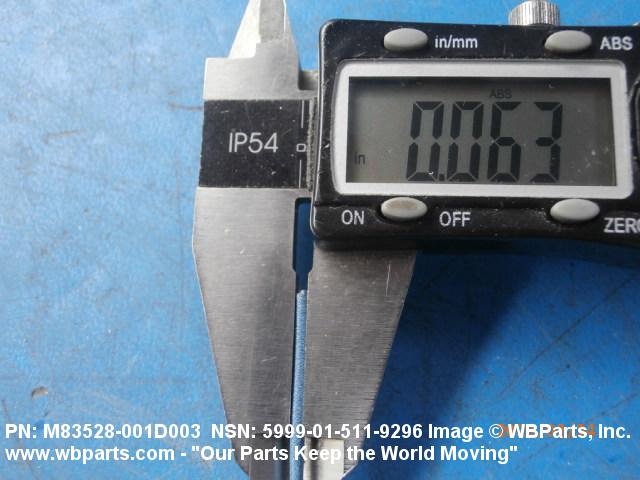

| OVERALL DIAMETER | 0.057 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| PRECIOUS MATERIAL AND LOCATION | EMI/RFI CONDUCTIVE MATERIAL SILVER |
| SPECIAL FEATURES | ITEM LENGTH TO BE SPECIFIED WHEN ORDERING |
| SPECIFICATION/STANDARD DATA | 81349 MIL-DTL-83528/1D GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | WEAPON SYSTEM: NUCLEAR POWER PLANTS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-83528/1D |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83528/001D003 |
Restrictions/Controls & Freight Information | NSN 5999-01-511-9296
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | C | EMI sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194050 | GASKETS/RINGS PLUMBING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5999-01-511-9296
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 FT : Foot |
