NSN 5999-01-474-4007 M87111/5-1A373, M8711151A373, NAS4121373B
Product Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-474-4007 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Part Alternates: M87111/5-1A373, M8711151A373, NAS4121373B, NAS4121-373B, MILH87111, MIL-H-87111, 5999-01-474-4007, 01-474-4007, 5999014744007, 014744007
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 MAY 2000 | 01-474-4007 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-01-474-4007
Demand History | NSN 5999-01-474-4007
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-01-474-4007 | 2007-04-113 | 16 | DIBBS |
| 5999-01-474-4007 | 2006-06-176 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-474-4007
Technical Data | NSN 5999-01-474-4007
| Characteristic | Specifications |
|---|---|

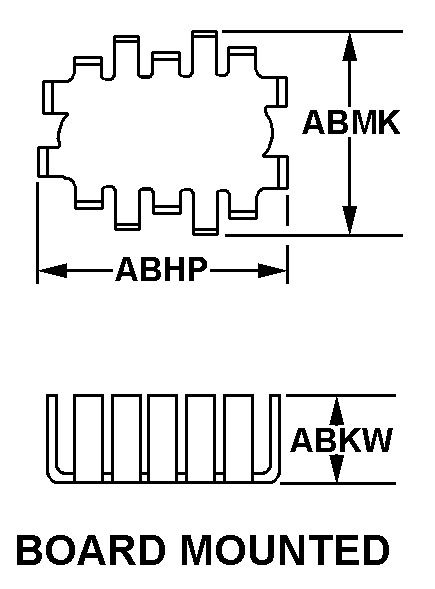

| BODY STYLE | 1A BOARD MOUNTED |
| OVERALL LENGTH | 1.560 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.062 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 3003 OR ALUMINUM ALLOY 5052 OR ALUMINUM ALLOY 1100 OR ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 6061 OR ALUMINUM ALLOY 6063 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200 FED STD SINGLE MATERIAL RESPONSE OR QQ-A-250 FED STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TYPE 1 OR 2 MIL SPEC SINGLE TREATMENT RESPONSE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.152 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| III END ITEM IDENTIFICATION | 5840-01-400-3218, RADAR SET; FIRE FINDER RADAR |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-87111 |
Restrictions/Controls & Freight Information | NSN 5999-01-474-4007
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063085 | SINKS HEAT |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
