NSN 5999-01-463-2157 BG403264, 640190P1, 01-463-2157
Product Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-01-463-2157 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Part Alternates: BG403264, 640190P1, 5999-01-463-2157, 01-463-2157, 5999014632157, 014632157
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1999 | 01-463-2157 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-01-463-2157
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-463-2157
Technical Data | NSN 5999-01-463-2157
| Characteristic | Specifications |
|---|---|

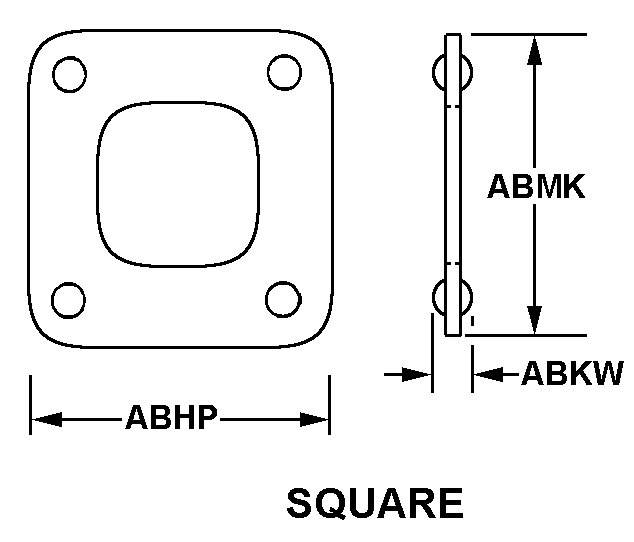

| BODY STYLE | 12B SQUARE |
| OVERALL LENGTH | 0.960 INCHES MINIMUM AND 1.040 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.035 INCHES MINIMUM AND 0.045 INCHES MAXIMUM |
| OVERALL WIDTH | 0.960 INCHES MINIMUM AND 1.040 INCHES MAXIMUM |
| MATERIAL | RUBBER SYNTHETIC AND ALUMINUM ALLOY |
| SPECIAL FEATURES | COLOR IS MAUVE;MOUNTED BY PRESSURE SENSITIVE ADHESIVE WITH CLEAR PEEL-OFF LINER |
| III END ITEM IDENTIFICATION | C-17A AIRCRAFT,CAGEC 94117 |
Restrictions/Controls & Freight Information | NSN 5999-01-463-2157
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5999-01-463-2157
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
