NSN 5999-01-443-6234 10087305 , 12462121, 01-443-6234
Product Details | ELECTRONIC COMPONENTS SHIELD
5999-01-443-6234 An item specifically designed to be placed around a group of components in order to prevent or reduce electromagnetic, electrostatic or radio frequency interference. It may be of various materials and of any shape except flat. For flat items, see PLATE, ELECTRICAL SHIELD. Excludes COVER (as modified), CAP (as modified, and shields designed for single components.
Part Alternates: 10087305 , 12462121, 5999-01-443-6234, 01-443-6234, 5999014436234, 014436234
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 APR 1997 | 01-443-6234 | 38988 ( SHIELD, ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5999-01-443-6234
Demand History | NSN 5999-01-443-6234
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12462121 | 2023-11-332 | 17 | DIBBS |
| 12462121 | 2019-03-66 | 16 | DIBBS |
| 5999-01-443-6234 | 2018-09-256 | 8 | DIBBS |
| 5999-01-443-6234 | 2017-05-124 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-443-6234
Related Products | NSN 5999-01-443-6234
Technical Data | NSN 5999-01-443-6234
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |

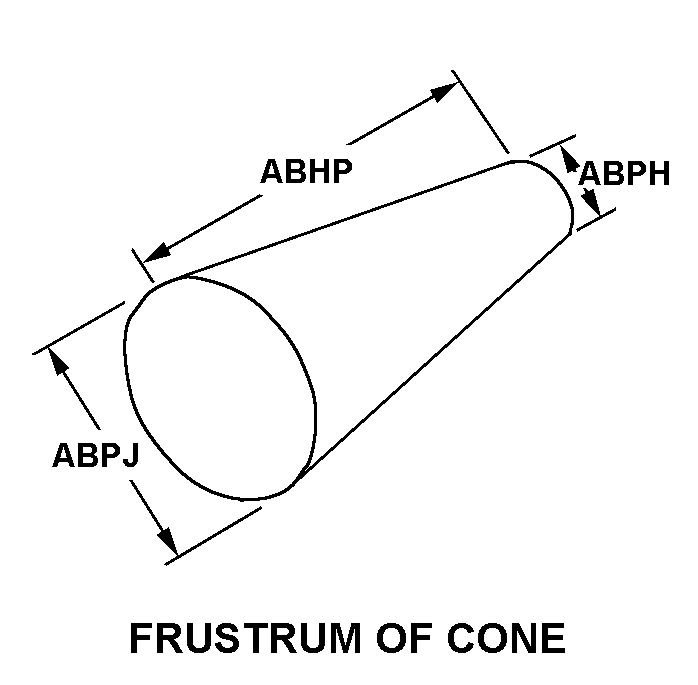

| STYLE DESIGNATOR | 4C FRUSTRUM OF CONE |
| OVERALL LENGTH | 4.750 INCHES NOMINAL |
| SMALL END DIAMETER | 2.000 INCHES NOMINAL |
| LARGE END DIAMETER | 5.750 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FRICTION SINGLE MOUNTING FACILITY |
| III END ITEM IDENTIFICATION | 2350012487619 |
Restrictions/Controls & Freight Information | NSN 5999-01-443-6234
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-443-6234
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
