NSN 5999-01-389-1192 42670049212, 426-7004-9212, 6913D4441688
Product Details | HEAT SINK-INSULATOR
5999-01-389-1192 An item specifically designed to be thermally conductive and electrically insulating. For items designed to dissipate heat only, see HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT. For items designed to insulate only, see INSULATOR (1) (as modified).
Part Alternates: 42670049212, 426-7004-9212, 6913D4441688, 69-13-D444-1688, 5999-01-389-1192, 01-389-1192, 5999013891192, 013891192
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 APR 1994 | 01-389-1192 | 39324 ( HEAT SINK-INSULATOR ) |
Drawings & Photos | NSN 5999-01-389-1192
Demand History | NSN 5999-01-389-1192
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 426-7004-9212 | 2022-08-241 | 1 | DIBBS |
| 426-7004-9212 | 2022-08-241 | 1 | DIBBS |
| 69-13-33951-T414 | 2022-08-241 | 1 | DIBBS |
| 69-13-33951-T414 | 2022-08-241 | 1 | DIBBS |
| 426-7004-9212 | 2022-08-230 | 1 | DIBBS |
| 69-13-33951-T414 | 2022-08-230 | 1 | DIBBS |
| 426-7004-9212 | 2022-08-228 | 1 | DIBBS |
| 69-13-33951-T414 | 2022-08-228 | 1 | DIBBS |
| 426-7004-9212 | 2019-10-276 | 8 | DIBBS |
| 69-13-D444-1688 | 2019-10-276 | 8 | DIBBS |
| 426-7004-9212 | 2019-08-240 | 2 | DIBBS |
| 69-13-D444-1688 | 2019-08-240 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-389-1192
Related Products | NSN 5999-01-389-1192
Technical Data | NSN 5999-01-389-1192
| Characteristic | Specifications |
|---|---|

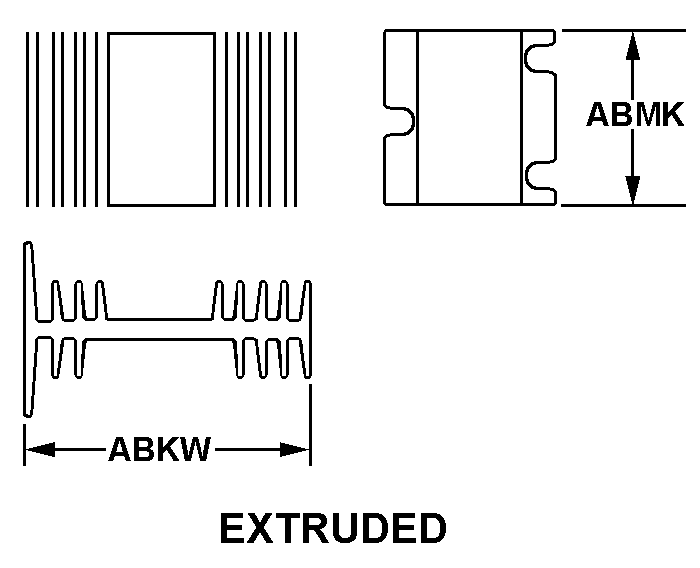

| BODY STYLE | 43A EXTRUDED |
| OVERALL LENGTH | 1.050 INCHES NOMINAL |
| OVERALL HEIGHT | 0.150 INCHES NOMINAL |
| OVERALL WIDTH | 0.004 INCHES NOMINAL |
| MATERIAL | PLASTIC MINERAL FILLED AND RUBBER SILICONE CLASS Q |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FRICTION SINGLE MOUNTING FACILITY |
Restrictions/Controls & Freight Information | NSN 5999-01-389-1192
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063085 | SINKS HEAT |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-389-1192
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
