NSN 5999-01-334-9797 11466612-5, 01-334-9797, 114666125

Product Details | RADIO FREQUENCY/ELECTROMAGNETIC INTERFERENCE PANEL

5999-01-334-9797 A replaceable device in panel form designed to eliminate radio frequency and electromagnetic interference from the air passing through it. The elimination of interference is accomplished by reflection and/or absorption of radiated electromagnetic energy by media constructed of electrically conductive material, in honeycomb or louvered form confined in a frame, with electrically conductive gasketing (or self-gasketing feature) to provide electrical contact with the cabinet on which it is installed or mounted. It may be used in air ventilating or heating ducts, lighting aperture and the like. It may have a filter for dust protection. It may include a drip-proof design feature. Excludes electrical filtering devices which employ capacitor, resistor and coil components to eliminate or suppress conducted electromagnetic energy. Excludes SHIELD,TEST.

Part Alternates: 11466612-5, 5999-01-334-9797, 01-334-9797, 5999013349797, 114666125, 013349797

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	05 MAR 1991	01-334-9797	32626 ( PANEL, RADIO FREQUENCY-ELECTROMAGNETIC INTERFERENCE SHIELDED, VENTILATING )

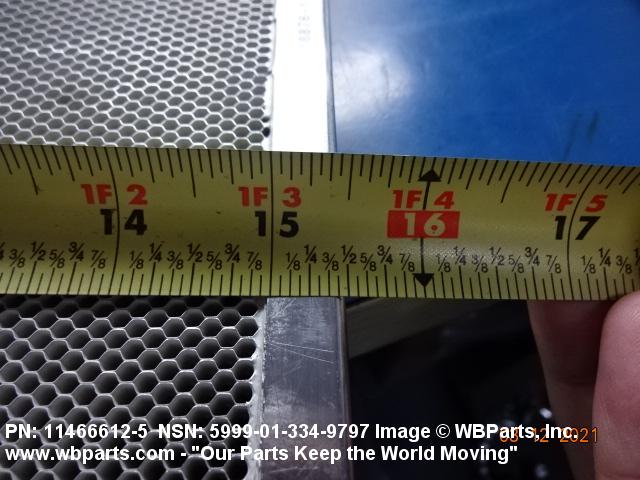

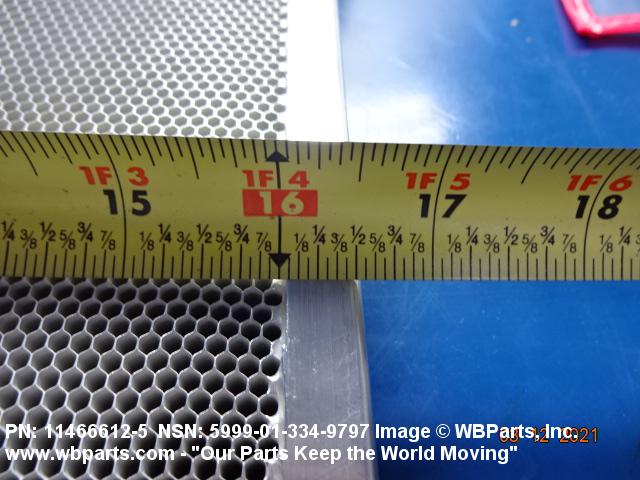

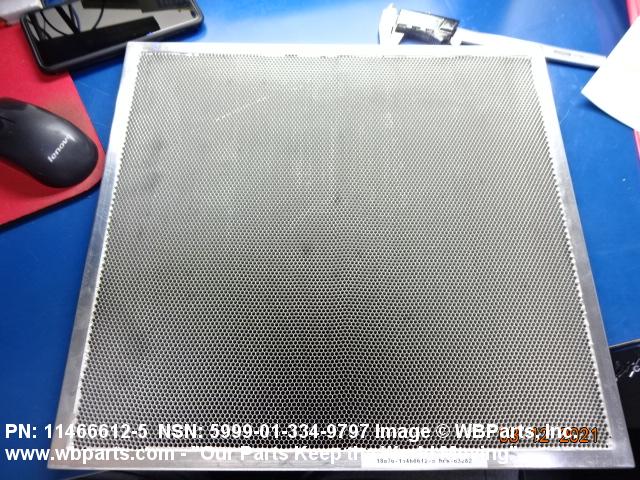

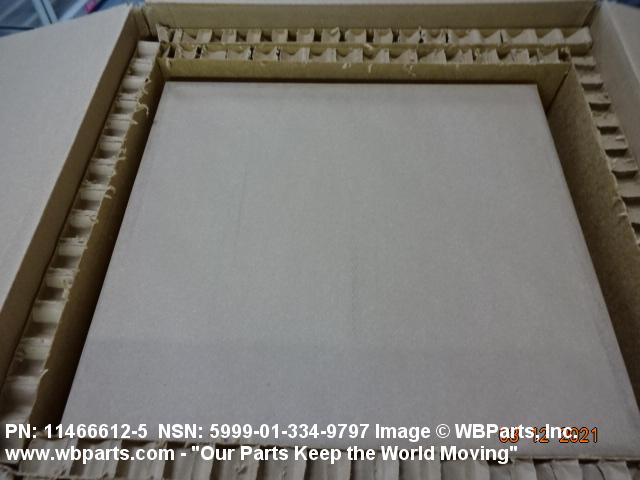

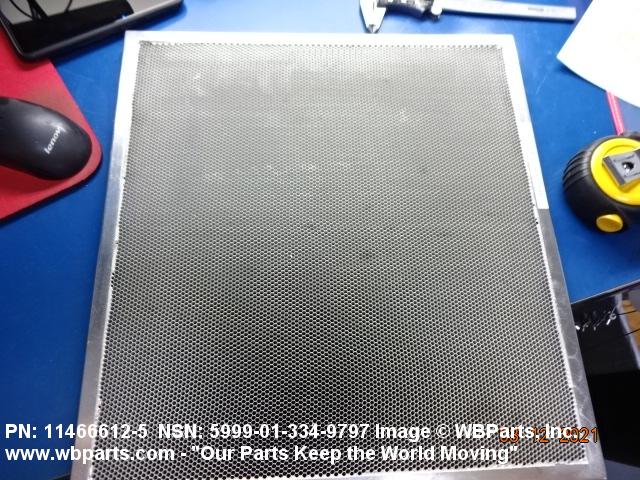

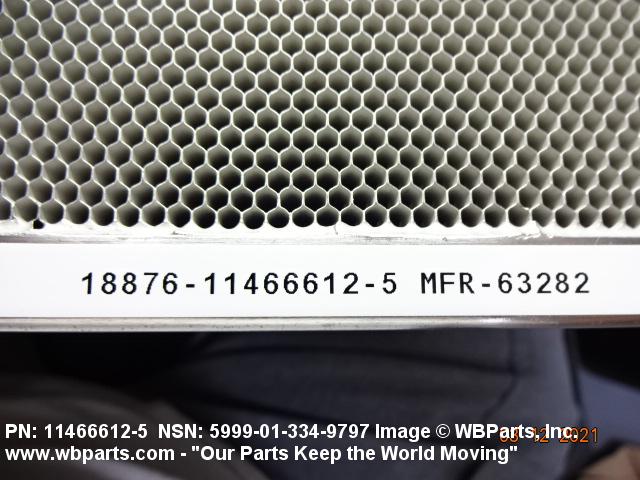

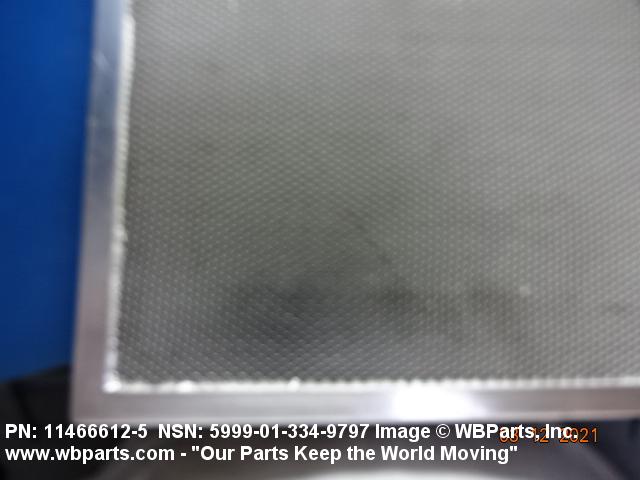

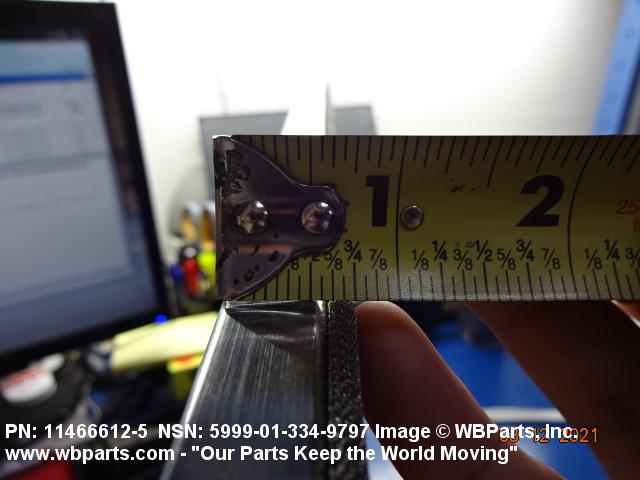

Drawings & Photos | NSN 5999-01-334-9797

Part Number	Request Date	QTY	Origin
5999-01-334-9797	2024-06-170	72	US
11466612-5	2024-06-162	72	DIBBS
11466612-5	2024-05-149	72	DIBBS
11466612-5	2024-02-42	31	DIBBS
11466612-5	2024-01-29	31	DIBBS
11466612-5	2021-08-231	31	DIBBS
11466612-5	2021-04-91	25	DIBBS
114666125	2021-01-06	4	US
11466612-5	2021-01-03	28	DIBBS
11466612-5	2020-09-254	5	DIBBS
5999-01-334-9797	2020-08-225	4	Taiwan
11466612-5	2020-08-219	9	DIBBS
5999-01-334-9797	2020-06-182	4	MANUAL
11466612-5	2020-05-124	41	DIBBS
11466612-5	2020-04-121	28	DIBBS
11466612-5	2019-10-276	12	DIBBS
11466612-5	2019-08-224	27	DIBBS
11466612-5	2019-08-213	27	DIBBS
11466612-5	2019-02-45	35	DIBBS
11466612-5	2019-02-34	35	DIBBS
11466612-5	2019-01-07	25	DIBBS
5999-01-334-9797	2018-12-361	25	DIBBS
5999-01-334-9797	2018-10-288	34	DIBBS
5999-01-334-9797	2018-10-276	34	DIBBS
5999-01-334-9797	2018-09-270	9	DIBBS
5999-01-334-9797	2018-06-158	34	DIBBS
5999-01-334-9797	2018-04-113	35	DIBBS
5999-01-334-9797	2018-04-101	35	DIBBS
5999-01-334-9797	2017-07-199	18	DIBBS
5999-01-334-9797	2017-04-106	7	DIBBS
5999-01-334-9797	2017-02-43	13	DIBBS
5999-01-334-9797	2013-07-191	33	DIBBS
5999-01-334-9797	2013-06-176	33	DIBBS
5999-01-334-9797	2011-01-06	73	DIBBS
5999-01-334-9797	2010-09-258	2	RO
5999-01-334-9797	2010-09-257	13	DIBBS
5999-01-334-9797	2010-03-63	45	DIBBS
5999-01-334-9797	2009-02-41	2	DIBBS
5999-01-334-9797	2009-01-07	20	DIBBS
5999-01-334-9797	2008-11-317	12	DIBBS
5999-01-334-9797	2008-10-282	20	DIBBS
5999-01-334-9797	2008-05-151	18	DIBBS
5999-01-334-9797	2007-11-313	11	DIBBS

Cross Reference | NSN 5999-01-334-9797

Part Number	Cage Code	Manufacturer
11466612-5	18876	U S ARMY AVIATION AND MISSILE COMMAND
11466612-5	63282	G-O-METRIC INCORPORATED

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5999-01-334-9797

Compare

Related Products | NSN 5999-01-334-9797

5999-01-334-9810, 5999-01-334-9811, 5999-01-334-9842, 5999-01-334-9843, 5999-01-335-0573

Technical Data | NSN 5999-01-334-9797

Characteristic	Specifications
OVERALL LENGTH	16.530 INCHES MINIMUM AND 16.590 INCHES MAXIMUM
OVERALL WIDTH	15.470 INCHES MINIMUM AND 15.530 INCHES MAXIMUM
SPECIAL FEATURES	MOUNTING TYPE:UNTHREADED HOLE;MOUNTING HOLE QTY:32;BODY THICKNESS:0.705 IN.MIN,0.785 IN.MAX;DISTANCE BETWEEN MOUNTING HOLES CENTERS:1.990 IN.MIN,2.010 IN.MAX;DESIGN TYPE:REUSABLE;FILTERING MEDIA DESIGN:HONEY COMB;MATERIAL:FILTERING MEDIUM,COPPER ALLOY;FRAME,COPPER ALLOY QQ-B-613;SEAL,COPPER ALLOY ASTM B520,CLASS T40A AND SPONGE MIL-R-6130,TYPE II,GRADE A;SURFACE TREATMENT AND DOCUMENT:FRAME,COPPER MIL-C-14550 AND TIN PLATED MIL-P-81728
III END ITEM IDENTIFICATION	1430-01-087-6330 RADAR SET,SEMIT

Restrictions/Controls & Freight Information | NSN 5999-01-334-9797

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	B	ESD sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 5999-01-334-9797

Army

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
