NSN 5999-01-184-6299 3517675, 351767-5, 515656
Product Details | ELECTRICAL CONTACT
5999-01-184-6299 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: 3517675, 351767-5, 515656, 51565-6, 5999-01-184-6299, 01-184-6299, 5999011846299, 011846299
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUL 1984 | 01-184-6299 | 00443 ( CONTACT, ELECTRICAL ) |
Drawings & Photos | NSN 5999-01-184-6299
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-184-6299
Technical Data | NSN 5999-01-184-6299
| Characteristic | Specifications |
|---|---|

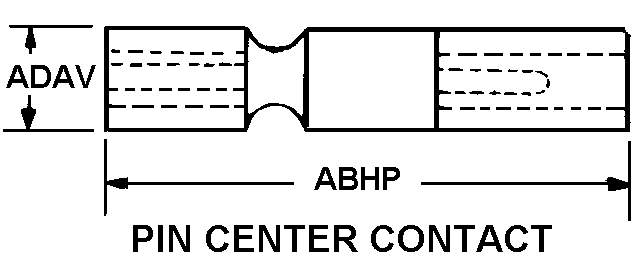

| STYLE DESIGNATOR | A3 PIN CENTER CONTACT |
| OVERALL LENGTH | 0.650 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.095 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY BODY AND CONTACT PLASTIC CONTACT INSULATION |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-B-140 ASSN STD SINGLE MATERIAL RESPONSE AND ASTM-B-135 ASSN STD SINGLE MATERIAL RESPONSE AND MIL-C-50 MIL SPEC SINGLE MATERIAL RESPONSE BODY AND CONTACT L-P-394,FSCM 80249 MFR REF SINGLE MATERIAL RESPONSE CONTACT INSULATION |
| SURFACE TREATMENT | GOLD AND COPPER CONTACT GOLD AND NICKEL BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45024,TYPE 2 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-C-14550 MIL SPEC 2ND TREATMENT RESPONSE CONTACT MIL-G-45024,TYPE 2 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 FED SPEC 2ND TREATMENT RESPONSE BODY |
| TERMINAL TYPE AND QUANTITY | 1 SOLDER WELL END OPPOSITE CONTACT |
| MOUNTING METHOD | SPRING TENSION |
| PIN DIAMETER | 0.017 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.083 INCHES NOMINAL |
| TEST DATA DOCUMENT | 80249-351767 DRAWING |
| III CURRENT RATING IN AMPS | 1.0 |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | BODY AND CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5999-01-184-6299
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-01-184-6299
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
