Product Details | ELECTRICAL CONTACT
5999-01-170-0097 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: 02066202, 02-06-6202, 5999-01-170-0097, 01-170-0097, 5999011700097, 011700097
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JAN 1984 | 01-170-0097 | 00443 ( CONTACT, ELECTRICAL ) |
Drawings & Photos | NSN 5999-01-170-0097
Cross Reference | NSN 5999-01-170-0097
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02-06-6202 | 27264 | MOLEX INCORPORATED DBA USE CAGE CODE 1UX99 FOR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-01-170-0097
Technical Data | NSN 5999-01-170-0097
| Characteristic | Specifications |
|---|---|

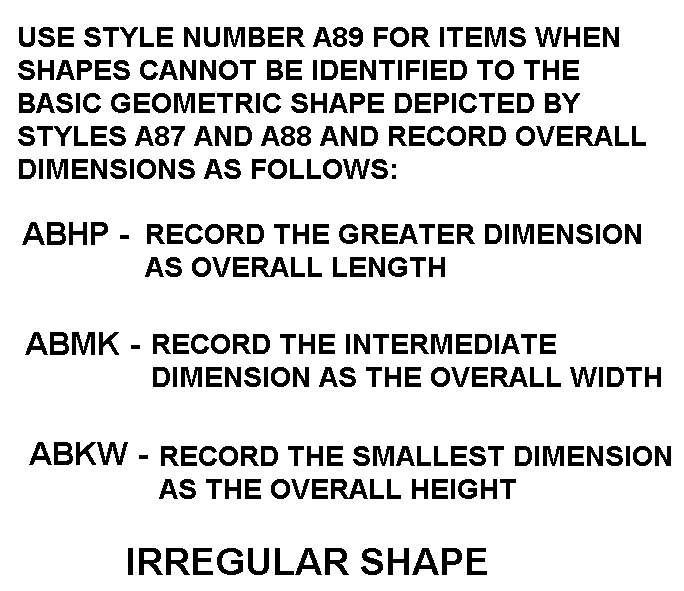

| STYLE DESIGNATOR | A89 IRREGULAR SHAPE |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.060 INCHES NOMINAL |
| OVERALL WIDTH | 0.090 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY AND CONTACT |
| SURFACE TREATMENT | GOLD BODY AND CONTACT |
| TERMINAL TYPE AND QUANTITY | 1 CRIMP AXIALLY AT ONE END |
| MOUNTING METHOD | SOLDER |
| PIN ACCOMMODATION DIAMETER | 0.062 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.010 INCHES MINIMUM AND 0.020 INCHES MAXIMUM |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | BODY AND CONTACT SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5999-01-170-0097
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
