NSN 5999-01-134-3598 MS3192A2020A, MS3192A20-20A, MS3192A2020B

Product Details | ELECTRICAL CONTACT

5999-01-134-3598 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.

Part Alternates: MS3192A2020A, MS3192A20-20A, MS3192A2020B, MS3192A20-20B, MS3192A20A, MS3192A20A20A, MS3192A20A-20A, M39029/31-228, M39029/31-240, M39029/31-24P, M3902931228, M3902931240, M390293124P, AS39029/31, AS3902931, BIN240, BIN-240, LRM20W28DJ5, LRM20W5DE5, MILC23216, MIL-C-39029/31, MILC3902931, 0309036000, 030-9036-000, 10100000020P, 10-1000000-20P, 1031498020P, 10-314980-20P, 4180501, 418050-1, 5999-01-134-3598, 01-134-3598, 5999011343598, 011343598

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	03 JUL 1982	01-134-3598	00443 ( CONTACT, ELECTRICAL )

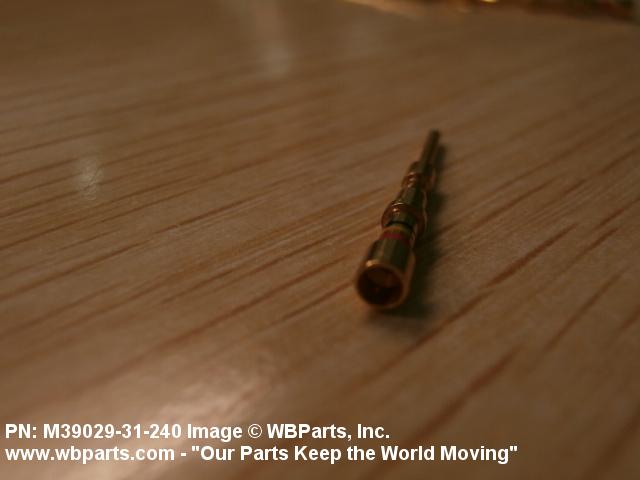

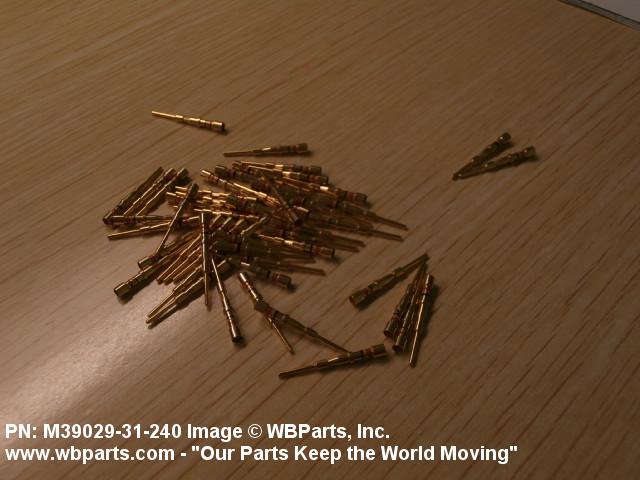

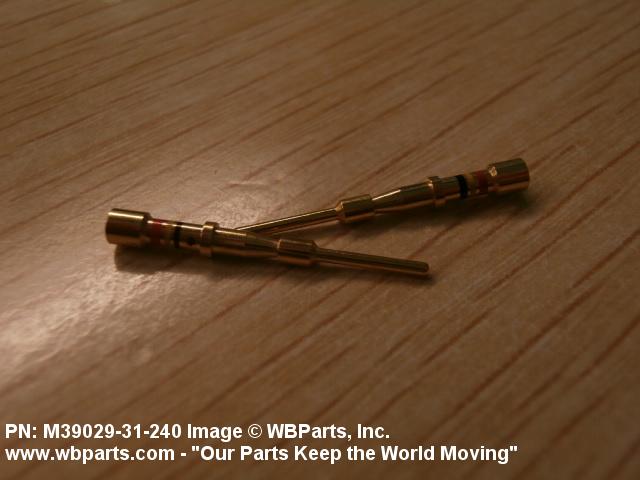

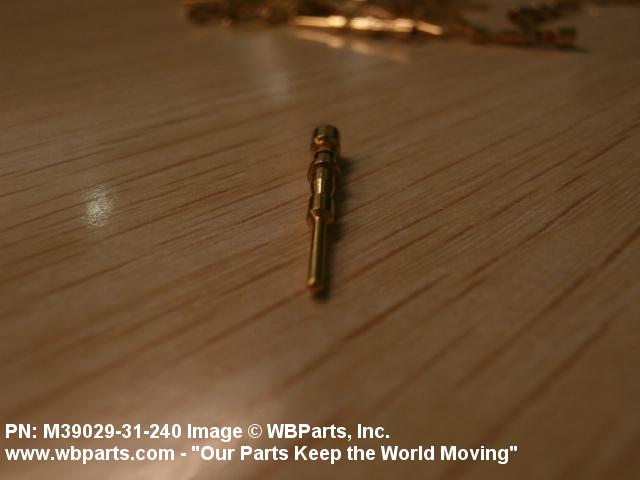

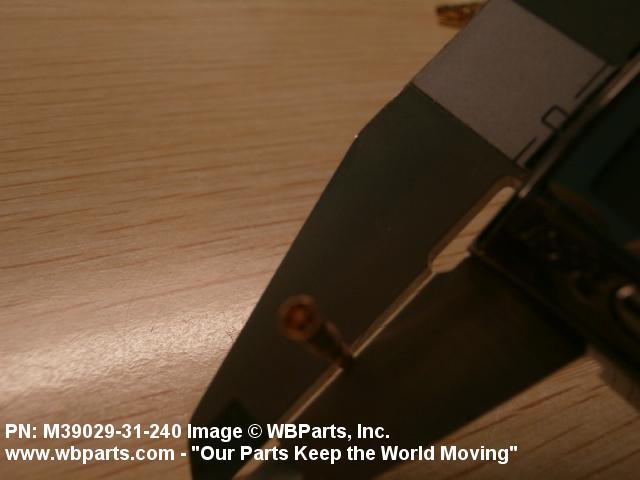

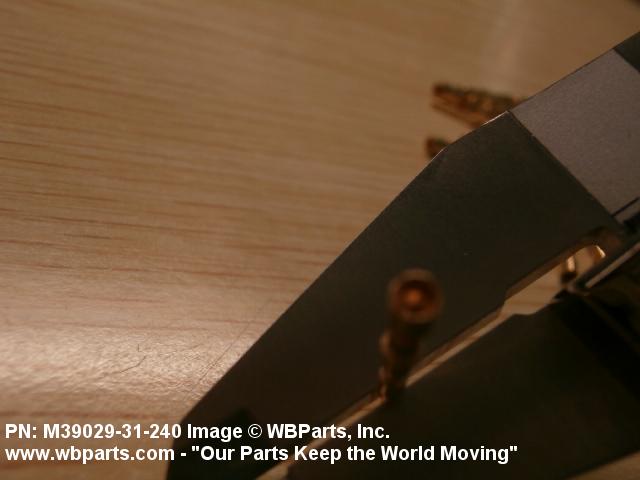

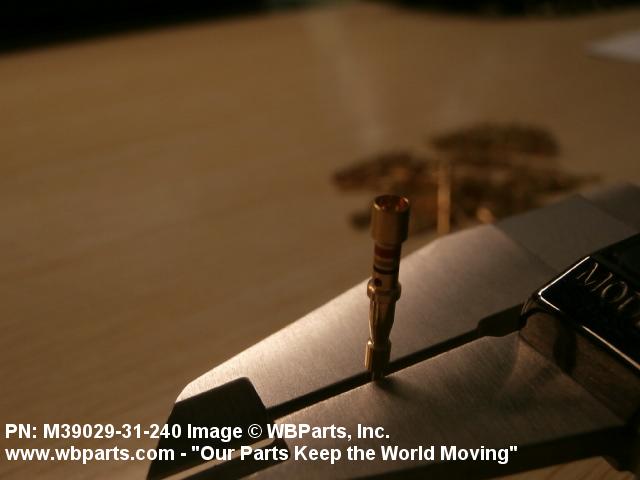

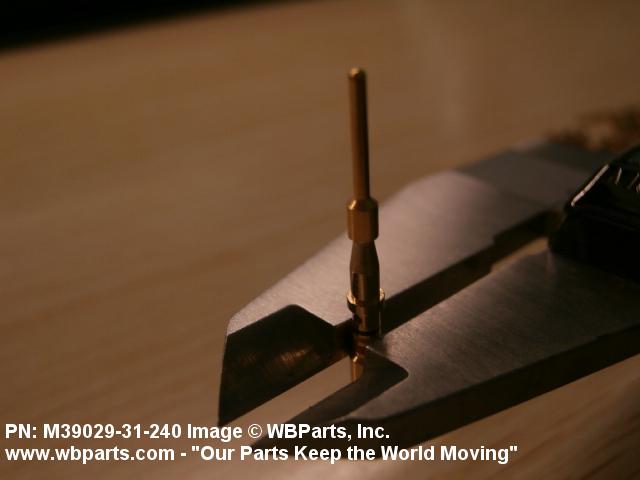

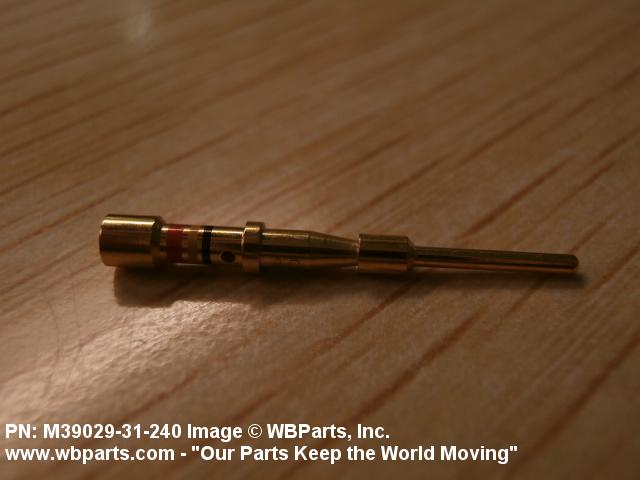

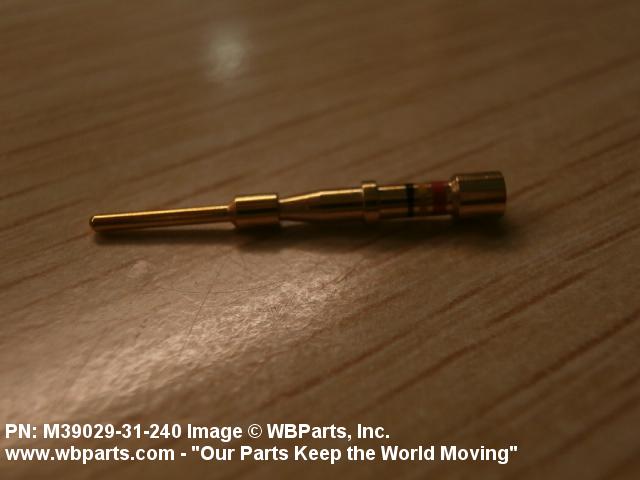

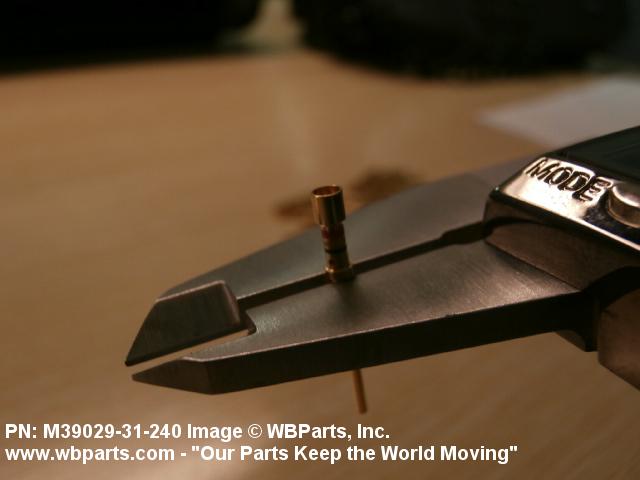

Drawings & Photos | NSN 5999-01-134-3598

Part Number	Request Date	QTY	Origin
5999-01-134-3598	2023-02-58	3493	DIBBS
5999-01-134-3598	2022-05-122	5947	DIBBS
M3902931240	2021-09-264	200	United States
5999-01-134-3598	2020-11-335	500	CA
5999-01-134-3598	2020-06-175	1000	CA
5999-01-134-3598	2019-01-23	15	India
5999-01-134-3598	2018-03-66	7535	DIBBS
5999-01-134-3598	2017-09-250	6980	DIBBS
MS3192A2020A	2015-04-113	50	AR
5999-01-134-3598	2014-12-337	15220	DIBBS
5999-01-134-3598	2014-06-162	6626	DIBBS
M3902931240	2012-11-324	10	Italy
M39029/31-240	2012-04-110	50	PK
M3902931240	2011-12-348	1	United States
5999-01-134-3598	2011-08-228	5973	DIBBS
M3902931228	2011-08-215	100	US
M39029/31-228	2011-04-118	100	United States
MS3192A2020A	2011-02-57	20	Malaysia
M3902931240	2010-08-224	500	Brazil
5999-01-134-3598	2010-06-167	3067	DIBBS
5999-01-134-3598	2010-03-74	1500	US
5999-01-134-3598	2009-07-212	11265	DIBBS
5999-01-134-3598	2008-03-81	13329	DIBBS
5999-01-134-3598	2008-03-80	13329	DIBBS
5999-01-134-3598	2007-10-276	15105	DIBBS
5999-01-134-3598	2007-08-213	8977	DIBBS
5999-01-134-3598	2007-05-129	15105	DIBBS

Cross Reference | NSN 5999-01-134-3598

Part Number	Cage Code	Manufacturer
030-9036-000	71468	ITT CORPORATION DBA I T T CANNON
10-1000000-20P	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
10-314980-20P	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
418050-1	96214	RAYTHEON COMPANY DBA RAYTHEON
AS39029/31	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BIN-240	16236	DLA LAND AND MARITIME
LRM20W28DJ5	09922	SOURIAU USA, INC.
LRM20W5DE5	09922	SOURIAU USA, INC.
M39029/31-228	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39029/31-240	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M39029/31-240	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39029/31-24P	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-39029/31	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC23216	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3192A20-20A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3192A20-20B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3192A20A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3192A20A-20A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5999-01-134-3598

Compare

Related Products | NSN 5999-01-134-3598

5999-01-134-3678, 5999-01-134-3699, 5999-01-134-4651, 5999-01-134-4725, 5999-01-134-4836

Technical Data | NSN 5999-01-134-3598

Characteristic	Specifications
STYLE DESIGNATOR	A11 PIN CONTACT

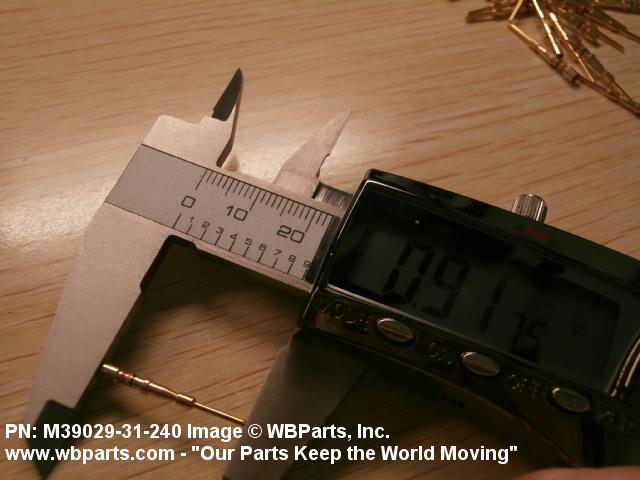

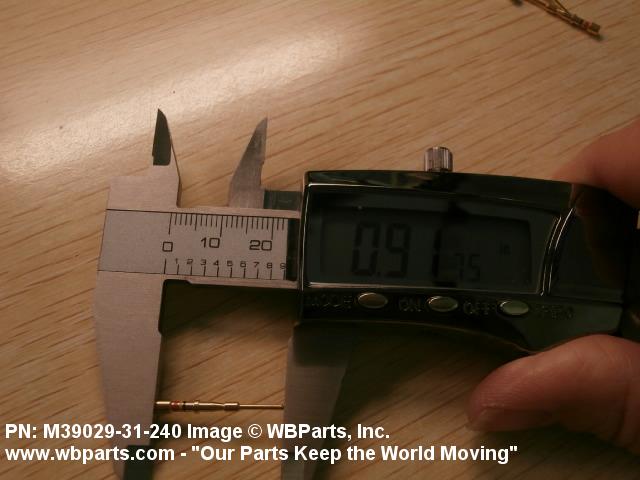

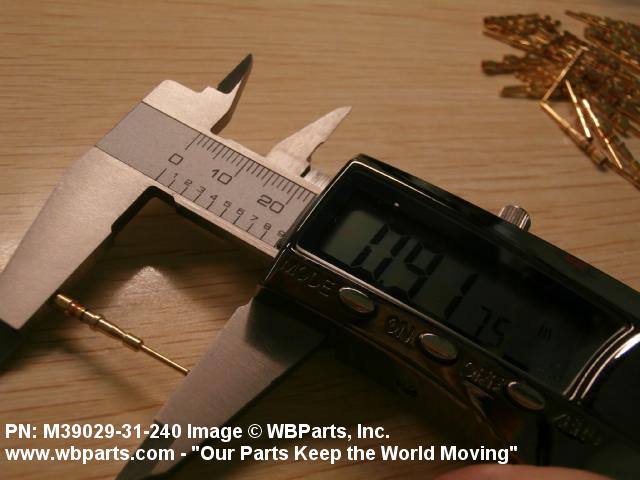

OVERALL LENGTH	0.915 INCHES NOMINAL

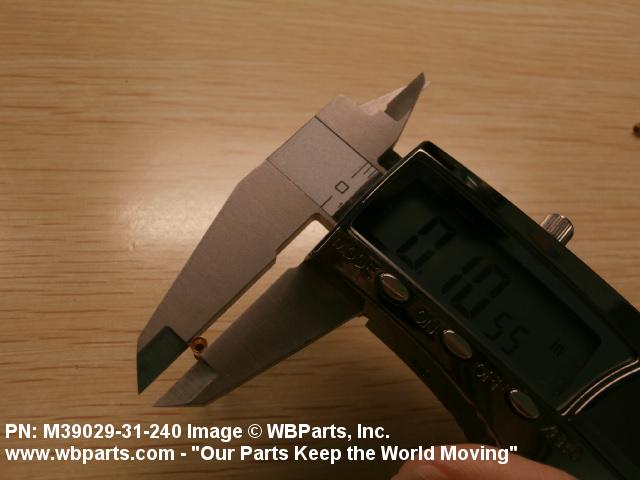

OVERALL DIAMETER	0.100 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
MATERIAL	COPPER ALLOY BODY AND CONTACT
SURFACE TREATMENT	GOLD BODY AND CONTACT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE BODY AND CONTACT
IDENTIFICATION CODE COLOR	RED AND YELLOW AND BLACK
TERMINAL TYPE AND QUANTITY	1 CRIMP END OPPOSITE CONTACT
MOUNTING METHOD	TERMINAL
CABLE ENTRANCE DIAMETER	0.032 INCHES NOMINAL
SPECIAL FEATURES	BASIC ITEM IDENTIFICATION NUMBER BIN-240
TEST DATA DOCUMENT	81349-MIL-C-39029 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-39029/31 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	BODY AND CONTACT SURFACES GOLD
III CRIMPING TOOL IDENTIFYING NUMBER	M22520/7-01
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-39029/31
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M39029/31-240

Restrictions/Controls & Freight Information | NSN 5999-01-134-3598

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5999-01-134-3598

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	F EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	F EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
