Product Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-083-6304 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Part Alternates: M87111/03-2A01, M87111/03-2B01, M87111032A01, M87111032B01, MIL-H-87111/3, MILH871113, 200-.250-.187, 201, 5999-01-083-6304, 01-083-6304, 5999010836304, 010836304, 200250187
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 SEP 1979 | 01-083-6304 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-01-083-6304
Demand History | NSN 5999-01-083-6304
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 201 | 2012-02-51 | 6 | United States |
Cross Reference | NSN 5999-01-083-6304
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200-.250-.187 | 53894 | AHAM-TOR INC DBA ATI |
| 201 | 05820 | EG AND G WAKEFIELD ENGINEERING |
| M87111/03-2A01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M87111/03-2B01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-87111/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-01-083-6304
Related Products | NSN 5999-01-083-6304
Technical Data | NSN 5999-01-083-6304
| Characteristic | Specifications |
|---|---|

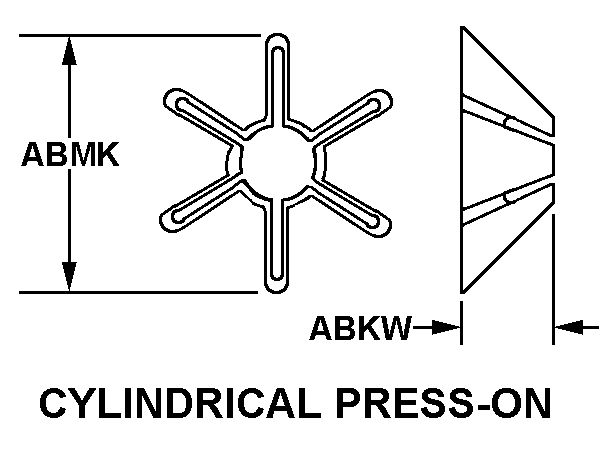

| BODY STYLE | 27A CYLINDRICAL PRESS-ON |
