NSN 5999-00-909-4138 M38527/-11D, M3852711D, AZ0149028
Product Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-00-909-4138 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Part Alternates: M38527/-11D, M3852711D, AZ0149028, C511008009, SMC7721161, SM-C-772116-1, 10022, 10162, 10162DAP, 606025, 606-025, 606025D, 606-025D, 640058P1, 704AS9576, 7717189DAP, 7717-189DAP, 840425, 8995761, 899576-1, 13153497-1, 2572301, 2626572, 262657-2, 280139, 280-139, 28837851, 2883785-1, 28873851, 2887385-1, 400397, 52X020P002, 5301291, 530129-1, 58C827002, 58C827-002, 5999-00-909-4138, 00-909-4138, 5999009094138, 009094138, 131534971
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-909-4138 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-00-909-4138
Demand History | NSN 5999-00-909-4138
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-00-909-4138 | 2024-12-355 | 1 | US |
| 10162DAP | 2024-10-289 | 36 | Japan |
| 5999-00-909-4138 | 2007-05-145 | 500 | DIBBS |
Cross Reference | NSN 5999-00-909-4138
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10022 | 21071 | GLOBE PLASTICS, INC. |
| 10162 | 07047 | ROSS MILTON CO THE |
| 10162DAP | 07047 | ROSS MILTON CO THE |
| 13153497-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 2572301 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 262657-2 | 01534 | RAYTHEON COMPANY DBA RAYTHEON |
| 280-139 | 0PN68 | AMPEX DATA SYSTEMS CORPORATION |
| 280-139 | 92739 | AMPEX SYSTEMS CORP |
| 2883785-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 2887385-1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 2887385-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 400397 | 12909 | CARDION INC |
| 400397 | 20284 | TARGET CORPORATION DBA TARGET |
| 52X020P002 | A0810 | SELEX ES SPA |
| 52X020P002 | A1615 | SELEX ES SPA |
| 52X020P002 | A6141 | ALENIA DIFESA SPA DIVISIONE SISTEMI AVIONICI ED EQUIPAGGIAMENTI UNITA' |
| 530129-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5301291 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 58C827-002 | 04660 | AIL SYSTEMS INC SUB OF EATON CORP |
| 606-025 | 08289 | THE DELBERT BLINN CO INC |
| 606-025D | 08289 | THE DELBERT BLINN CO INC |
| 640058P1 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 704AS9576 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 7717-189DAP | 13103 | THERMALLOY CO INC |
| 7717-189DAP | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 840425 | 52542 | SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV |
| 899576-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| AZ0149028 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| C511008009 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| M38527/-11D | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SM-C-772116-1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-00-909-4138
Related Products | NSN 5999-00-909-4138
Technical Data | NSN 5999-00-909-4138
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 20B DISK |
| OVERALL HEIGHT | 0.110 INCHES NOMINAL |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| COLOR | BLACK |
| MATERIAL | PLASTIC DIALLYL PHTHALATE MINERAL FILLED |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-18794,TYPE SDG MIL SPEC SINGLE MATERIAL RESPONSE |

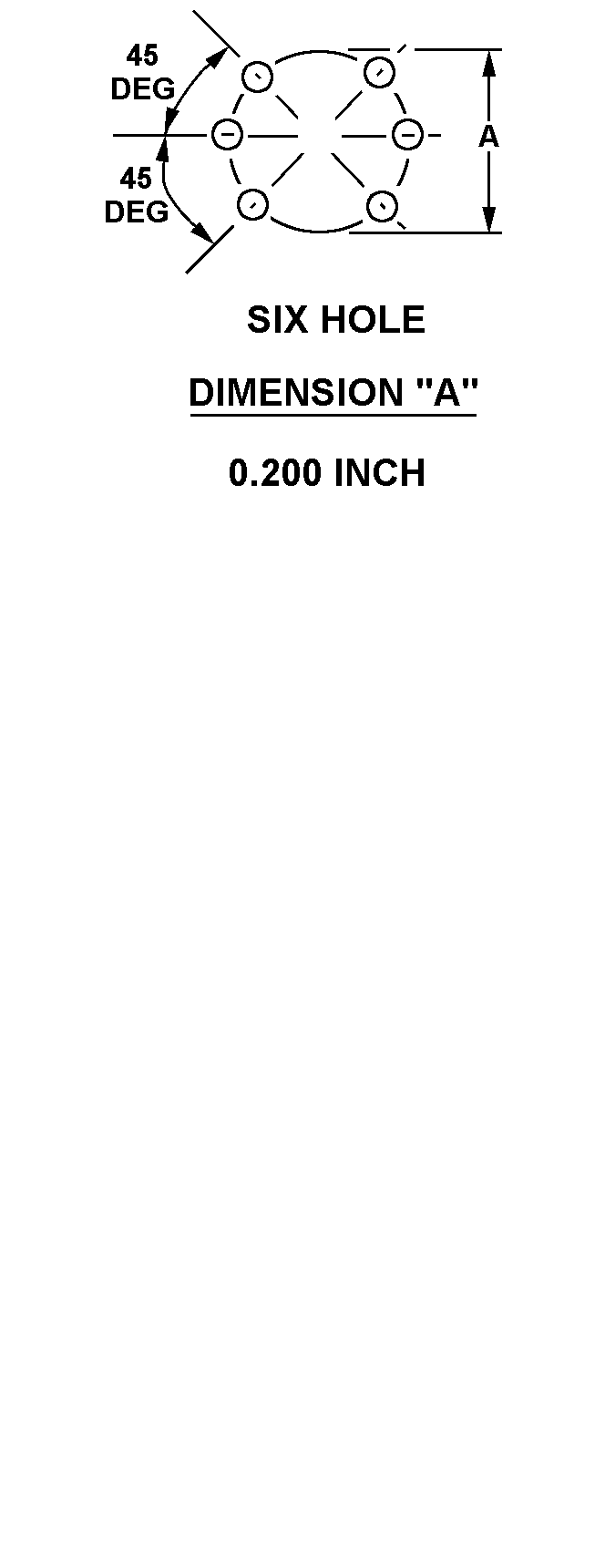

| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | 605B SIX HOLE - 0.200 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 6 |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.036 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SPECIFICATION/STANDARD DATA | 80063-SM-C-772116 MANUFACTURERS SPECIFICATION CONTROL |
Restrictions/Controls & Freight Information | NSN 5999-00-909-4138
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5999-00-909-4138
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
