NSN 5999-00-853-1493 PB23422, 00-853-1493, 008531493
Product Details | LIGHT-SWITCH ASSEMBLY
5999-00-853-1493 An electrical device consisting of a Switch (1) and two or more lights, or two or more switches and two or more lights, mounted on a common mounting. The lights are not intended for illumination but are present for the purpose of indication. Each item may be separable and capable of functioning individually, or the items may be fabricated into a common inseparable body, incapable of functioning individually. It may include wall plate or box cover and it may be complete with box. Excludes push, pull, push-pull, and toggle switches with a lamp mounted integrally in the actuator.
Part Alternates: PB23422, 5999-00-853-1493, 00-853-1493, 5999008531493, 008531493
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1962 | 00-853-1493 | 17647 ( LIGHT-SWITCH ASSEMBLY ) |
Cross Reference | NSN 5999-00-853-1493
Part Number | Cage Code | Manufacturer |
---|---|---|
PB23422 | 39739 | SCOTT FETZER COMPANY, THE DBA MERIAM PROCESS TECHNOLOGIES |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5999-00-853-1493
Technical Data | NSN 5999-00-853-1493
Characteristic | Specifications |
---|---|

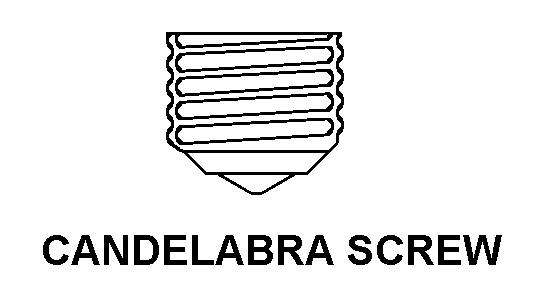

LAMP BASE STYLE | 22B CANDELABRA SCREW |
LAMP BULB SIZE DESIGNATOR | S-6 |
LENS COLOR | GREEN |
ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
FEATURES PROVIDED | BOX COVER AND THREADED ENTRANCE |
SPECIAL FEATURES | INCLOSURE MATL:ALUMINUM; ASSY O/A H:4 IN. NOM.; SWITCH TYPE:1ST AND 2ND VARIATION PUSH; SWITCH CURRENT TYPE:1ST AND 2ND VARIATION AC; LAMP:INCLUDED; TRANSFORMER:NOT INCLUDED; ASSY O/A W:7 IN. NOM.; ASSY O/A L:14 IN. NOM.; VOLTAGE RATING:1ST AND 2ND VARIATION 600.0 V NOM.; INDIVIDUAL SWITCH QTY:1ST VARIATION 8, 2ND VARIATION 1; LIGHT QTY:4; LUMINOUS ACTUATER:NOT INCLUDED; ENTRANCE:PROVIDED; THREADED ENTRANCE QTY:2; THREAD LOCATION:INTERNAL; INCLOSURE SURFACE TREATMENT:ANODIZED; CONTACT ARRANGEMENT:1ST VARIATION DPDT NORMALLY OPEN AND NORMALLY CLOSED, 2ND VARIATION ST 2 CIRCUIT,NORMALLY OPEN; OPENING THREAD SIZE:1/4-18 NPT |
MANUFACTURERS CODE | 39739 |
DESIGN CONTROL REFERENCE | PB23422 |
Restrictions/Controls & Freight Information | NSN 5999-00-853-1493
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
Less than car load rating | P | 77.5 |
Less than truck load rating | P | 77.5 |
Water commodity Code | 658 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
