NSN 5999-00-816-6439 6956ED518 PC 1B, 6956ED518PC1B, 6962ED3449 PC 1B
Product Details | ELECTRICAL CONTACT ASSEMBLY
5999-00-816-6439 Two or more CONTACT, ELECTRICAL on a common mounting or mounted on each other. Excludes BRUSH SET, ELECTRICAL CONTACT; CONTACT SET (as modified); and INSERT, ELECTRICAL CONNECTOR.
Part Alternates: 6956ED518 PC 1B, 6956ED518PC1B, 6962ED3449 PC 1B, 6962ED3449PC1B, 6968ED516 PC1B, 6968ED516 PC2B, 6968ED516PC1B, 6968ED516PC2B, 233008, 23-3008, 5999-00-816-6439, 00-816-6439, 5999008166439, 008166439
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-816-6439 | 06160 ( CONTACT ASSEMBLY, ELECTRICAL ) |

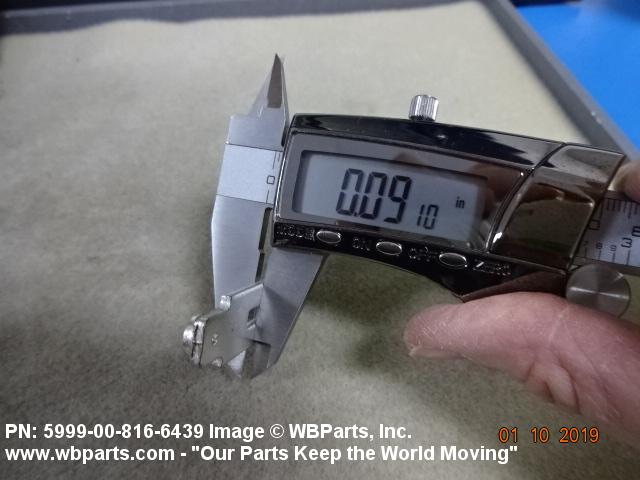

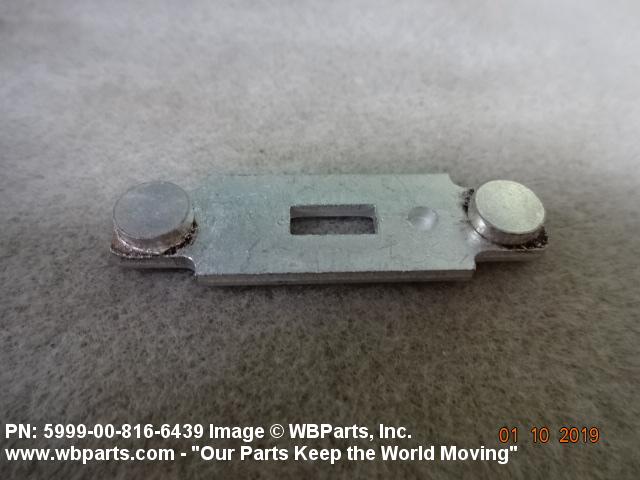

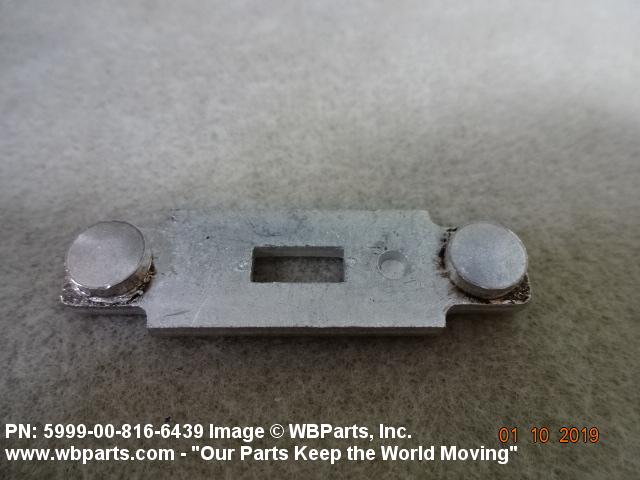

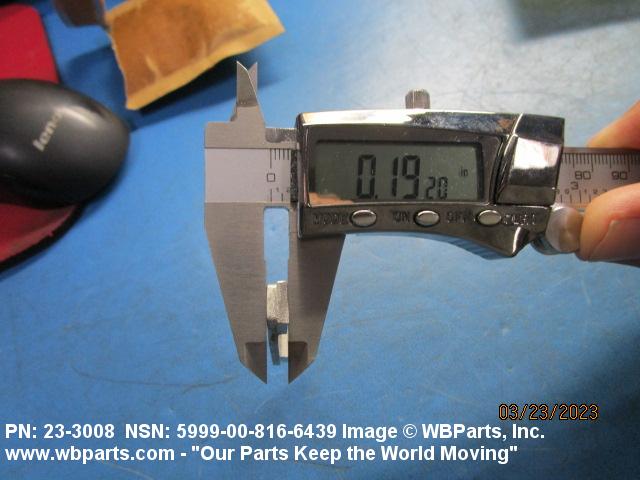

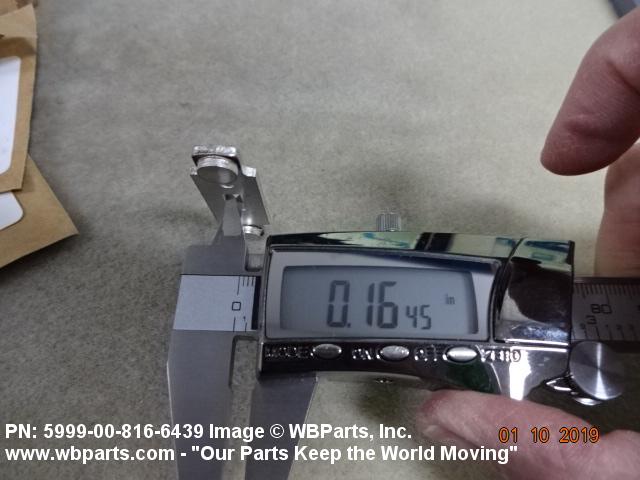

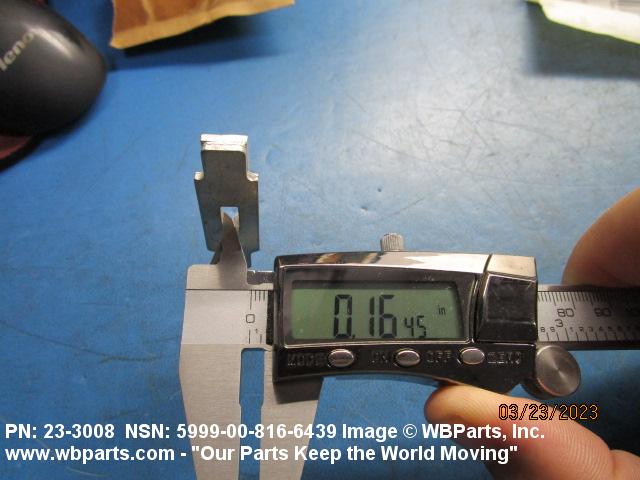

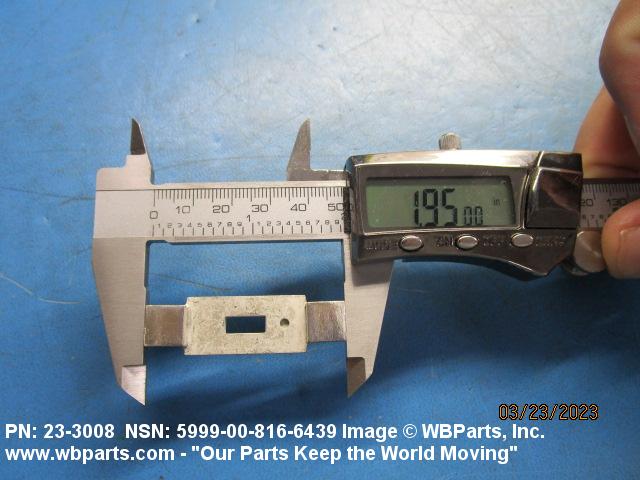

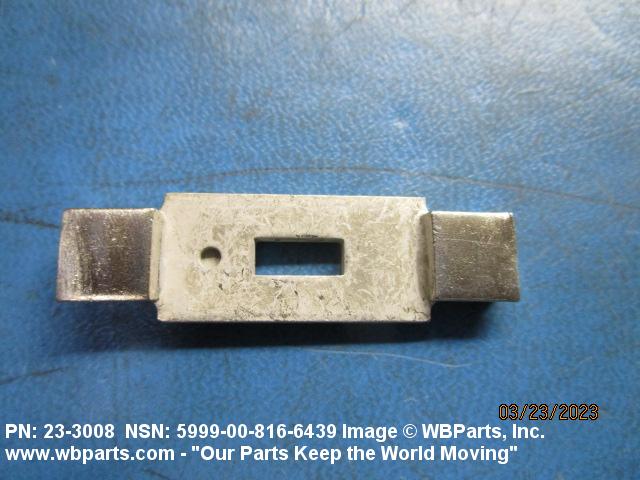

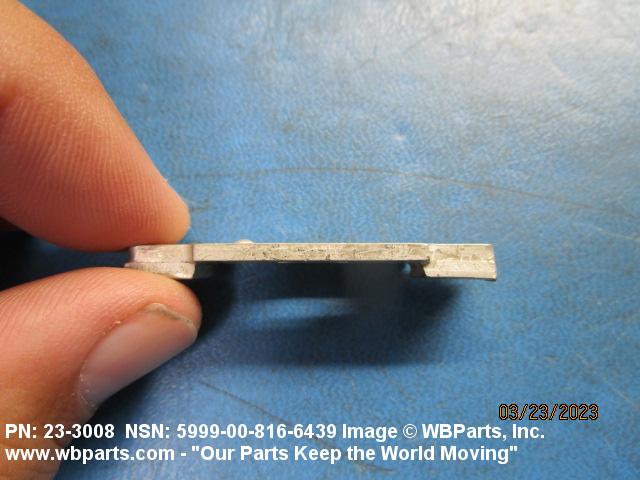

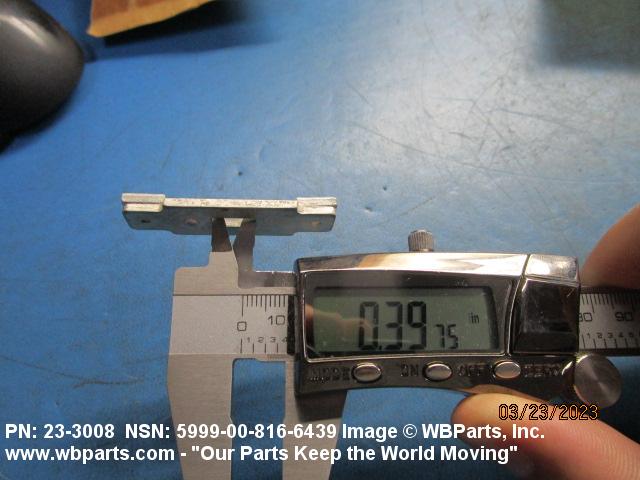

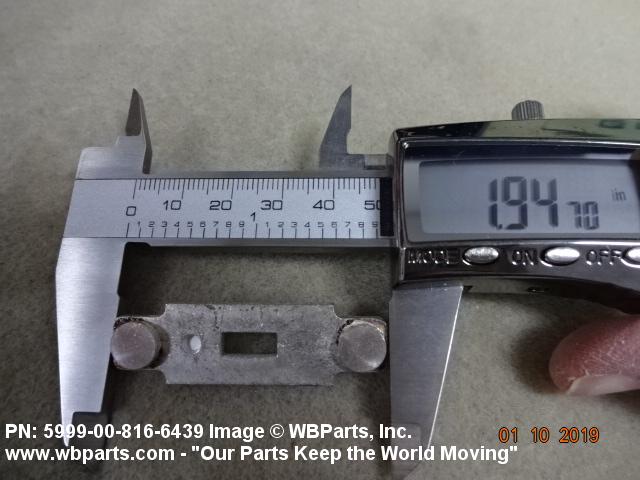

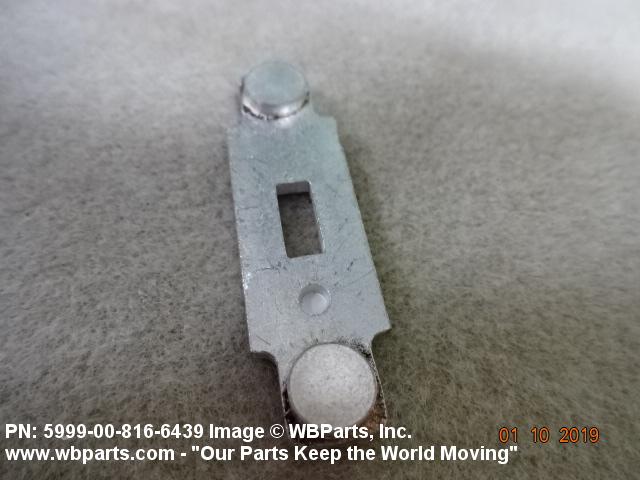

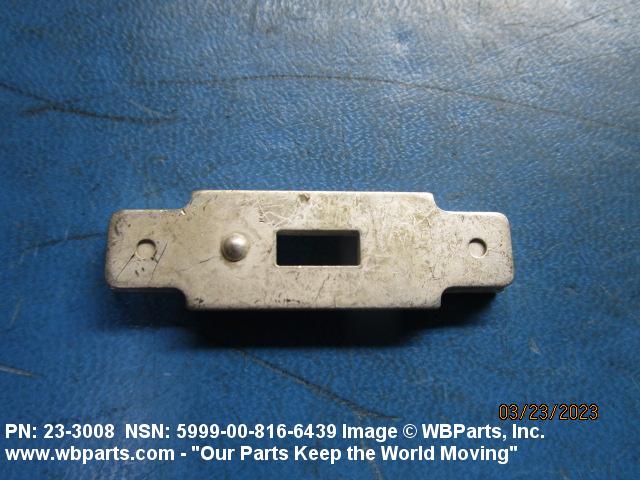

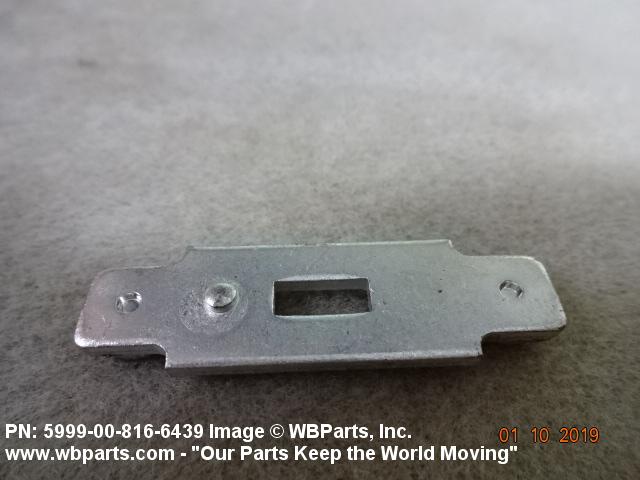

Drawings & Photos | NSN 5999-00-816-6439
Demand History | NSN 5999-00-816-6439
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-00-816-6439 | 2023-03-77 | 103 | us |
| 23-3008 | 2022-09-254 | 103 | DIBBS |
| 5999-00-816-6439 | 2022-08-234 | 105 | United States |
| 23-3008 | 2021-10-280 | 105 | DIBBS |
| 23-3008 | 2021-04-102 | 272 | DIBBS |
| 23-3008 | 2021-04-91 | 272 | DIBBS |
| 23-3008 | 2020-10-292 | 196 | DIBBS |
| 5999-00-816-6439 | 2019-01-04 | 13 | United States |
| 5999-00-816-6439 | 2018-11-305 | 311 | DIBBS |
| 5999-00-816-6439 | 2018-05-130 | 137 | DIBBS |
| 233008 | 2015-01-21 | 25 | us |
| 233008 | 2013-03-84 | 1310 | US |
| 5999-00-816-6439 | 2010-01-22 | 589 | United States |
| 5999-00-816-6439 | 2010-01-22 | 103 | United States |
| 5999-00-816-6439 | 2009-10-281 | 692 | DIBBS |
| 5999-00-816-6439 | 2007-05-143 | 16 | Canada |
Cross Reference | NSN 5999-00-816-6439
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23-3008 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 23-3008 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6956ED518 PC 1B | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6962ED3449 PC 1B | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6968ED516 PC1B | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6968ED516 PC2B | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-00-816-6439
Related Products | NSN 5999-00-816-6439
Technical Data | NSN 5999-00-816-6439
| Characteristic | Specifications |
|---|---|
| STRUCTURAL DESIGN | NONPILE-UP |
| CONTACT QUANTITY | 2 |
| GOVERNMENT AGENCY CONTROLLING CONTACT | CUTLER-HAMMER INC. |
| CONTACT ITEM NAME ASSIGNED BY GOVERNMENT AGENCY | CONTACT |
| CONTACT IDENTIFYING NUMBER ASSIGNED BY GOVERNMENT AGENCY | PART NO. 23-2963-2 |

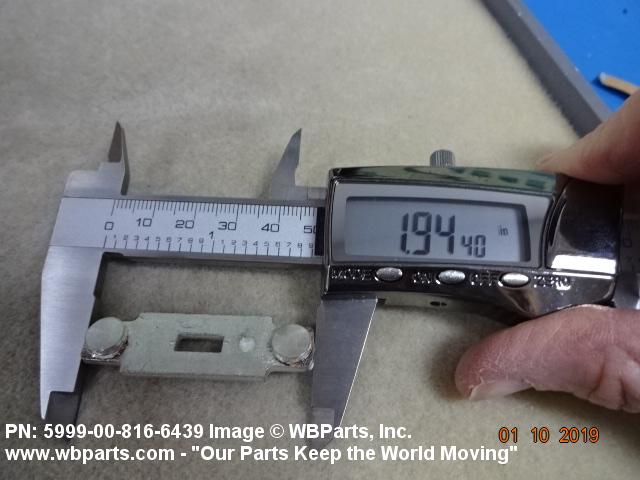

| OVERALL LENGTH | 1.937 INCHES NOMINAL |

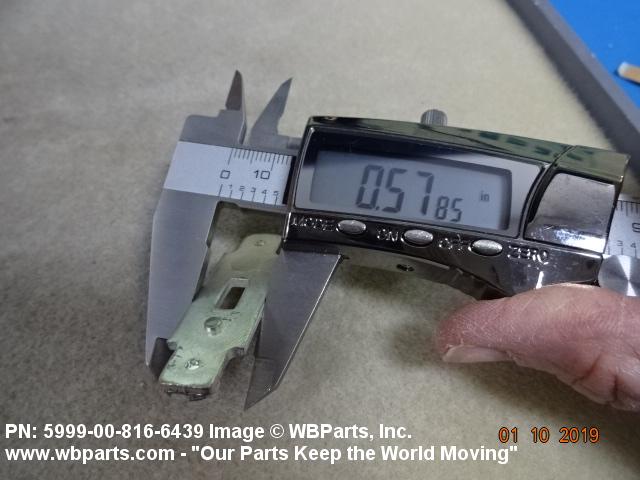

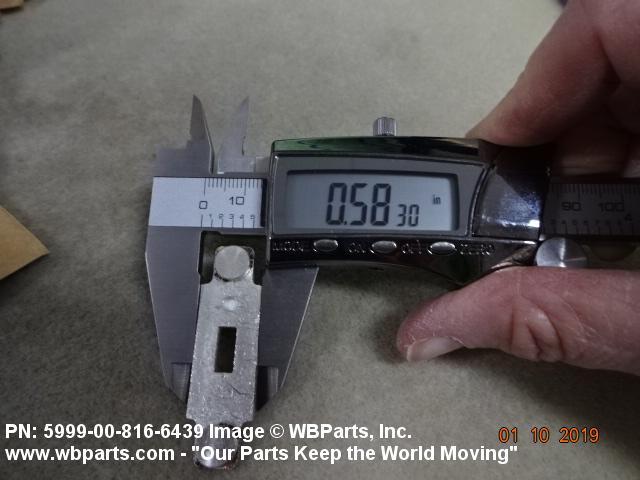

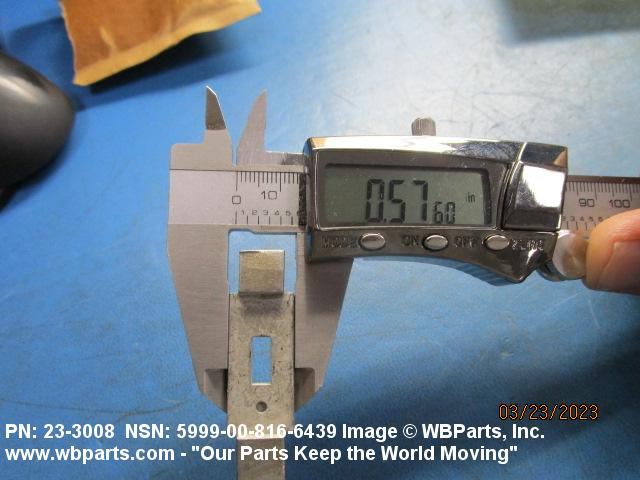

| OVERALL WIDTH | 0.575 INCHES NOMINAL |

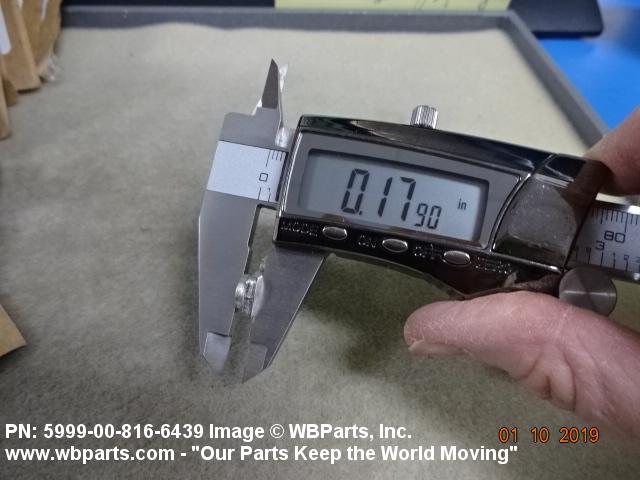

| OVERALL THICKNESS | 0.179 INCHES NOMINAL |

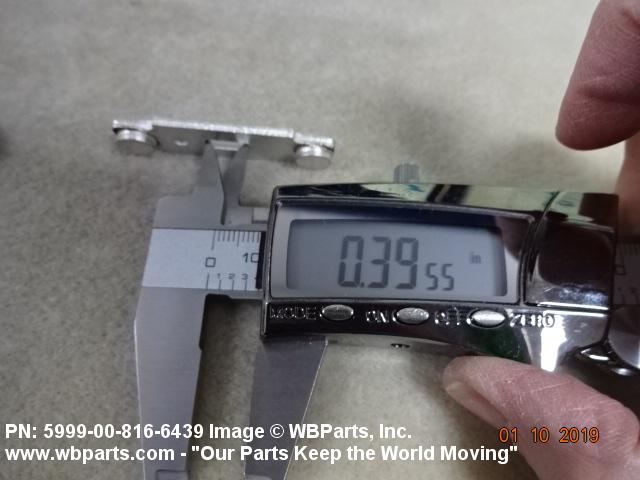

| MOUNTING CONFIGURATION | ONE MTG SLOT 0.395 IN. LG BY 0.167 IN. W |
| MANUFACTURERS CODE | 27192 |
| DESIGN CONTROL REFERENCE | 23-3008 |
Restrictions/Controls & Freight Information | NSN 5999-00-816-6439
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-816-6439
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
