NSN 5999-00-702-8988 T1220016H, T12-2001-6H, P239
Product Details | ELECTRICAL SHIELD RETAINER
5999-00-702-8988 An item specifically designed to position and restrain the movement of an electrical shield in relation to another item. Retainer must not be an integral part of the shield.
Part Alternates: T1220016H, T12-2001-6H, P239, 5999-00-702-8988, 00-702-8988, 5999007028988, 007028988
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-702-8988 | 16130 ( RETAINER, ELECTRICAL SHIELD ) |
Drawings & Photos | NSN 5999-00-702-8988
Cross Reference | NSN 5999-00-702-8988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P239 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| P239 | 3B4M0 | LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS |
| P239 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| P239 | 92674 | A T AND T TECNOLOGIES INC SUB OF AMERICAN TELEPHONE AND |
| T12-2001-6H | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| T12-2001-6H | 3B4M0 | LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS |
| T12-2001-6H | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| T12-2001-6H | 92674 | A T AND T TECNOLOGIES INC SUB OF AMERICAN TELEPHONE AND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5999-00-702-8988
Related Products | NSN 5999-00-702-8988
Technical Data | NSN 5999-00-702-8988
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| SURFACE TREATMENT | CHROMATE |

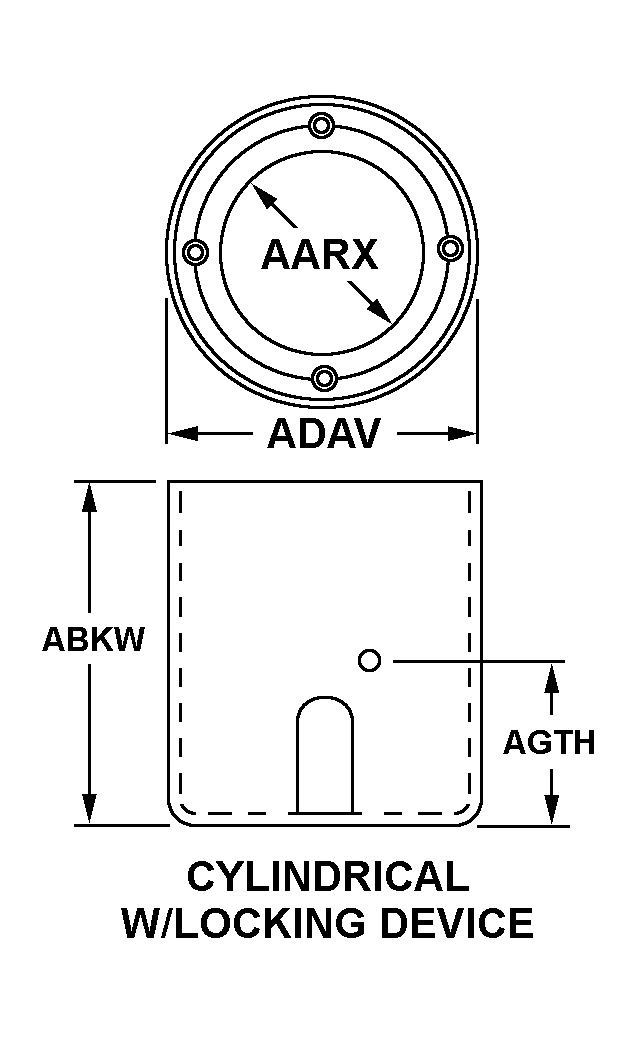

| STYLE DESIGNATOR | 66B CYLINDRICAL W/LOCKING DEVICE |
| INSIDE DIAMETER | 1.130 INCHES NOMINAL |
| OVERALL HEIGHT | 2.188 INCHES NOMINAL |
| OVERALL DIAMETER | 1.875 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SURFACE TO LOCKING DEVICE | 1.875 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| BOLT CIRCLE DIAMETER | 1.500 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
| MANUFACTURERS CODE | 92674 |
| DESIGN CONTROL REFERENCE | T12-2001-6H |
Restrictions/Controls & Freight Information | NSN 5999-00-702-8988
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-702-8988
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
