NSN 5999-00-614-3791 A1208854, TXB3032037R, TXB3-032-037R
Product Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-00-614-3791 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Part Alternates: A1208854, TXB3032037R, TXB3-032-037R, 144A9771P1, 2604T5E, 260-4T5E, 2810110006, 2810-11-0006, 366M18090, 973106A3610S847, 5999-00-614-3791, 00-614-3791, 5999006143791, 006143791
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 FEB 1975 | 00-614-3791 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-00-614-3791
Cross Reference | NSN 5999-00-614-3791
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 144A9771P1 | 89954 | BAE SYSTEMS CONTROLS INC. |
| 260-4T5E | 05820 | EG AND G WAKEFIELD ENGINEERING |
| 2810-11-0006 | 34280 | WAVETEK RF PRODUCTS INC |
| 366M18090 | 58880 | MEGGITT (NEW HAMPSHIRE), INC |
| A1208854 | F9111 | THALES AVIONICS SAS DIV AVIONICS |
| TXB3-032-037R | 98978 | CTS ELECTRONIC COMPONENTS CALIFORNIA INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-614-3791
Technical Data | NSN 5999-00-614-3791
| Characteristic | Specifications |
|---|---|

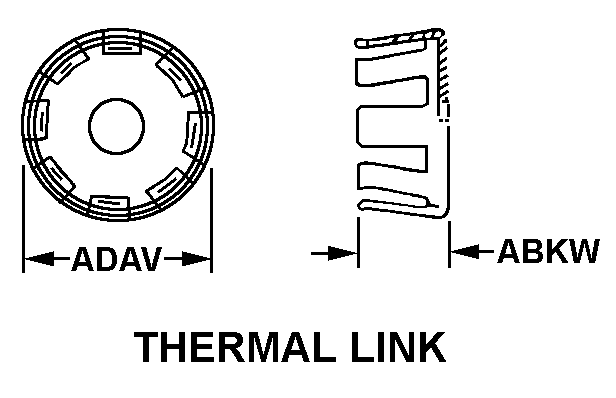

| BODY STYLE | 19A THERMAL LINK |
| OVERALL HEIGHT | 0.370 INCHES NOMINAL |
| OVERALL DIAMETER | 0.380 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY 230 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE AND MIL-C-81021 MIL SPEC SINGLE MATERIAL RESPONSE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED HOLE SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.130 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2B SINGLE MOUNTING FACILITY |
Restrictions/Controls & Freight Information | NSN 5999-00-614-3791
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
