NSN 5999-00-614-0126 227B391H01, 00-614-0126, 006140126
Product Details | ELECTRICAL CLIP
5999-00-614-0126 A clip designed to electrically connect items and components. Its primary function is to make a quick and/or temporary electrical connection. Includes alligator and crocodile test clips, battery clips, contact clips, electron tube clips, resistor clips, or the like. For electron tube grid and plate cap clips with wire leads attached, see LEAD, ELECTRICAL. Excludes CLAMP, ELECTRICAL; CLIP, SPRING TENSION; and FUSEHOLDER (as modified).
Part Alternates: 227B391H01, 5999-00-614-0126, 00-614-0126, 5999006140126, 006140126
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-614-0126 | 00739 ( CLIP, ELECTRICAL ) |
Drawings & Photos | NSN 5999-00-614-0126
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-614-0126
Technical Data | NSN 5999-00-614-0126
| Characteristic | Specifications |
|---|---|

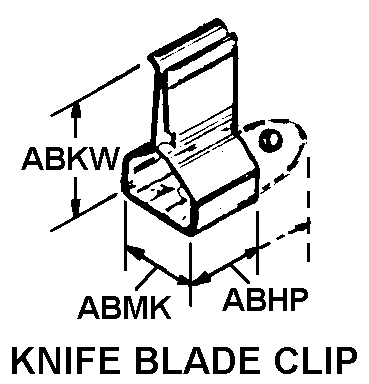

| STYLE DESIGNATOR | A68 KNIFE BLADE CLIP |
| OVERALL LENGTH | 0.425 INCHES NOMINAL |
| OVERALL HEIGHT | 0.796 INCHES NOMINAL |
| OVERALL WIDTH | 0.531 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY 170 OR COPPER ALLOY 172 CONTACT COPPER ALLOY 170 OR COPPER ALLOY 172 BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-533,1/4H FED SPEC ALL MATERIAL RESPONSES CONTACT QQ-C-533,1/4H FED SPEC ALL MATERIAL RESPONSES BODY |
| SURFACE TREATMENT | ANY ACCEPTABLE BODY |
| TERMINAL TYPE AND QUANTITY | 1 SPRING CLIP TOP |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.129 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.312 INCHES NOMINAL |
| SLOT ACCOMMODATION WIDTH | 0.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 97942 |
| DESIGN CONTROL REFERENCE | 227B391H01 |
Restrictions/Controls & Freight Information | NSN 5999-00-614-0126
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-614-0126
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
