NSN 5999-00-504-0335 B57L00181, B57L0018-1, RCRP6000501

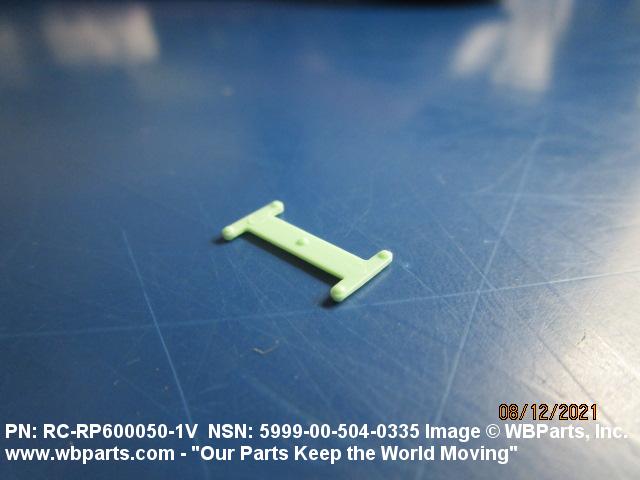

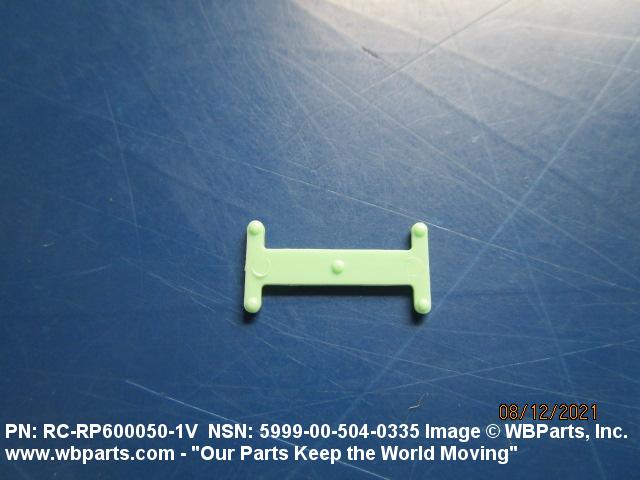

Product Details | ELECTRICAL-ELECTRONIC COMPONENT MOUNTING PAD
5999-00-504-0335 An item fabricated from electrically nonconductive material specifically designed to provide a support for mounting an electrical and/or an electronic component such as a semiconductor device, relay, or resistor into the next higher assembly. It isolates the component from the mounting surface of the next higher assembly, it may act as a strain relief to avoid damage to the component seal, and it may permit soldering of the component to the next higher assembly without damage. It includes holes, notches, or other provisions for physical alignment and spacing of electrical leads and/or other mounting facilities projecting from the component it mounts. It may also afford protection from shock or vibration. It may be either nonthermally conductive which protects the component from temperature changes in the next higher assembly or it may be thermally conductive which permits heat generated in the component to be drained out to a heat sink. For items whose function is electrical insulation only, see INSULATOR, (as modified). Excludes HOLDER, (as modified); RETAINER, (as modified), and SPACER, PLATE.
Part Alternates: B57L00181, B57L0018-1, RCRP6000501, RCRP600050-1, RCRP6000501V, RC-RP600050-1V, 5999-00-504-0335, 00-504-0335, 5999005040335, 005040335
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JUL 1974 | 00-504-0335 | 61934 ( MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT ) |
Drawings & Photos | NSN 5999-00-504-0335
Demand History | NSN 5999-00-504-0335
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-00-504-0335 | 2021-05-132 | 80 | United States |
| RCRP6000501V | 2009-04-95 | 80 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-504-0335
Technical Data | NSN 5999-00-504-0335
| Characteristic | Specifications |
|---|---|

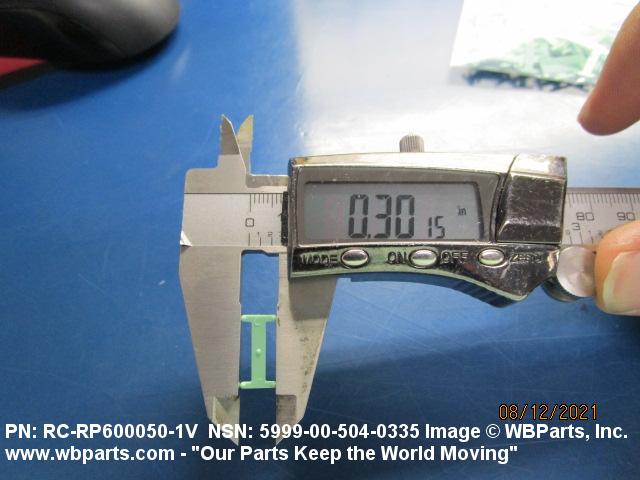

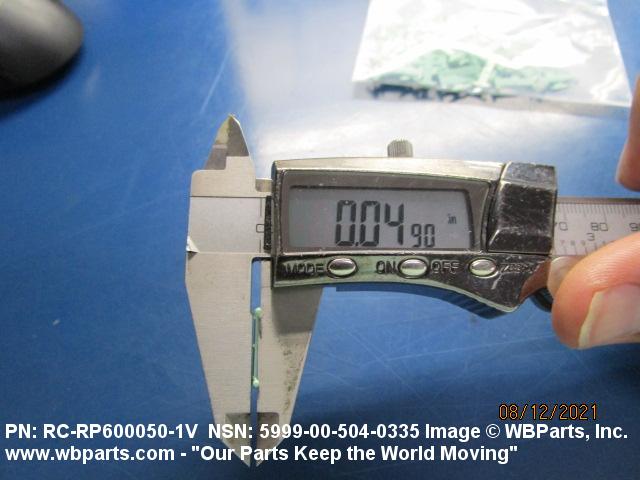

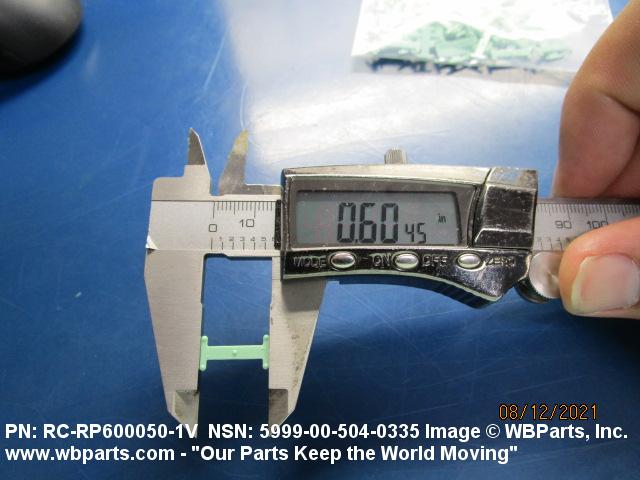

| SPECIAL FEATURES | PLASTIC,0.600 IN. LG,0.305 IN. W,0.050 IN. H |
