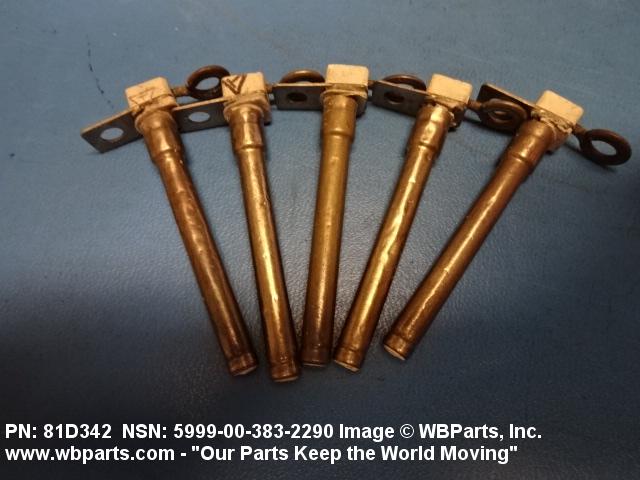

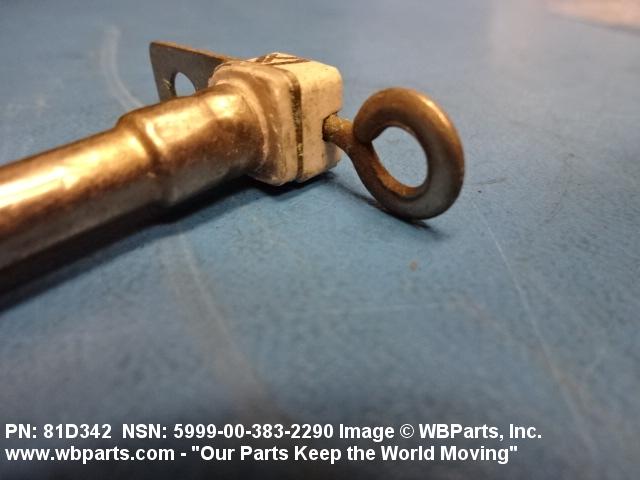

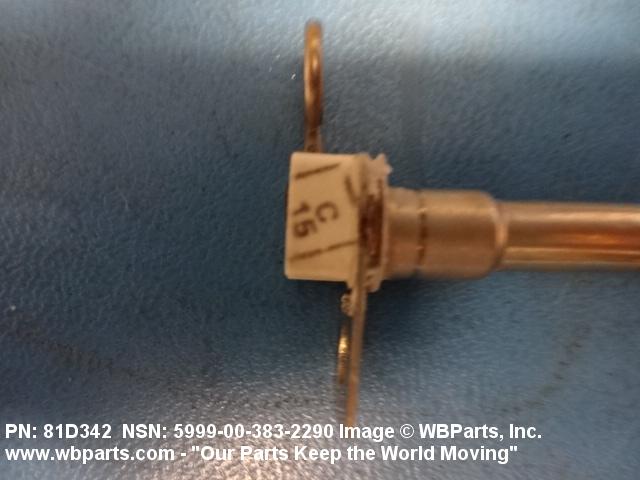

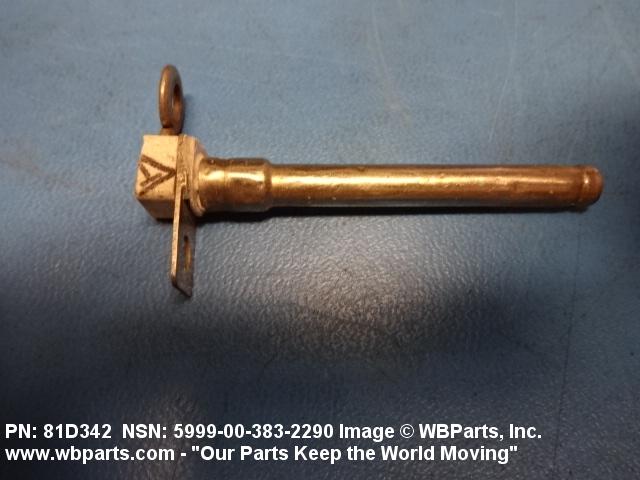

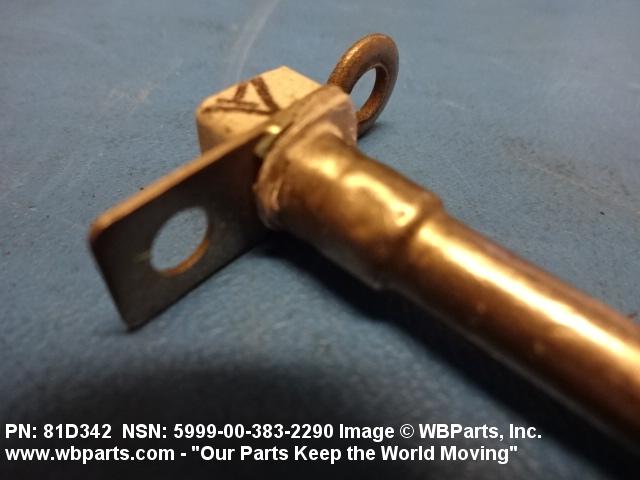

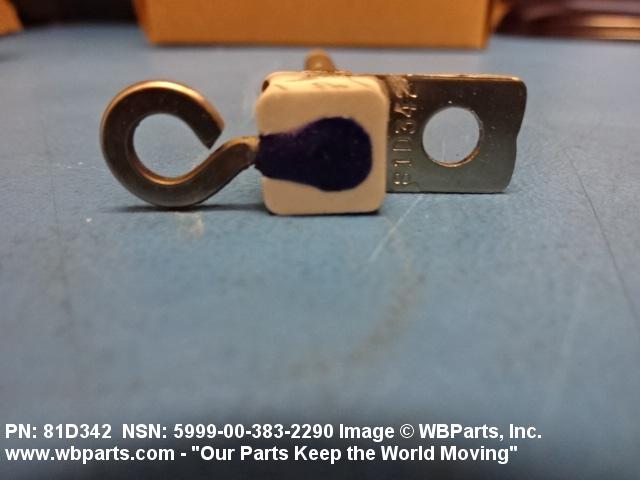

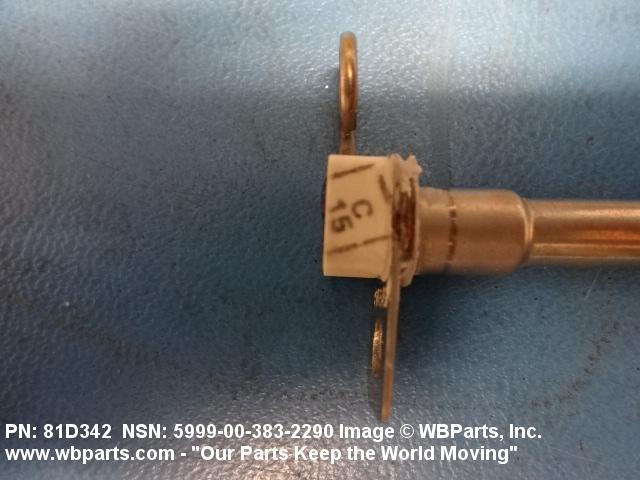

Product Details | THERMAL RELEASE HEATER

5999-00-383-2290 A resistive element which dissipates sufficient heat to melt the fusible material or distort the bimetallic element of an overload protective device when the temperature, as a result of an overload in an electrical circuit, reaches a predetermined value. Excludes COIL (as modified); HEATING ELEMENT, ELECTRICAL; RESISTANCE ELEMENT; RESISTOR, THERMAL; THERMAL RELEASE, CIRCUIT BREAKER; and items with integral bimetallic element, contacts, or fusible material.

Part Alternates: 422196PC78, 81D242, 81D342, 5999-00-383-2290, 00-383-2290, 5999003832290, 003832290

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-383-2290

Drawings & Photos | NSN 5999-00-383-2290


Demand History | NSN 5999-00-383-2290

Part Number Request Date QTY Origin
81D342 2024-05-134 6 DIBBS
81D342 2024-05-123 6 DIBBS
81D342 2023-01-23 5 DIBBS
81D342 2023-01-12 5 DIBBS
5999-00-383-2290 2020-11-310 2 US
81D342 2020-10-303 2 DIBBS
5999-00-383-2290 2017-09-268 7 United States
5999-00-383-2290 2017-04-107 7 DIBBS
5999-00-383-2290 2017-04-94 7 DIBBS
5999-00-383-2290 2017-02-40 7 DIBBS
5999-00-383-2290 2017-01-29 7 DIBBS
5999-00-383-2290 2016-07-187 7 DIBBS
5999-00-383-2290 2016-06-173 7 DIBBS
5999-00-383-2290 2016-05-140 7 DIBBS
5999-00-383-2290 2015-07-190 7 DIBBS
5999-00-383-2290 2015-06-179 7 DIBBS
5999-00-383-2290 2015-06-153 7 DIBBS
5999-00-383-2290 2015-05-134 7 DIBBS

Cross Reference | NSN 5999-00-383-2290

Part Number Cage Code Manufacturer
422196PC78 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
81D242 02989 GENERAL ELECTRIC CO GE DRIVE SYSTEMS
81D342 02989 GENERAL ELECTRIC CO GE DRIVE SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5999-00-383-2290

Technical Data | NSN 5999-00-383-2290

Characteristic Specifications
MOUNTING FACILITY TYPE AND QUANTITY 1 UNTHREADED HOLE

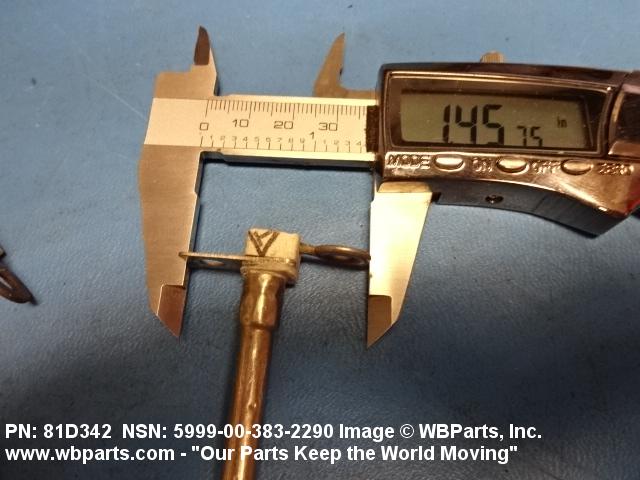

MOUNTING HOLE DIAMETER 0.188 INCHES NOMINAL

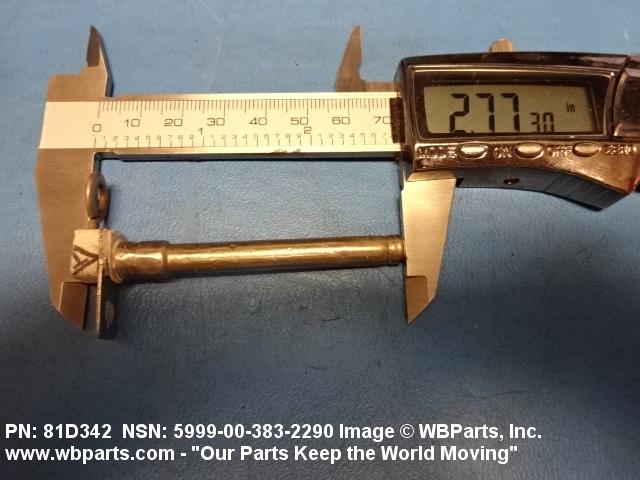

OVERALL LENGTH 2.750 INCHES NOMINAL
OVERALL HEIGHT 1.438 INCHES NOMINAL
OVERALL WIDTH 0.438 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5999-00-383-2290

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061300 CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
