NSN 5999-00-248-2019 09003111, 00-248-2019, 002482019
Product Details | ELECTRICAL CONTACT
5999-00-248-2019 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: 09003111, 5999-00-248-2019, 00-248-2019, 5999002482019, 002482019
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 FEB 1969 | 00-248-2019 | 00443 ( CONTACT, ELECTRICAL ) |
Drawings & Photos | NSN 5999-00-248-2019
Cross Reference | NSN 5999-00-248-2019
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 09003111 | 14028 | SYPRIS ELECTRONICS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-248-2019
Technical Data | NSN 5999-00-248-2019
| Characteristic | Specifications |
|---|---|

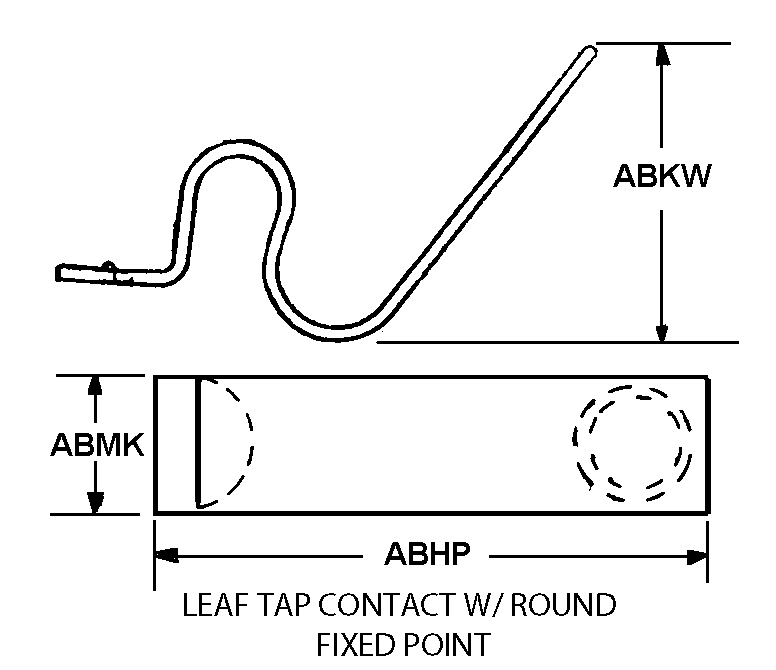

| STYLE DESIGNATOR | A26C LEAF TAP CONTACT W/ROUND FIXED POINT |
| OVERALL LENGTH | 0.620 INCHES NOMINAL |
| OVERALL HEIGHT | 0.060 INCHES NOMINAL |
| OVERALL WIDTH | 0.250 INCHES NOMINAL |
| POINT DIAMETER | 0.125 INCHES NOMINAL |
| POINT HEIGHT | ANY ACCEPTABLE |
| MATERIAL | COPPER ALLOY 170 OR COPPER ALLOY 172 CONTACT COPPER ALLOY 170 OR COPPER ALLOY 172 BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-533 FED SPEC ALL MATERIAL RESPONSES CONTACT QQ-C-533 FED SPEC ALL MATERIAL RESPONSES BODY |
| SURFACE TREATMENT | SILVER CONTACT SILVER BODY |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 1 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | EXTERNAL SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5999-00-248-2019
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-248-2019
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
