NSN 5999-00-243-6500 MS2749320, MS27493-20, MS2749420
Product Details | ELECTRICAL CONTACT
5999-00-243-6500 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: MS2749320, MS27493-20, MS2749420, MS27494-20, M39029, M39029/, M39029/58, M39029/58-363, M3902958, M3902958363, M390929/58-363, M39092958363, A03536, BIN363, BIN-363, CN09710200, CN0971-0200, FE1900005002N, FE190-0005-002N, MIL-C-39029/58, MILC3902958, PC01000200, PC-0100-0200, T3402036LD, T3-4020-36LD, TM20W1DJ5, VG96912P20, 5M.4593.221.70, 5M459322170, 78898017, 7889-8017, 85990903, 8599-0903, 99128248, 0301997020, 030-1997-020, 10251415205, 10-251415-205, 1099894B, 244900200700, 24490-0200-700, 24490-0200-7000, 3152020106, 315-2020-106, 3556010, 3590608080, 359-0608-080, 3894120, 38941-20, 39585001, 39585-001, 4180300002, 418-0300-002, 42329982005, 42329-982-00-5, 503424000200, 5034-2400-0200, 5353404, 535340-4, 5999-00-243-6500, 00-243-6500, 5999002436500, 2449002007000, 002436500
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 NOV 1970 | 00-243-6500 | 00443 ( CONTACT, ELECTRICAL ) |

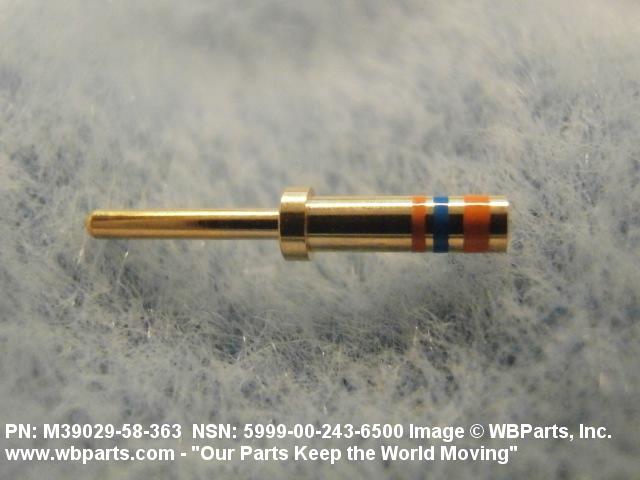

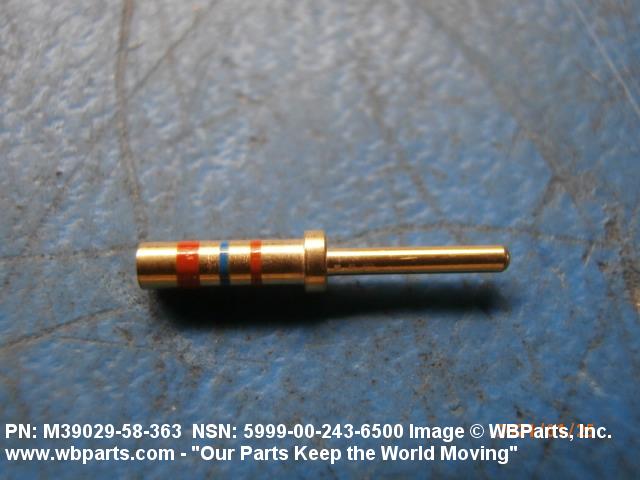

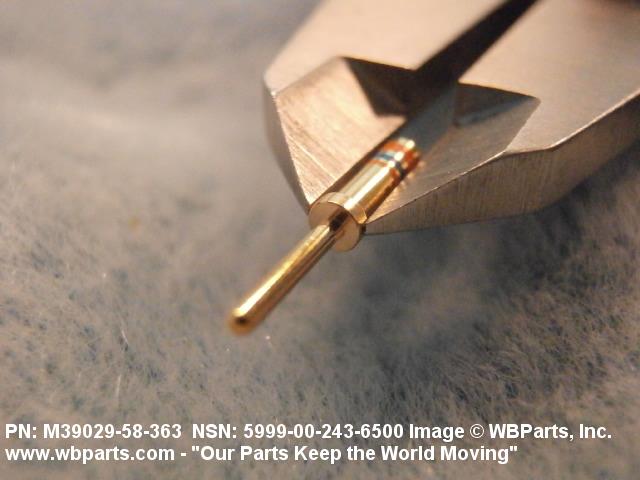

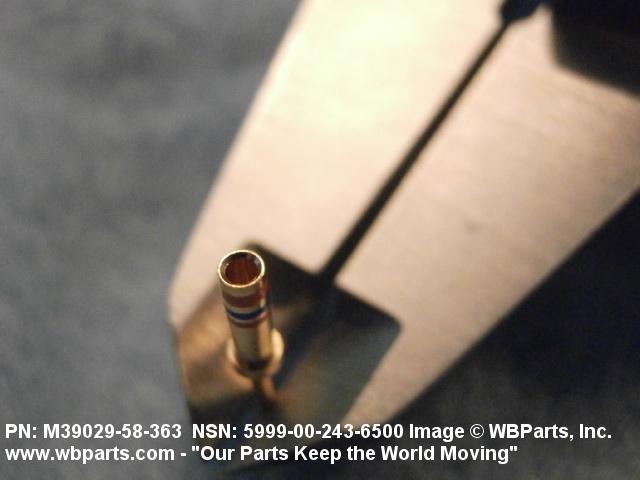

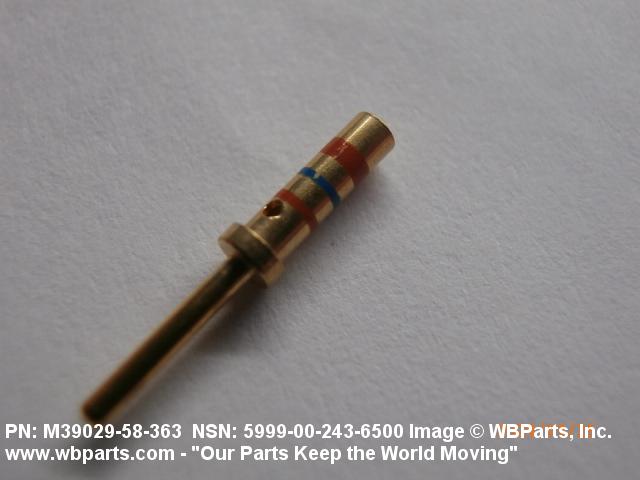

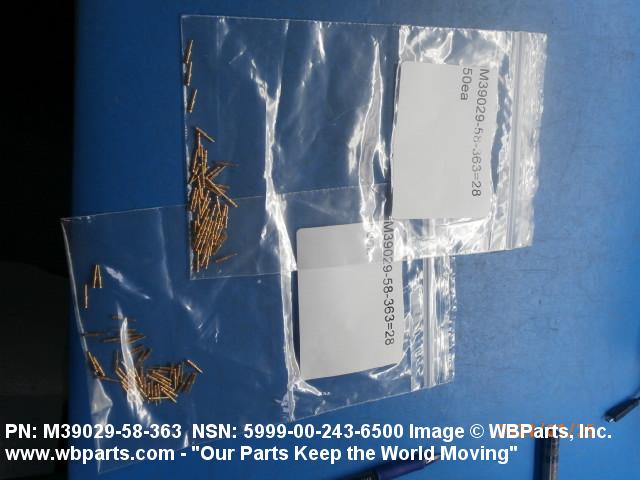

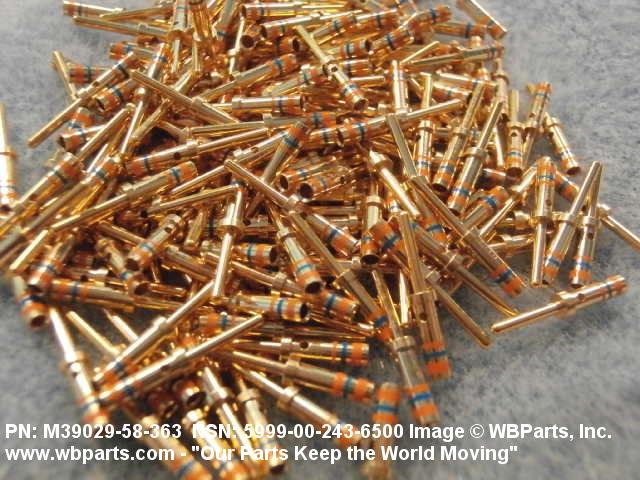

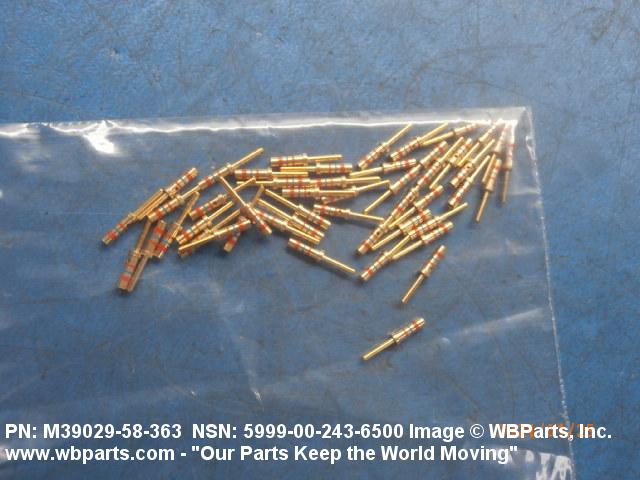

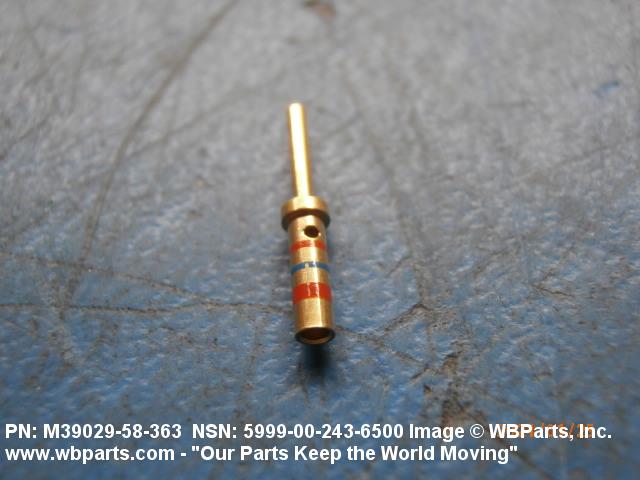

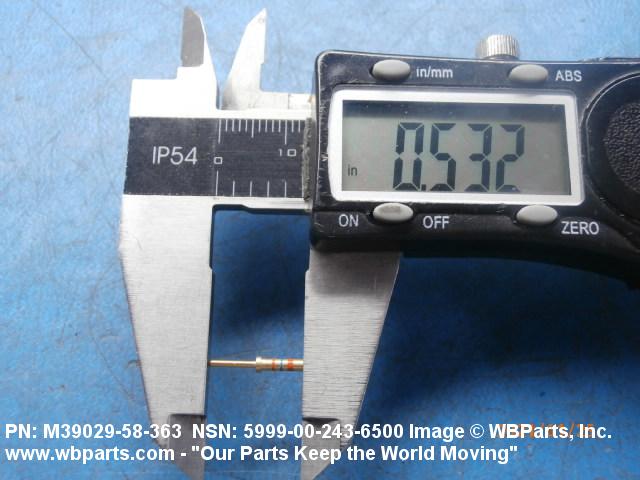

Drawings & Photos | NSN 5999-00-243-6500
Demand History | NSN 5999-00-243-6500
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-00-243-6500 | 2024-10-280 | 89000 | DIBBS |
| M3902958363 | 2021-05-145 | 1 | MX |
| M3902958363 | 2021-05-145 | 1 | MX |
| 5999-00-243-6500 | 2021-01-19 | 100 | United States |
| 5999-00-243-6500 | 2020-08-218 | 20 | US |
| 5999-00-243-6500 | 2020-08-218 | 20 | US |
| 5999-00-243-6500 | 2019-12-346 | 2 | United States |
| 5999-00-243-6500 | 2019-07-192 | 76 | United States |
| 5999-00-243-6500 | 2019-06-165 | 18 | United States |
| 5999-00-243-6500 | 2019-02-34 | 219000 | DIBBS |
| 5999-00-243-6500 | 2019-01-23 | 24 | India |
| 5999-00-243-6500 | 2018-10-299 | 550 | Singapore |
| 5999-00-243-6500 | 2018-05-134 | 84200 | DIBBS |
| 5999-00-243-6500 | 2018-01-24 | 2 | United States |
| 5999-00-243-6500 | 2017-10-289 | 59200 | DIBBS |
| M3902958363 | 2017-09-270 | 732 | United States |
| M3902958363 | 2017-09-270 | 732 | United States |
| M39029/58-363 | 2017-05-139 | 200 | Taiwan |
| 5999-00-243-6500 | 2017-02-37 | 36641 | DIBBS |
| M3902958363 | 2016-11-328 | 100 | AU |
| 5999-00-243-6500 | 2015-10-302 | 100200 | DIBBS |
| M39029/58-363 | 2015-04-91 | 2170 | Greece |
| 5999-00-243-6500 | 2013-12-359 | 105100 | DIBBS |
| M3902958363 | 2013-04-120 | 25 | United States |
| 5999-00-243-6500 | 2013-02-32 | 28000 | DIBBS |
| M39029/58-363 | 2012-04-110 | 320 | PK |
| 5999-00-243-6500 | 2011-11-318 | 32231 | DIBBS |
| M3902958363 | 2011-02-53 | 350 | us |
| M3902958363 | 2009-05-141 | 6 | US |
| M3902958363 | 2007-11-319 | 5000 | US |
| M3902958363 | 2007-09-270 | 10000 | Mexico |
| 5999-00-243-6500 | 2007-08-225 | 147700 | DIBBS |
| 5999-00-243-6500 | 2007-07-199 | 22999 | DIBBS |
| 5999-00-243-6500 | 2007-06-158 | 24409 | DIBBS |
| 5999-00-243-6500 | 2007-01-26 | 5495 | DIBBS |
Cross Reference | NSN 5999-00-243-6500
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 030-1997-020 | 71468 | ITT CORPORATION DBA I T T CANNON |
| 030-1997-020 | D1371 | ITT CANNON GMBH |
| 10-251415-205 | C7057 | AMPHENOL-AIRLB GMBH |
| 10-251415-205 | F6162 | AMPHENOL SOCAPEX |
| 1099894B | K0967 | MBDA UK LTD |
| 24490-0200-700 | U4338 | THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS |
| 24490-0200-7000 | U4338 | THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS |
| 315-2020-106 | 55104 | TRI-STAR ELECTRONICS INTERNATIONAL, INC. |
| 3556010 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| 359-0608-080 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 38941-20 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
| 39585-001 | D9853 | ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH |
| 418-0300-002 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 42329-982-00-5 | K4556 | BRITISH AEROSPACE DEFENCE SYSTEMS LTD T/A BAE SYSTEMS |
| 42329-982-00-5 | KC1M9 | BAE SYSTEMS MARITIME SERVICESLIMITED |
| 430-8584-120 | D1371 | ITT CANNON GMBH |
| 5034-2400-0200 | 99447 | COOPER INTERCONNECT, INC. DIV INTERCONNECT |
| 535340-4 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5M.4593.221.70 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 7889-8017 | U6441 | UTC AEROSPACE SYSTEMS LIMITED DBA GOODRICH SENSORS AND INTEGRATED |
| 8599-0903 | 59610 | SOURIAU INC |
| 99128248 | F6481 | THALES SA |
| A03536 | K0967 | MBDA UK LTD |
| AS39029/58-363 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BIN-363 | 16236 | DLA LAND AND MARITIME |
| CN0971-0200 | 13556 | LABINAL COMPONENTS AND SYSTEMS INC CINCH MILITARY AEROSPACE DIV |
| FE190-0005-002N | K3902 | BAE SYSTEMS MARITIME SERVICES |
| M39029/ | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39029/58 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39029/58-363 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M390929/58-363 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-39029/58 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS27493-20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27494-20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PC-0100-0200 | 60197 | GBENJO LAW GROUP THE |
| T3-4020-36LD | 49367 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| TM20W1DJ5 | 09922 | SOURIAU USA, INC. |
| VG96912P20 | D9477 | BUNDESAMT FUER AUSRUESTUNG, |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-243-6500
Technical Data | NSN 5999-00-243-6500
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A9 PIN CONTACT |

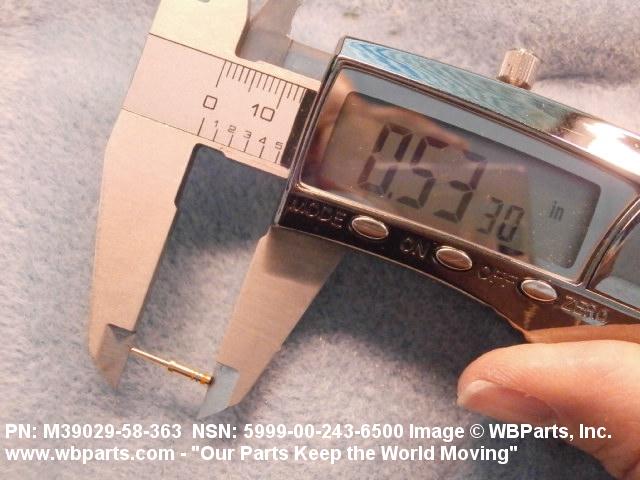

| OVERALL LENGTH | 0.531 INCHES NOMINAL |

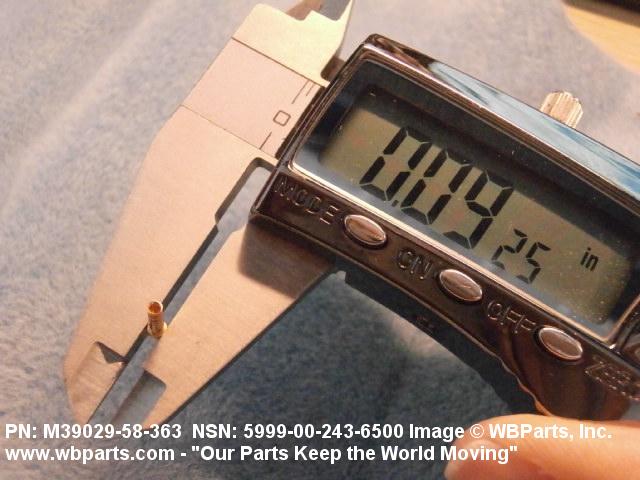

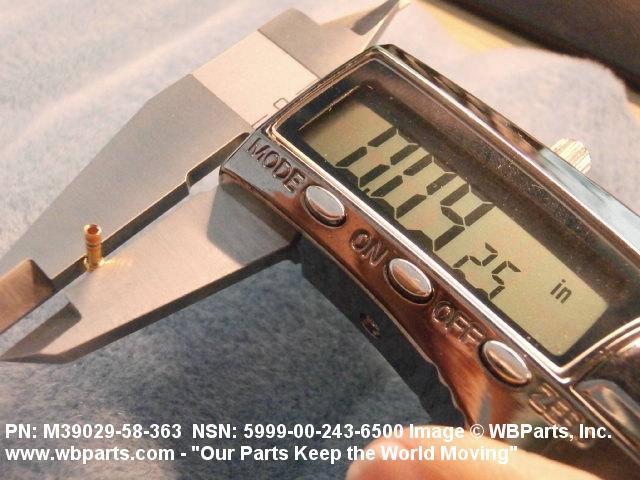

| OVERALL DIAMETER | 0.091 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY CONTACT COPPER ALLOY BODY |
| SURFACE TREATMENT | GOLD BODY AND CONTACT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE BODY AND CONTACT |

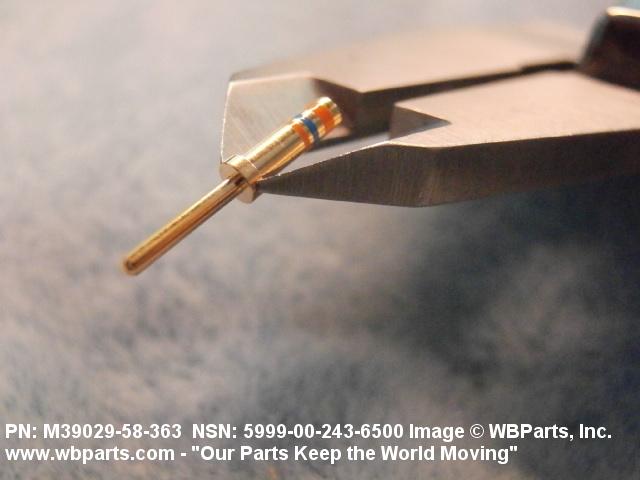

| IDENTIFICATION CODE COLOR | ORANGE AND BLUE AND ORANGE |
| TERMINAL TYPE AND QUANTITY | 1 CRIMP AXIALLY AT ONE END |
| MOUNTING METHOD | FORCE FIT |

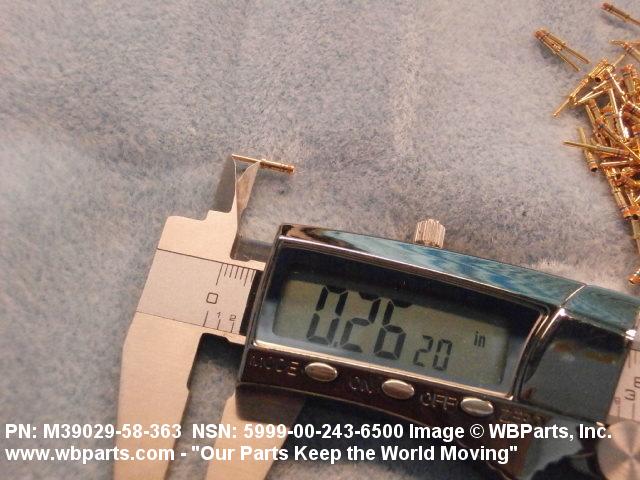

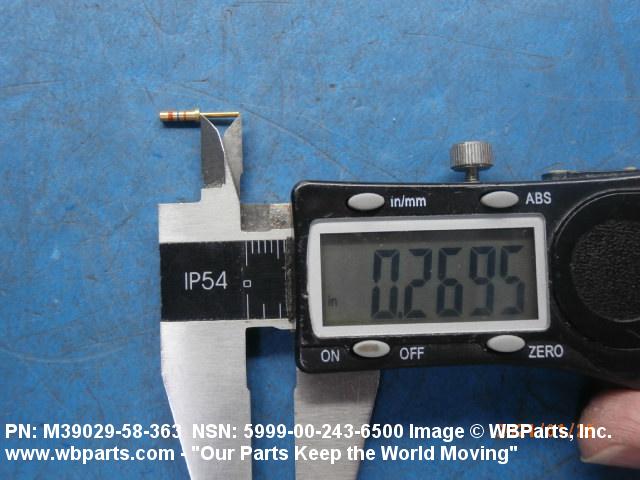

| PIN LENGTH | 0.262 INCHES MINIMUM AND 0.271 INCHES MAXIMUM |

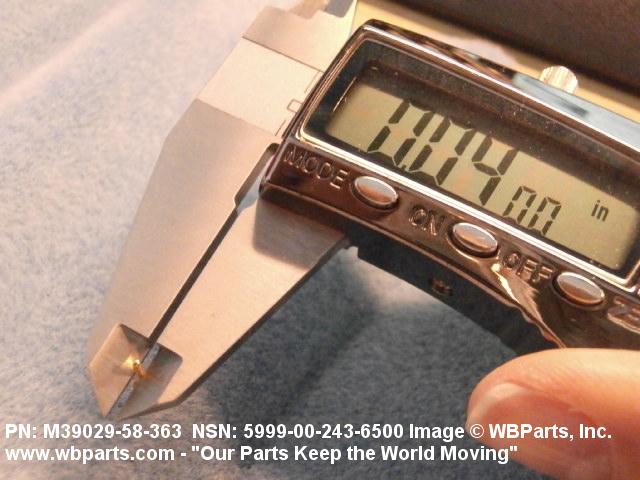

| PIN DIAMETER | 0.039 INCHES MINIMUM AND 0.041 INCHES MAXIMUM |

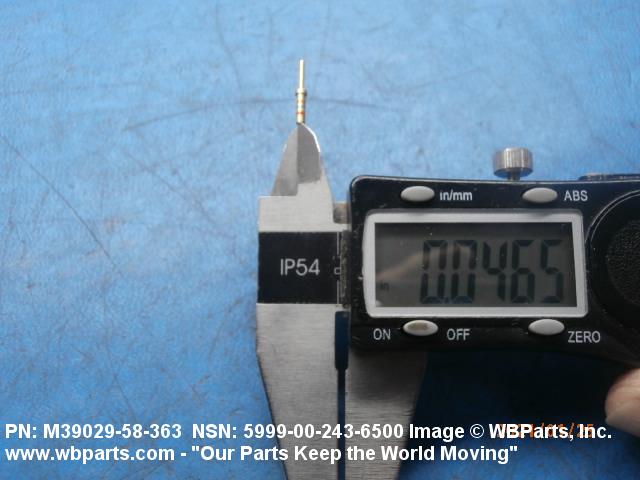

| CABLE ENTRANCE DIAMETER | 0.046 INCHES MINIMUM AND 0.048 INCHES MAXIMUM |
| SPECIAL FEATURES | BASIC IDENTIFICATION NUMBER-BIN-363 |
| TEST DATA DOCUMENT | 81349-MIL-C-39029 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-39029/58 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | BODY AND CONTACT SURFACES GOLD |
| III CRIMPING TOOL IDENTIFYING NUMBER | M22520/1-01 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-39029/58 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39029/58-363 |
Restrictions/Controls & Freight Information | NSN 5999-00-243-6500
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
