NSN 5999-00-190-1887 MS31631212, MS3163-12-12, M39029/30-12-12
Product Details | ELECTRICAL CONTACT
5999-00-190-1887 An item consisting of an electrically conductive material designed to furnish a surface which will physically and electrically meet another conducting surface for the purpose of transferring electrical energy and/or opening and closing circuits. Includes moving contacts which make and/or slide over stationary contacts or other stationary conductive material to a resulting fixed position. Excludes items which are used in conjunction with continually moving surfaces or which make contact by gripping action of the contact surfaces. See also CLIP, ELECTRICAL; CLAMP, ELECTRICAL; BRUSH, ELECTRICAL CONTACT; PLUG, TIP; and JACK, TIP.
Part Alternates: MS31631212, MS3163-12-12, M39029/30-12-12, M39029/30-219, M39029301212, M3902930219, M8372330T12, M83723-30T12, AS39029/30, AS3902930, BIN219, BIN-219, MIL-C-39029/30, MILC3902930, 0313115006, 031-3115-006, 10497015133, 10-497015-133, 2CT844, 352250042699, 4180348003, 418-0348-003, 5100-033-12, 5100-077-12, 84684, 846-84 , 5999-00-190-1887, 00-190-1887, 5999001901887, 001901887, 510007712, 510003312
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 DEC 1971 | 00-190-1887 | 00443 ( CONTACT, ELECTRICAL ) |

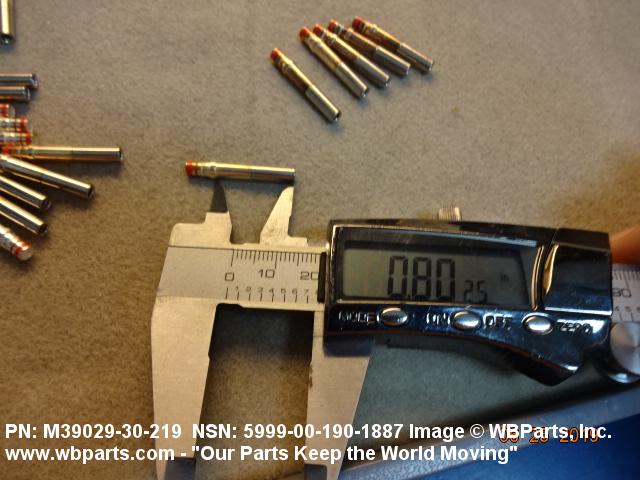

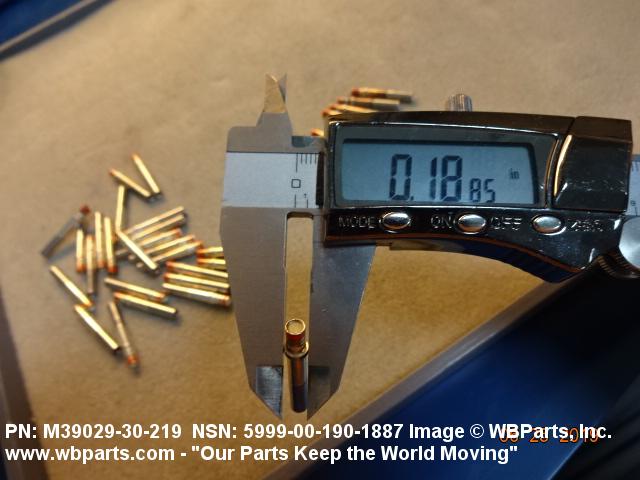

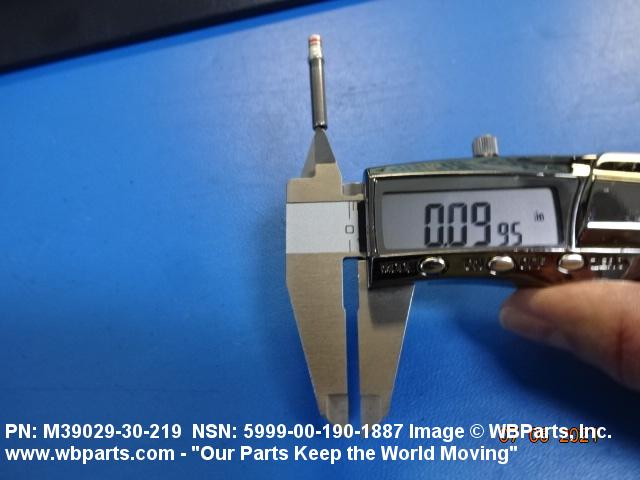

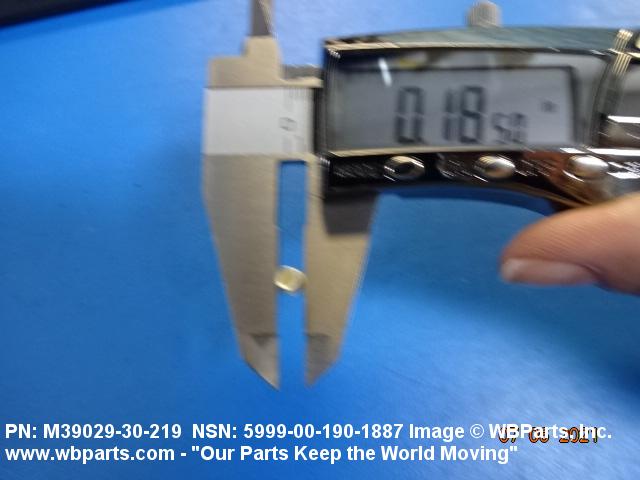

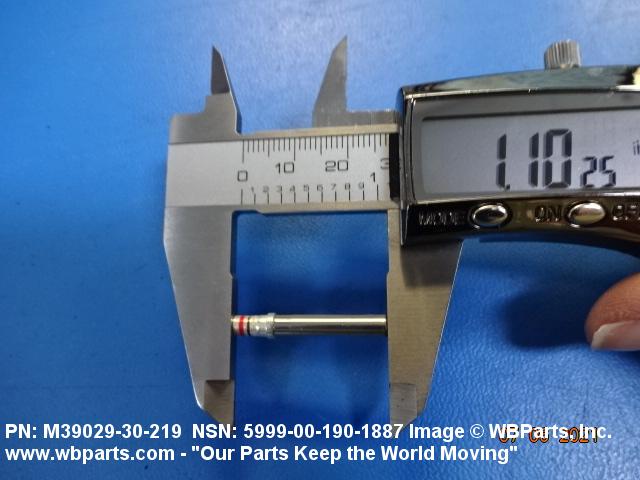

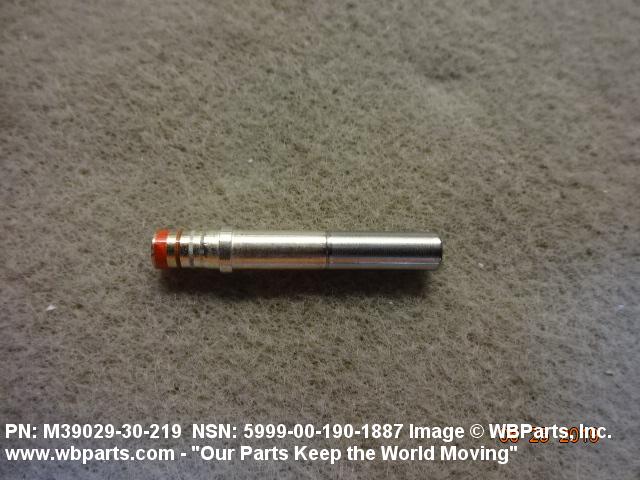

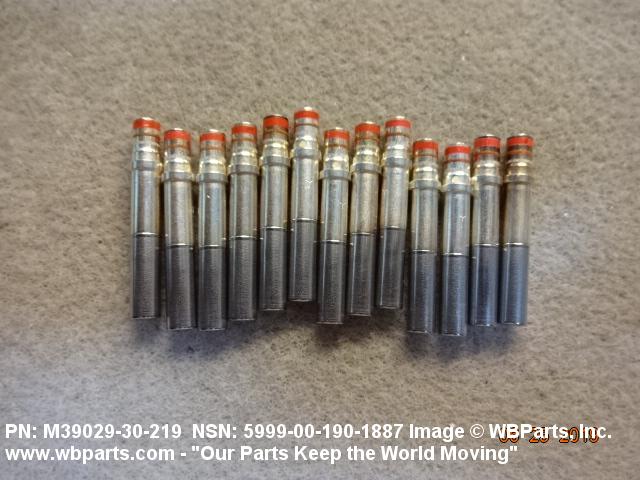

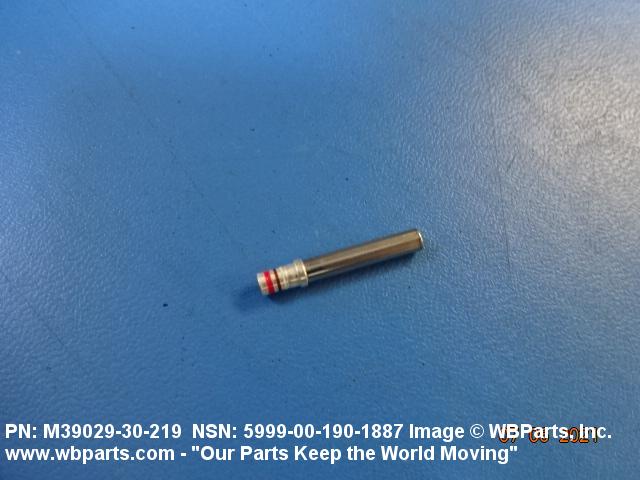

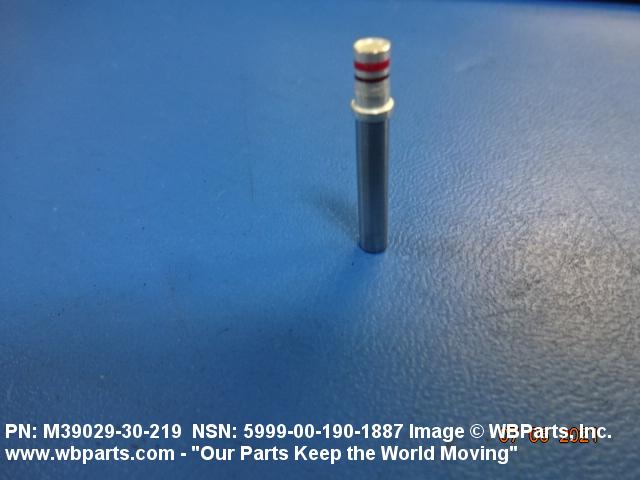

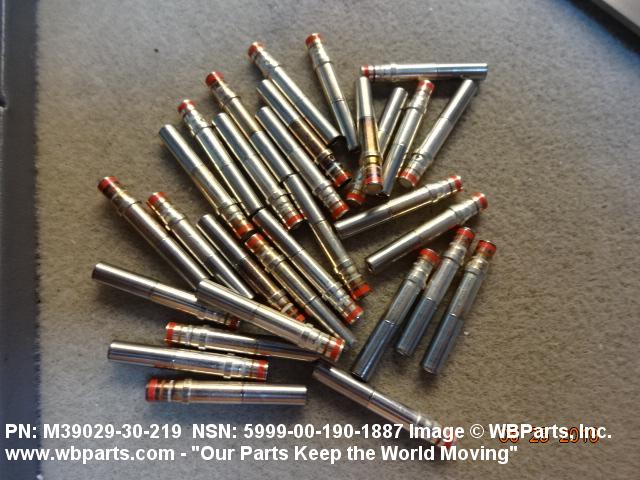

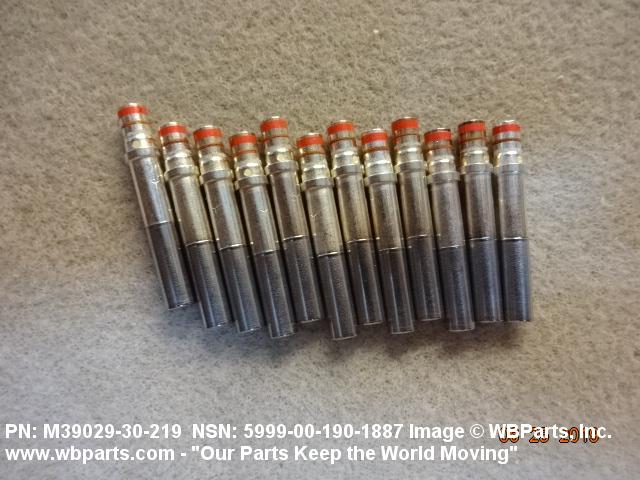

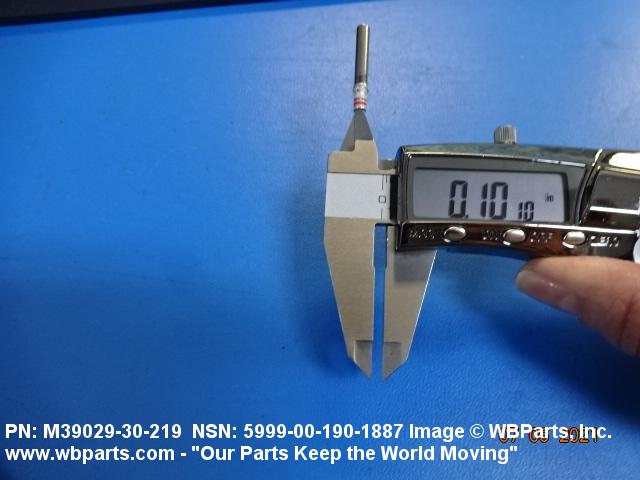

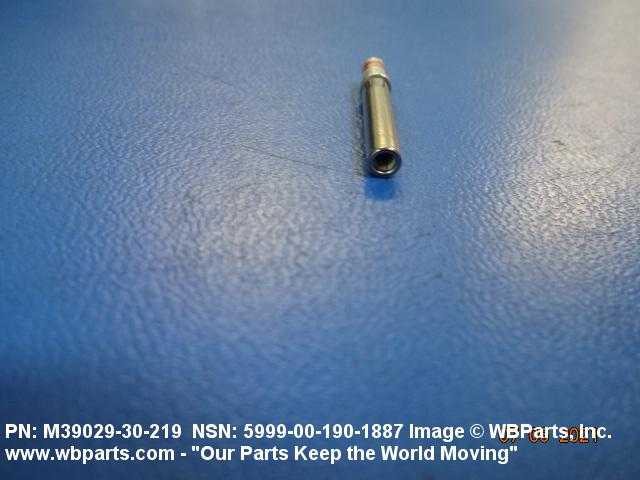

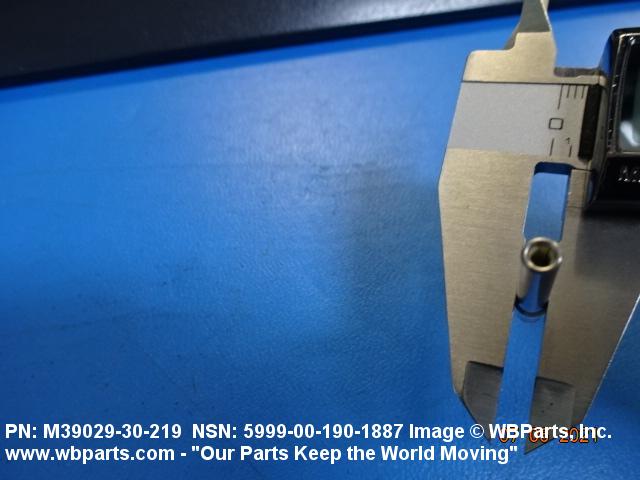

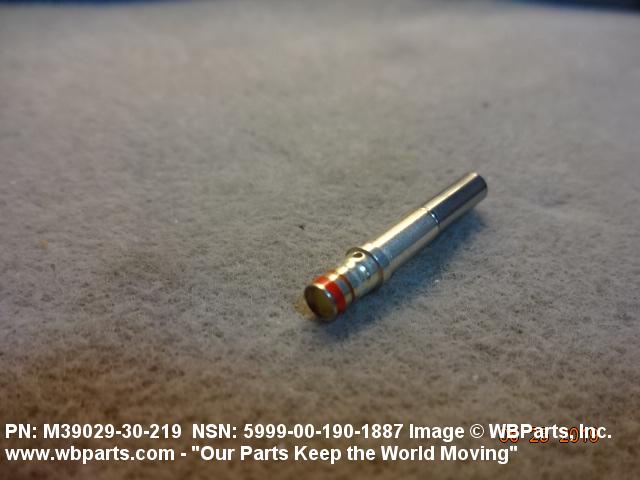

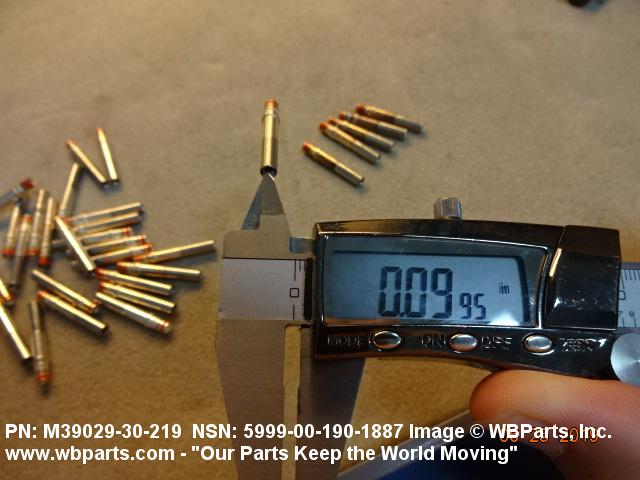

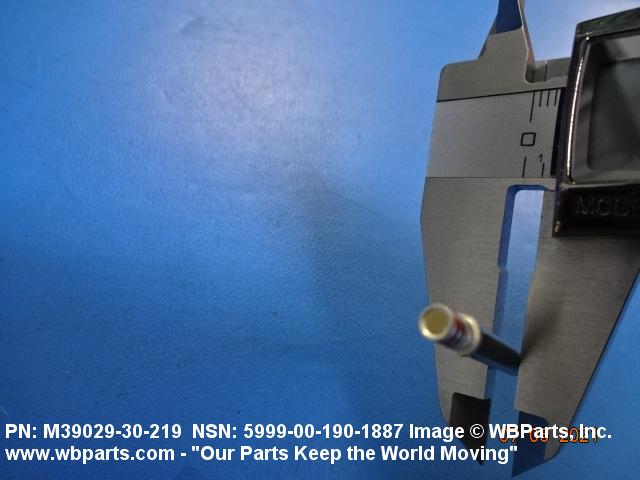

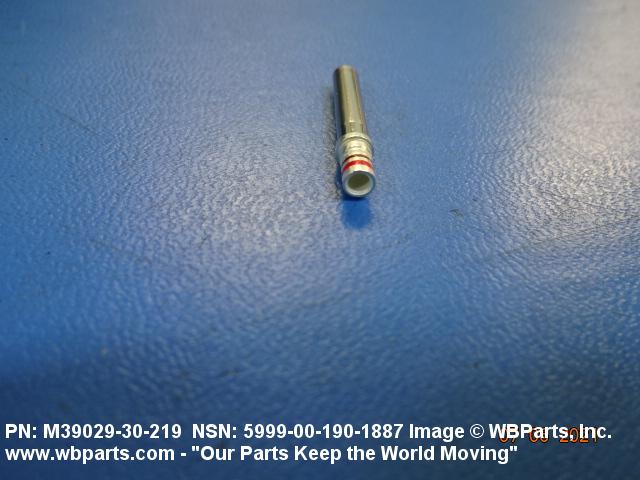

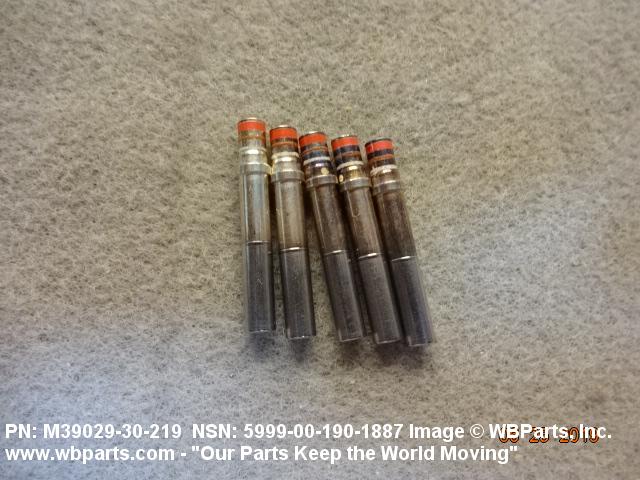

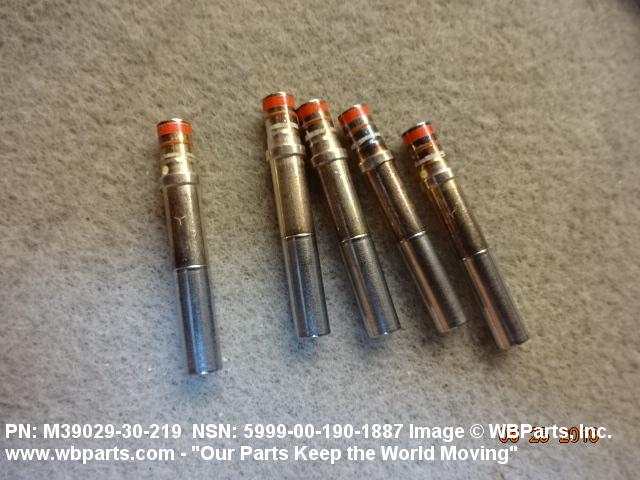

Drawings & Photos | NSN 5999-00-190-1887
Demand History | NSN 5999-00-190-1887
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5999-00-190-1887 | 2024-11-309 | 4654 | DIBBS |
| 5999-00-190-1887 | 2024-10-298 | 4654 | DIBBS |
| M39029301212 | 2024-06-161 | 8 | US |
| M39029/30-219 | 2023-01-05 | 50 | United States |
| M39029301212 | 2021-05-148 | 100 | United States |
| M3902930219 | 2021-05-148 | 100 | United States |
| M3902930219 | 2021-05-145 | 1 | MX |
| 5999-00-190-1887 | 2019-06-168 | 30 | United States |
| 5999-00-190-1887 | 2018-05-128 | 8296 | DIBBS |
| M3902930219 | 2015-07-183 | 3 | Malaysia |
| M39029/30-219 | 2012-04-110 | 100 | PK |
| 5999-00-190-1887 | 2012-04-103 | 8238 | DIBBS |
| M8372330T12 | 2009-05-134 | 4 | Italy |
| 5999-00-190-1887 | 2007-12-360 | 10000 | DIBBS |
| 5999-00-190-1887 | 2007-10-302 | 3000 | DIBBS |
| 5999-00-190-1887 | 2007-09-248 | 18600 | DIBBS |
| 5999-00-190-1887 | 2007-07-197 | 6314 | DIBBS |
| 5999-00-190-1887 | 2007-02-53 | 2668 | DIBBS |
Cross Reference | NSN 5999-00-190-1887
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 031-3115-006 | 71468 | ITT CORPORATION DBA I T T CANNON |
| 10-497015-133 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 2CT844 | 45152 | OSHKOSH CORPORATION |
| 2CT844 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 352250042699 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| 418-0348-003 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 5100-033-12 | 14283 | AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS |
| 5100-077-12 | 50754 | TUFLINE DIV OF XOMOX CORP |
| AS39029/30 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BIN-219 | 16236 | DLA LAND AND MARITIME |
| M39029/30-12-12 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39029/30-219 | 1YKH5 | MGA ENGINEERING CORP |
| M39029/30-219 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M39029/30-219 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83723-30T12 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-39029/30 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3163-12-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5999-00-190-1887
Technical Data | NSN 5999-00-190-1887
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A4 SOCKET CONTACT |
| OVERALL LENGTH | 1.101 INCHES NOMINAL |
| OVERALL DIAMETER | 0.186 INCHES MINIMUM AND 0.189 INCHES MAXIMUM |
| MATERIAL | COPPER ALLOY CONTACT COPPER ALLOY BODY |
| SURFACE TREATMENT | GOLD CONTACT GOLD BODY |
| TERMINAL TYPE AND QUANTITY | 1 CRIMP AXIALLY AT ONE END |
| MOUNTING METHOD | TERMINAL |
| PIN ACCOMMODATION LENGTH | 0.725 INCHES MINIMUM AND 0.765 INCHES MAXIMUM |
| PIN ACCOMMODATION DIAMETER | 0.097 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| CABLE ENTRANCE DIAMETER | 0.098 INCHES MINIMUM AND 0.102 INCHES MAXIMUM |
| SPECIAL FEATURES | BASIC ITEM IDENTIFICATION NUMBER BIN-219 |
| TEST DATA DOCUMENT | 81349-MIL-C-39029 SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | BODY AND CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-39029/30 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39029/30-219 |
Restrictions/Controls & Freight Information | NSN 5999-00-190-1887
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 190500 | VEHICLE PARTS GROUP |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5999-00-190-1887
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | UN | (F402)JET ENGINES(PEGASUS 10) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
