Product Details | ELECTRICAL SHIELD PLATE

5999-00-136-8942 A metallic or metallic coated item which is rigid or semirigid, flat, and generally smooth. Its thickness is small in comparison to both its length and width, and is designed to prevent or reduce stray electro-magnetic and/or electrostatic fields between components or items. It may be used as a mechanical guard. Excludes PLATE (as otherwise modified); SHIELD (as modified); and SPACER, PLATE.

Part Alternates: 9989019, 5999-00-136-8942, 00-136-8942, 5999001368942, 001368942

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG) NSN Assign. NIIN
59 22 JAN 1969 00-136-8942

Drawings & Photos | NSN 5999-00-136-8942


Cross Reference | NSN 5999-00-136-8942

Part Number Cage Code Manufacturer
9989019 18876 U S ARMY AVIATION AND MISSILE COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5999-00-136-8942

Technical Data | NSN 5999-00-136-8942

Characteristic Specifications

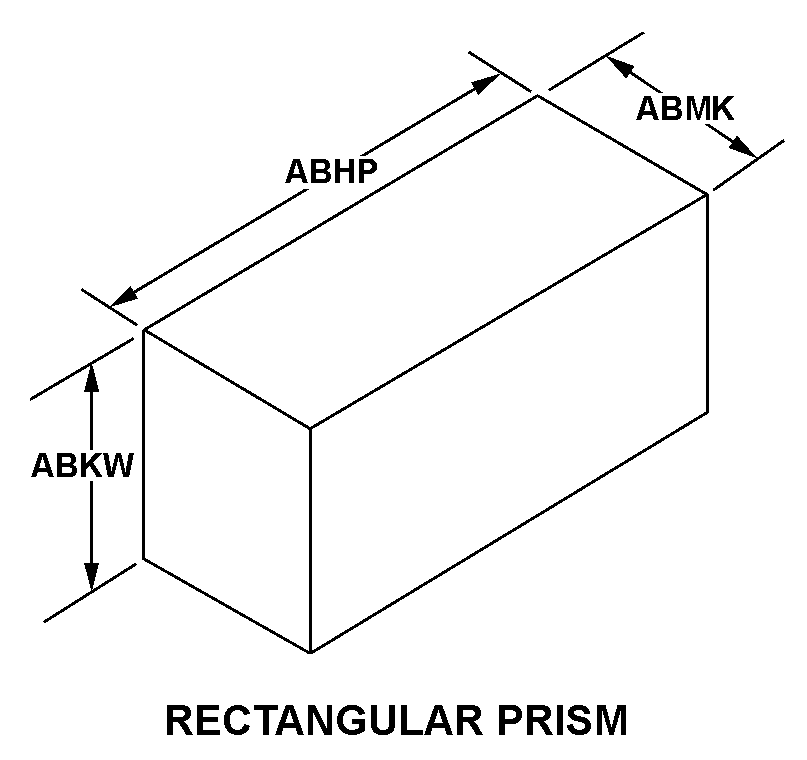

BODY STYLE 25F RECTANGULAR PRISM
OVERALL LENGTH 19.160 INCHES MINIMUM AND 19.200 INCHES MAXIMUM
OVERALL HEIGHT 1.440 INCHES MINIMUM AND 1.480 INCHES MAXIMUM
OVERALL WIDTH 4.860 INCHES MINIMUM AND 4.900 INCHES MAXIMUM
MATERIAL ALUMINUM ALLOY 5052
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-310 FED SPEC SINGLE MATERIAL RESPONSE
SURFACE TREATMENT CHROMATE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE

Restrictions/Controls & Freight Information | NSN 5999-00-136-8942

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 106140 PLATE/SHEET NOI I/S GALVANIZED ETC
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 72D unknown
Originating Activity Code BD U.S. Army Aviation and Missile Command
Redstone Arsenal, AL 35898-5230
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
