NSN 5998-01-458-9532 00100130, 001-00130, 01-458-9532
Product Details | PRINTED CIRCUIT BOARD
5998-01-458-9532 A PRINTED WIRING BOARD having only printed electronic components, such as capacitors, resistors, and the like. For items having a complete individual electrical/electronic function, use applicable item name, such as AMPLIFIER (as modified); POWER SUPPLY; or the like. For items not having a complete individual electrical/electronic function, see applicable "SUBASSEMBLY" name, such as AMPLIFIER SUBASSEMBLY; POWER SUPPLY SUBASSEMBLY; or the like. For items having separately manufactured components (other than plug-in connecting facilities) and not having a more specific item name, see CIRCUIT CARD ASSEMBLY.
Part Alternates: 00100130, 001-00130, 5998-01-458-9532, 01-458-9532, 5998014589532, 014589532
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 SEP 1998 | 01-458-9532 | 60843 ( PRINTED CIRCUIT BOARD ) |

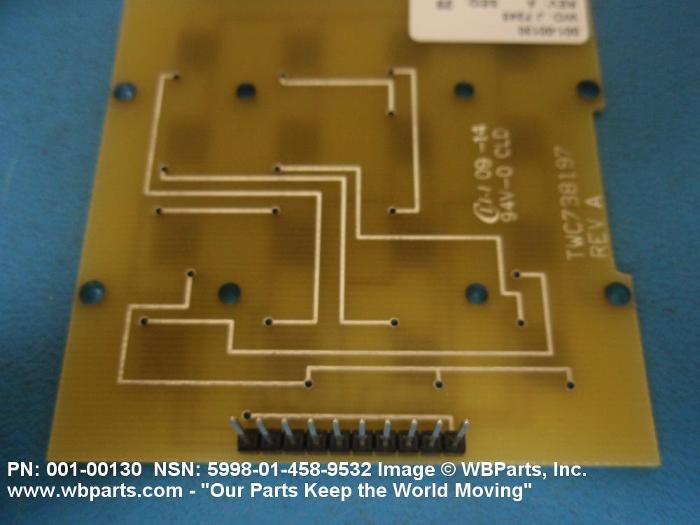

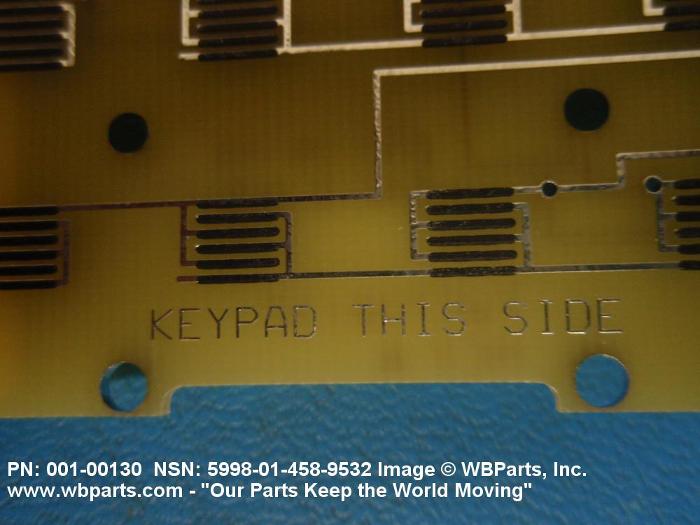

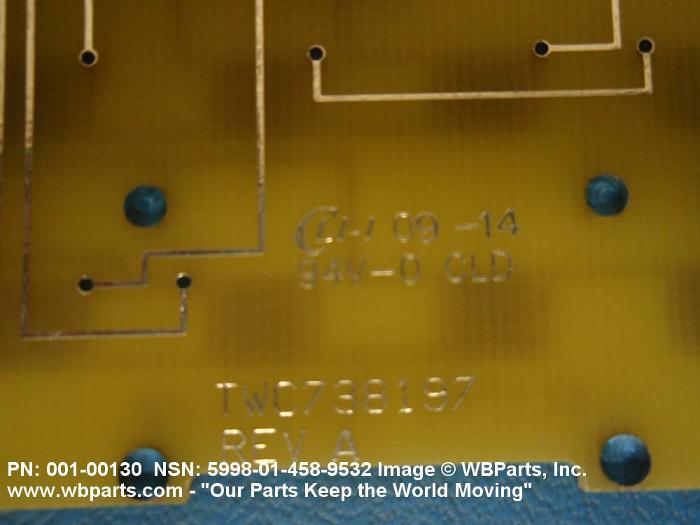

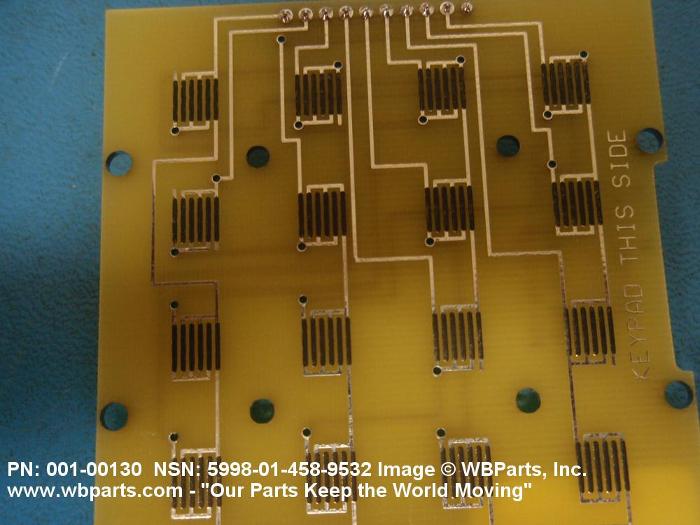

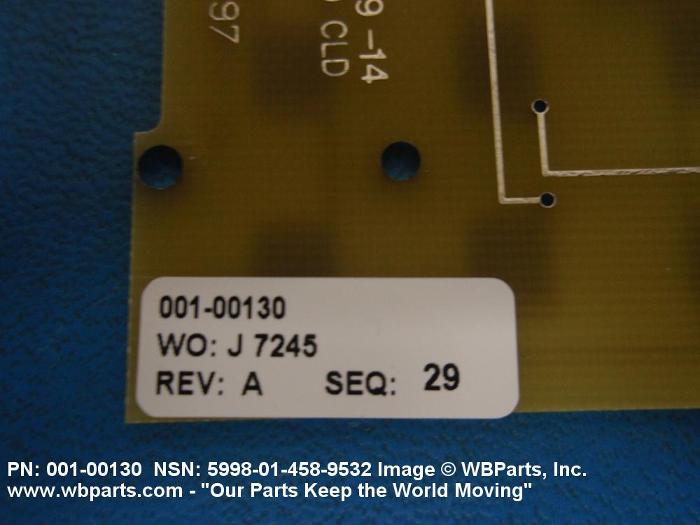

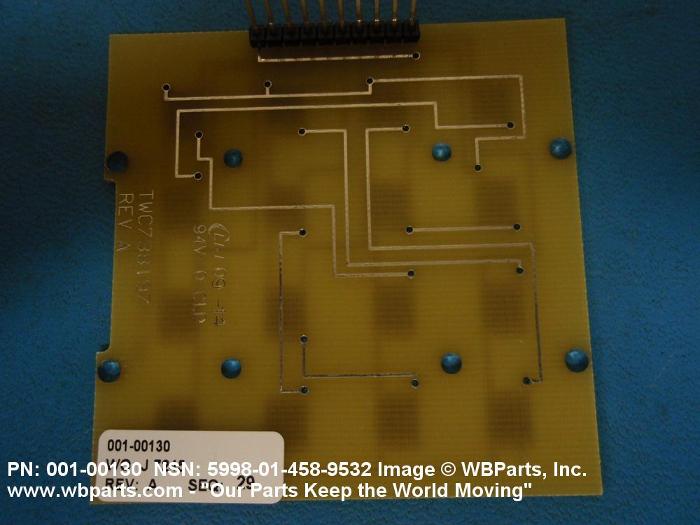

Drawings & Photos | NSN 5998-01-458-9532
Demand History | NSN 5998-01-458-9532
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5998-01-458-9532 | 2013-11-330 | 1 | Taiwan |
| 00100130 | 2011-03-75 | 2 | Taiwan |
| 5998-01-458-9532 | 2010-11-315 | 1 | DIBBS |
| 5998-01-458-9532 | 2010-08-230 | 10 | CA |
Cross Reference | NSN 5998-01-458-9532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 001-00130 | 66943 | DATRON WORLD COMMUNICATIONS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5998-01-458-9532
Technical Data | NSN 5998-01-458-9532
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | TW7000,TW7000F,TW7201 |
Restrictions/Controls & Freight Information | NSN 5998-01-458-9532
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5998-01-458-9532
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
