Product Details | PRINTED CIRCUIT BOARD HOLDER
5998-01-080-4585 A holder designed to accommodate and position one or more printed circuit boards. It is usually an open frame structure with printed circuit board guides mounted between parallel support bars and end supports. It is designed to be mounted in electrical cabinets, cases, drawers and racks to provide mounting facilities for printed circuit boards. See also CABINET, ELECTRICAL EQUIPMENT; CASE (as modified); DRAWER, ELECTRICAL EQUIPMENT; and RACK, ELECTRICAL EQUIPMENT.
Part Alternates: C01926, 31414671, 3141467-1, 5998-01-080-4585, 01-080-4585, 5998010804585, 010804585
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JUL 1979 | 01-080-4585 | 31600 ( HOLDER, PRINTED CIRCUIT BOARD ) |
Drawings & Photos | NSN 5998-01-080-4585
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5998-01-080-4585
Technical Data | NSN 5998-01-080-4585
| Characteristic | Specifications |
|---|---|

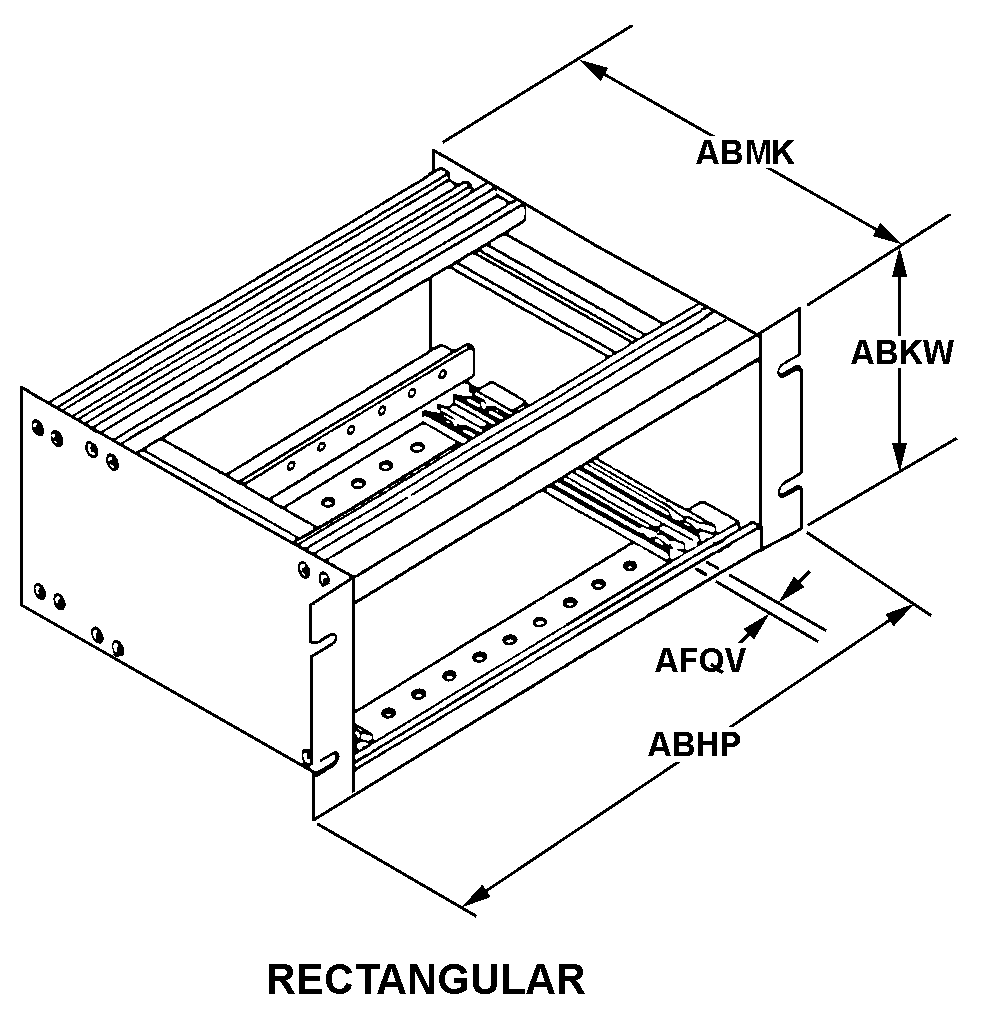

| BODY STYLE | 1E RECTANGULAR |
| OVERALL LENGTH | 12.740 INCHES NOMINAL |
| OVERALL HEIGHT | 7.050 INCHES NOMINAL |
| OVERALL WIDTH | 9.325 INCHES NOMINAL |
| BOARD ACCOMMODATED WIDTH | 0.800 INCHES NOMINAL |
| CARD QUANTITY | 10 |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SCREW SINGLE MOUNTING FACILITY |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 3141467-1 |
