NSN 5998-01-044-6970 22239W, 22-239W, 01-044-6970
Product Details | ELECTRONIC COMPONENTS ASSEMBLY
5998-01-044-6970 A grouping of two or more different types of electrical/electronic components mounted on a common mounting. It may include an assembly of electrical/electronic components mounted on multiple PRINTED WIRING BOARD(S) mounted back to back, stacked, and the like. The item is generally a component of a subassembly and cannot be assigned a more definite item name. Excludes items which may be identified as a subassembly. For an assembly of electrical/electronic components mounted on a single PRINTED WIRING BOARD, see CIRCUIT CARD ASSEEMBLY. Do not use if a more specific name applies.
Part Alternates: 22239W, 22-239W, 5998-01-044-6970, 01-044-6970, 5998010446970, 010446970
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JUL 1977 | 01-044-6970 | 26088 ( ELECTRONIC COMPONENTS ASSEMBLY ) |

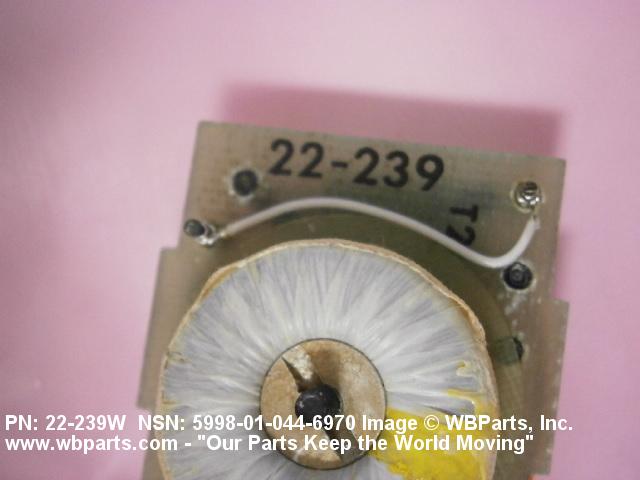

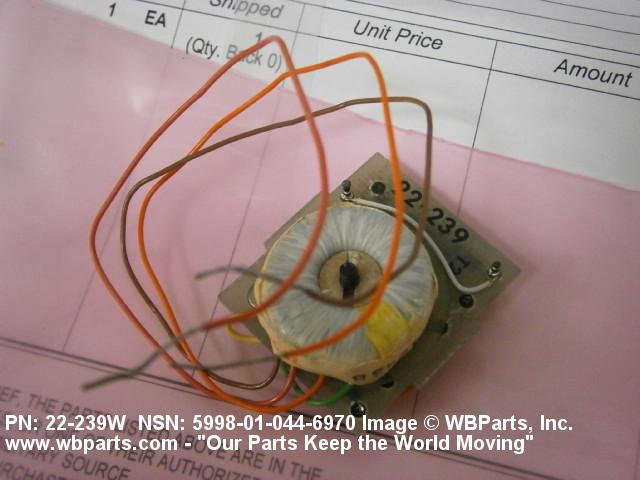

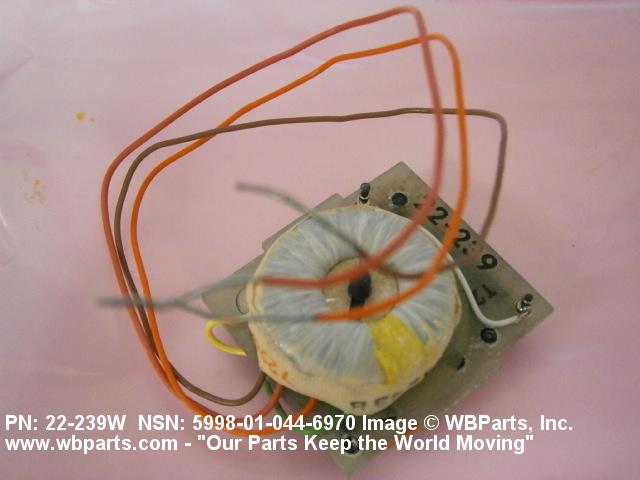

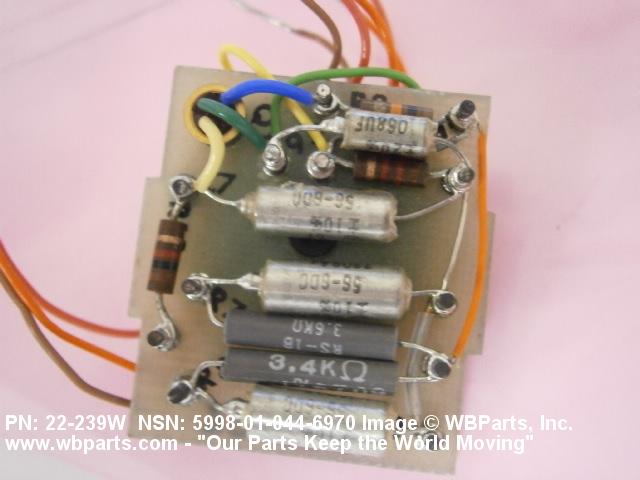

Drawings & Photos | NSN 5998-01-044-6970
Demand History | NSN 5998-01-044-6970
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5998-01-044-6970 | 2012-03-75 | 1 | United States |
Cross Reference | NSN 5998-01-044-6970
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22-239W | 35918 | HORIZON AEROSPACE LLC DBA MAGNETICS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5998-01-044-6970
Technical Data | NSN 5998-01-044-6970
| Characteristic | Specifications |
|---|---|
| END ITEM IDENTIFICATION | E-3A ACFT |
Restrictions/Controls & Freight Information | NSN 5998-01-044-6970
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5998-01-044-6970
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | QD | SX:MISCELLANEOUS INSTRUMENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
