NSN 5998-01-009-9490 5590, 816877-100 , 01-009-9490
Product Details | ELECTRONIC TEST EXTENDER CARD
5998-01-009-9490 An item consisting of a hand wired or printed wiring board, with or without a retaining plate, rails, brackets, or electrical connector(s) which is designed to provide access to a circuit card assembly or electronic components assembly for testing, test point checking and troubleshooting.
Part Alternates: 5590, 816877-100 , 5998-01-009-9490, 01-009-9490, 5998010099490, 010099490, 816877100
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 SEP 1975 | 01-009-9490 | 62400 ( EXTENDER CARD, ELECTRONIC TEST ) |

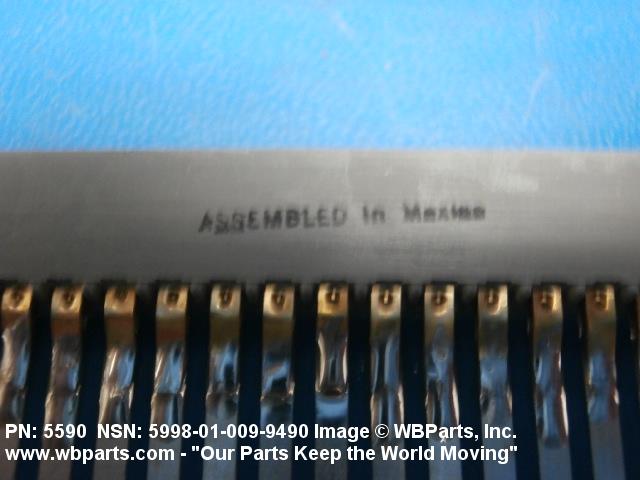

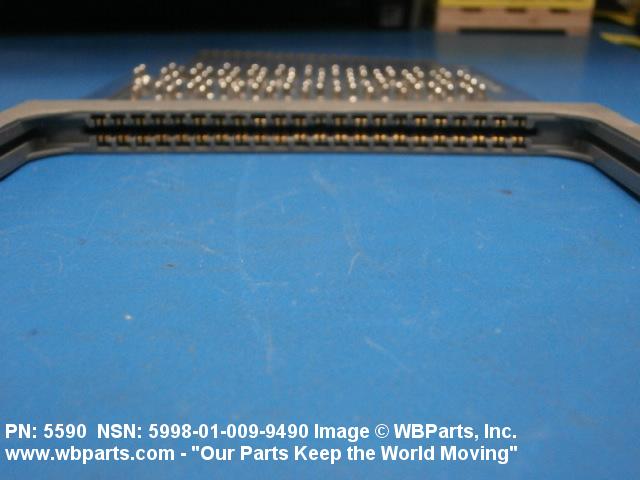

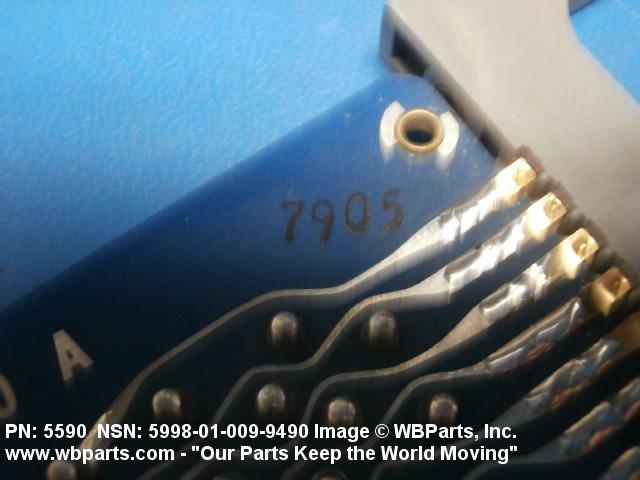

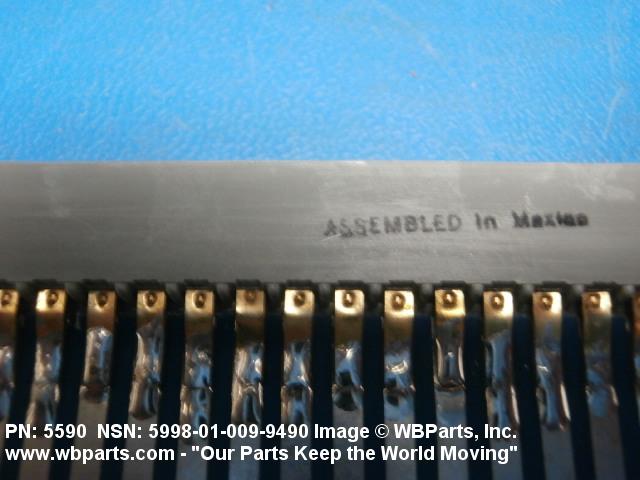

Drawings & Photos | NSN 5998-01-009-9490
Demand History | NSN 5998-01-009-9490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5590 | 2021-07-188 | 1 | DIBBS |
| 5590 | 2019-09-267 | 1 | DIBBS |
| 5998-01-009-9490 | 2017-04-100 | 1 | DIBBS |
| 5998-01-009-9490 | 2017-01-10 | 3 | US |
| 5998-01-009-9490 | 2016-10-292 | 1 | DIBBS |
| 5998-01-009-9490 | 2016-09-266 | 6 | US |
| 5998-01-009-9490 | 2015-04-103 | 10 | us |
| 5998-01-009-9490 | 2015-01-21 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5998-01-009-9490
Related Products | NSN 5998-01-009-9490
Technical Data | NSN 5998-01-009-9490
| Characteristic | Specifications |
|---|---|

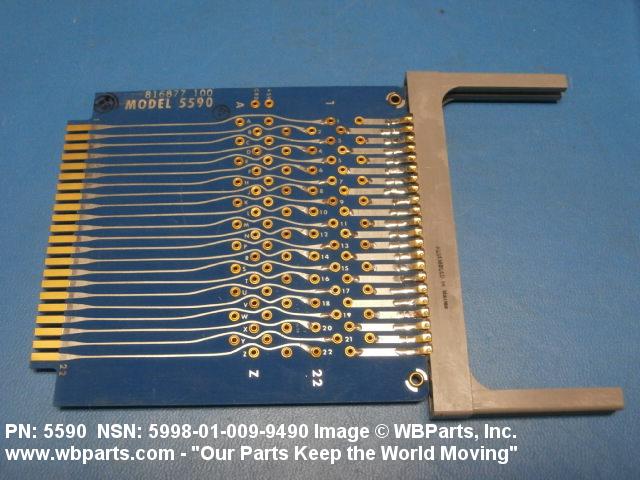

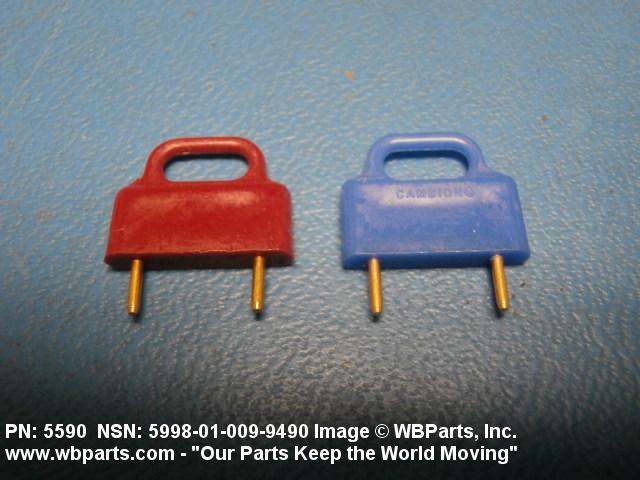

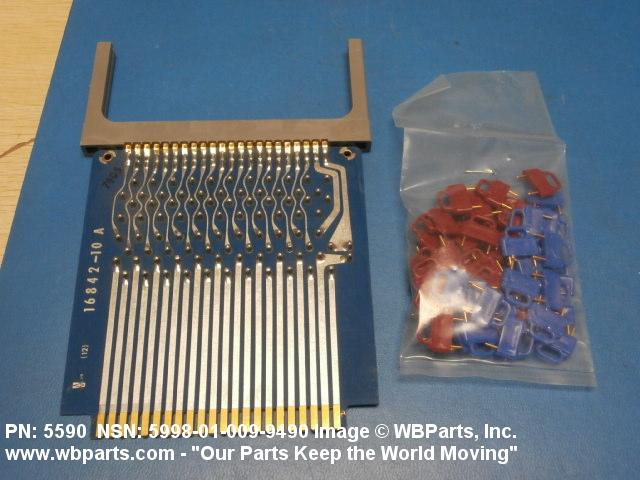

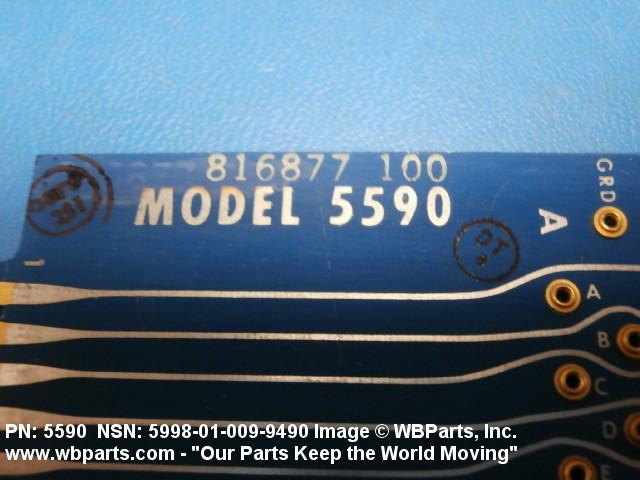

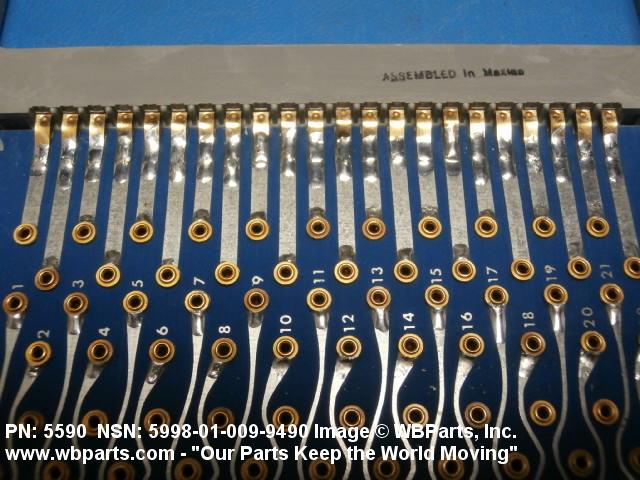

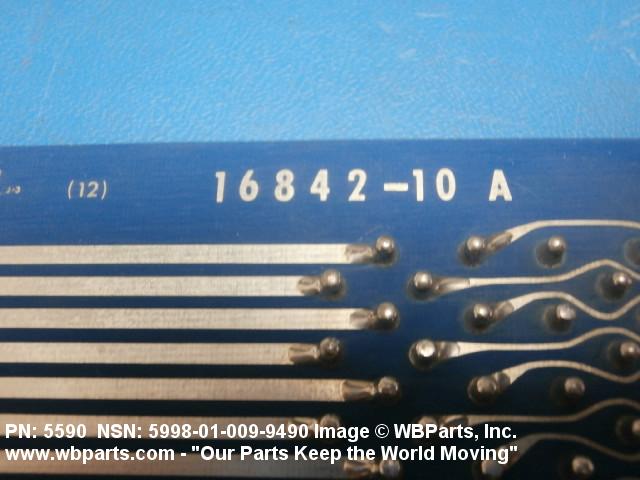

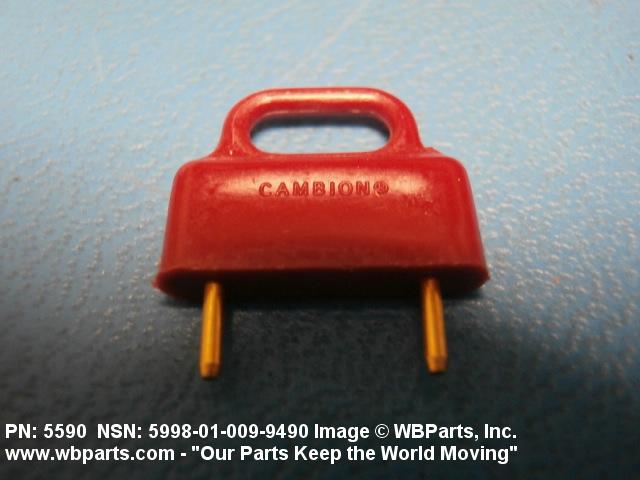

| SPECIAL FEATURES | MODEL 5590 CARD PROVIDES A MEANS OF POSITIONING A BLUE CHIP CARD ABOVE THE CASE ASSEMBLY ALLOWUNG FOR IN SYSTEM CIRCUIT CHECKS,YHE PATCH JUMPERS ON THE 5590 CARD PROVIDE THE OPTION OF DISCONNECTING ANY OF THE 44 CARD PINS,EACH 5590 CARD IS SUPPLIED WITH 25 RED AND 25 BLUE PATCH JUMPERS |
| III END ITEM IDENTIFICATION | 6940-00-489-4571 |
| MANUFACTURERS CODE | 14506 |
| DESIGN CONTROL REFERENCE | 816877-100 |
Restrictions/Controls & Freight Information | NSN 5998-01-009-9490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
