NSN 5996-01-530-9860 A906MK2, A-906MK2 , 401-7598220 ITEM 2
Product Details | AUDIO FREQUENCY AMPLIFIER
5996-01-530-9860 An electronic device whose audio frequency input signals control power from a source independant of the input signal and delivers audio frequency output signals of greater amplitude with respect to current and/or voltage. The output signals characteristics are uniformly related to the input signals. It operates at frequencies of 20 kilohertzs and below. It may or may not have signal switching capabilities.
Part Alternates: A906MK2, A-906MK2 , 401-7598220 ITEM 2, 4017598220ITEM2, 5996-01-530-9860, 01-530-9860, 5996015309860, 015309860
Electrical and Electronic Equipment Components | Amplifiers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 2005 | 01-530-9860 | 00511 ( AMPLIFIER, AUDIO FREQUENCY ) |

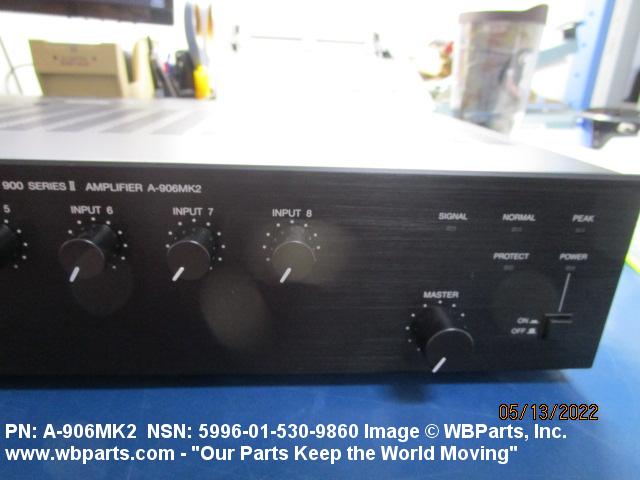

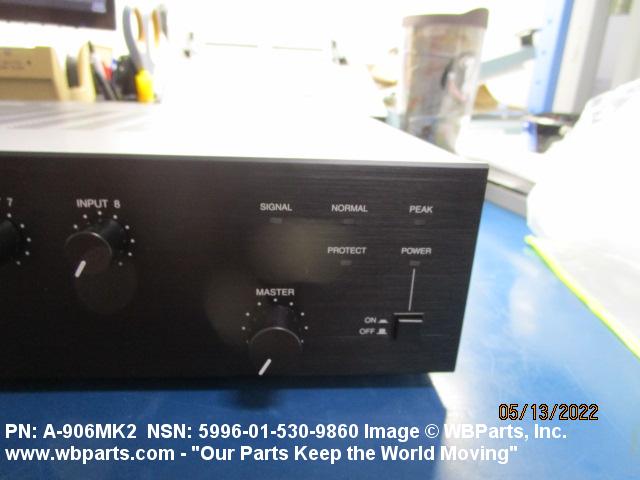

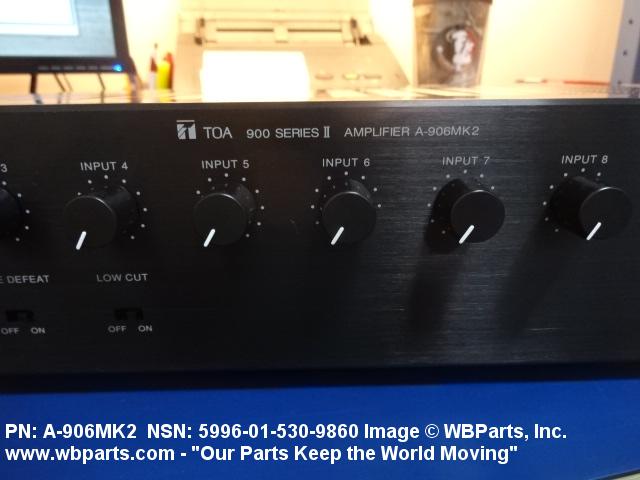

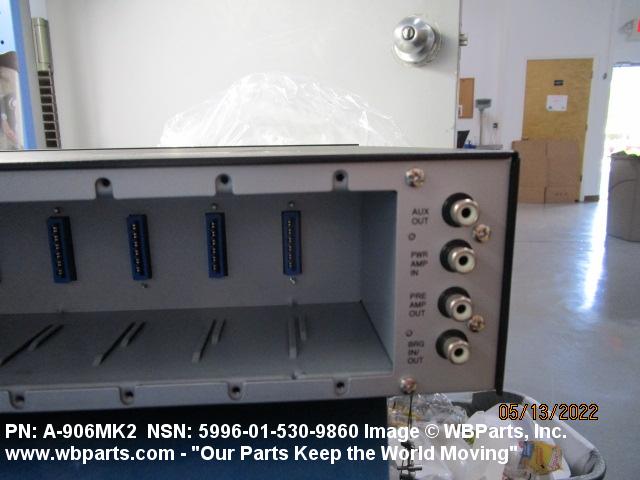

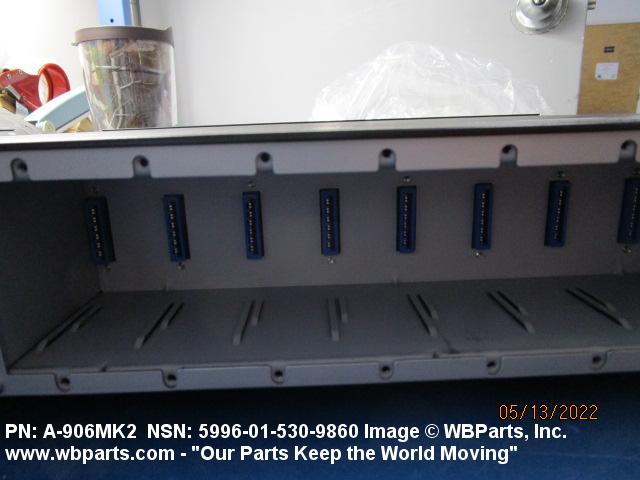

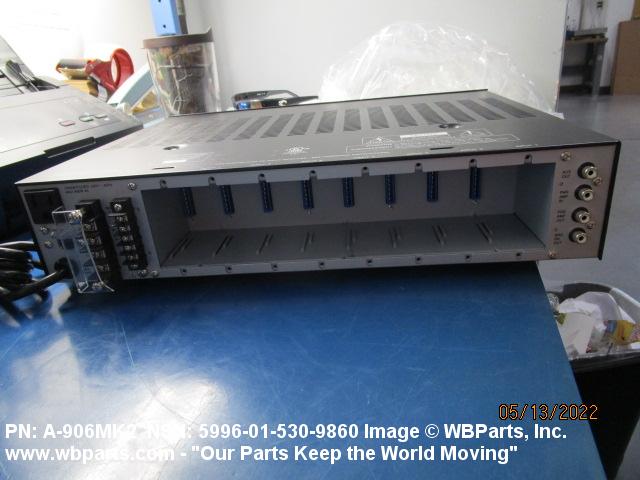

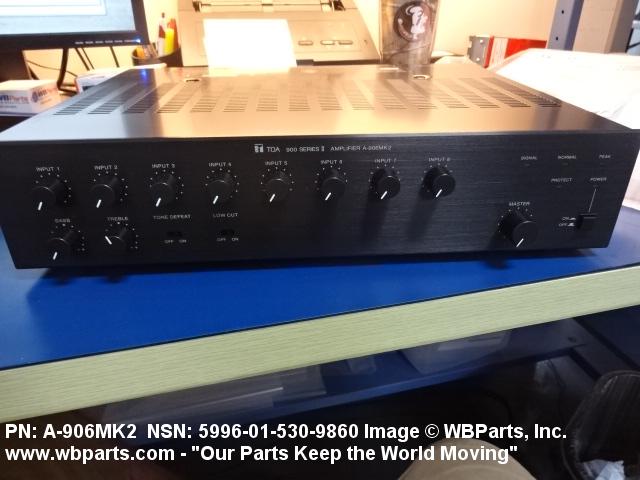

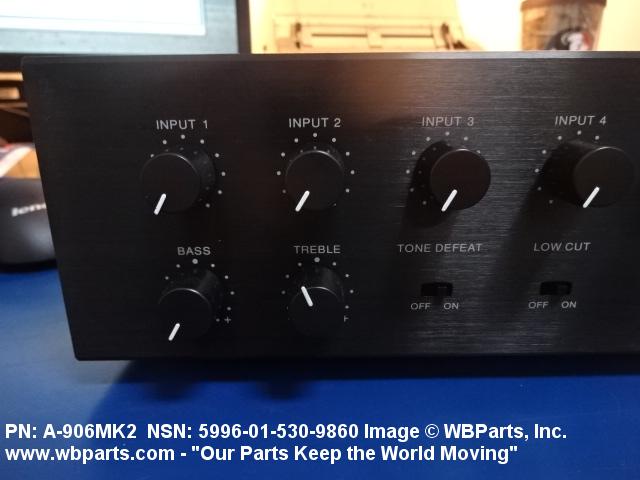

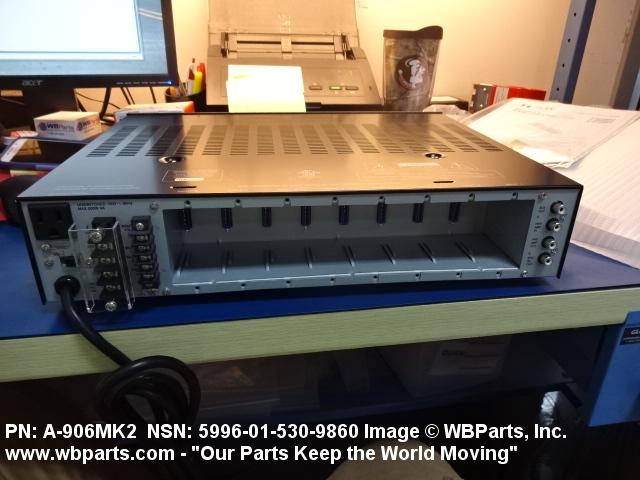

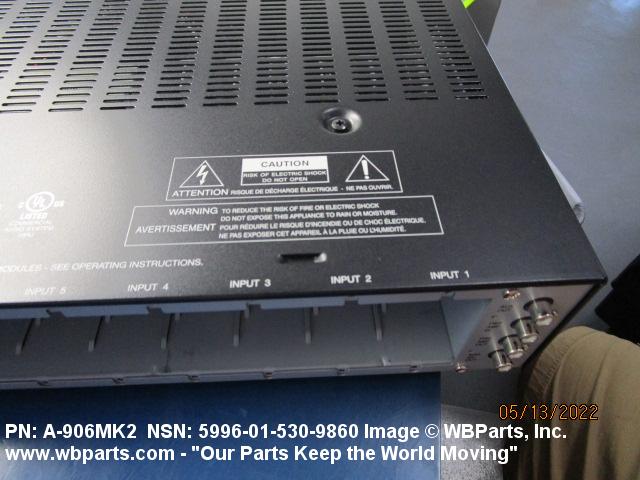

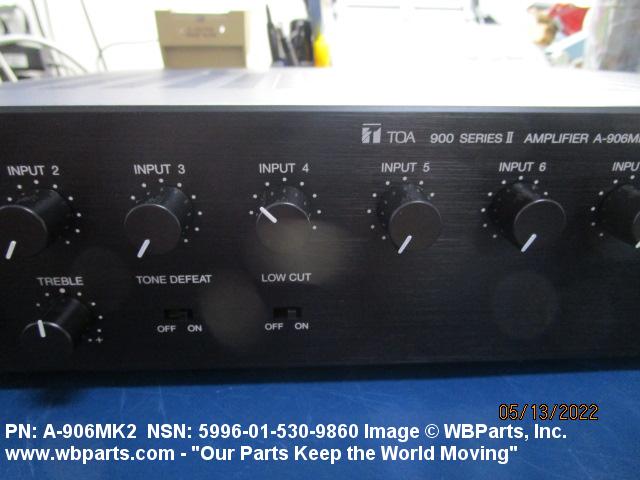

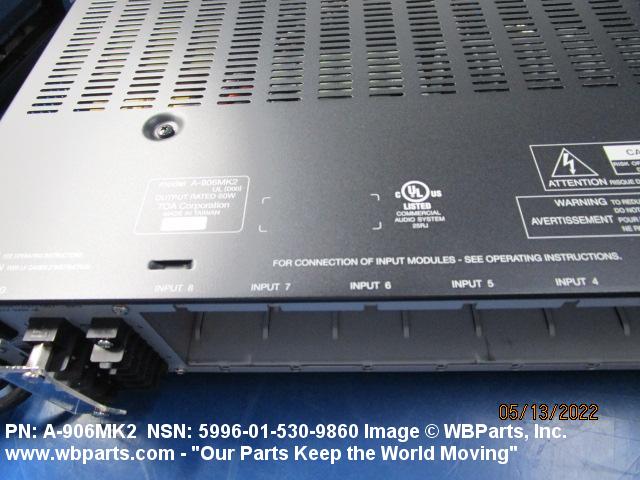

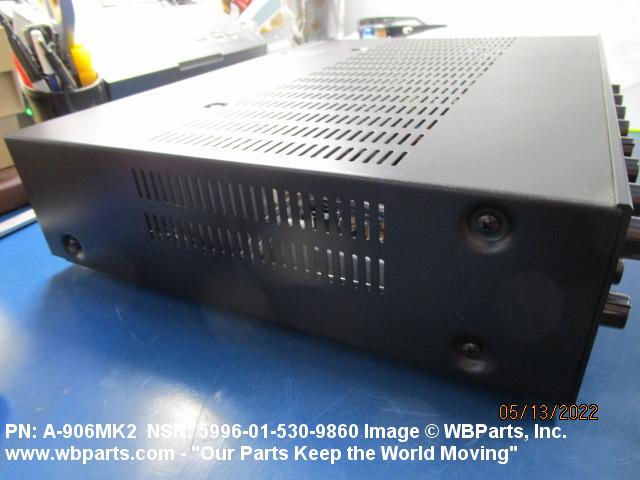

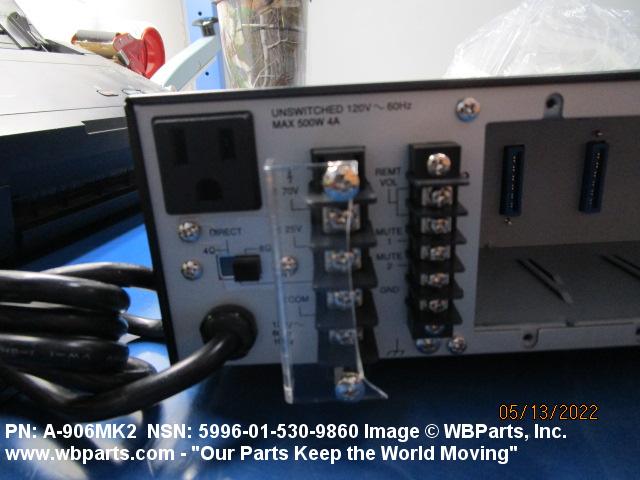

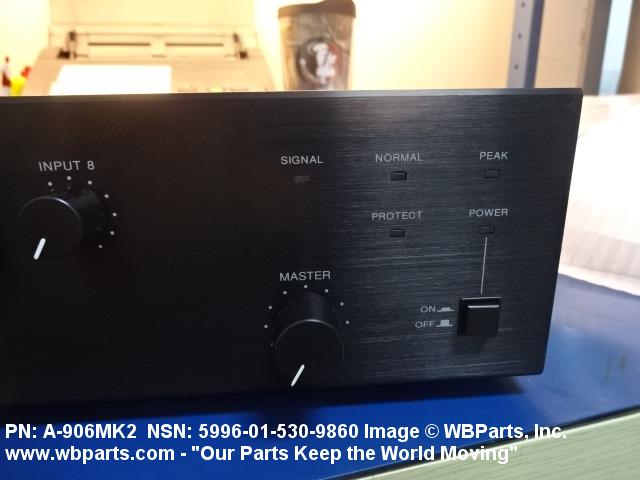

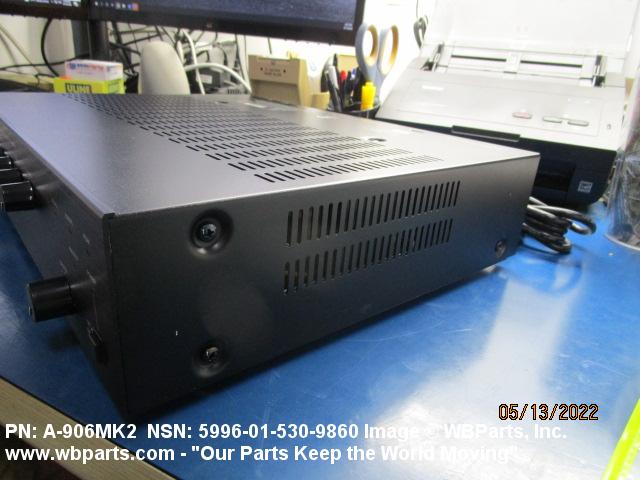

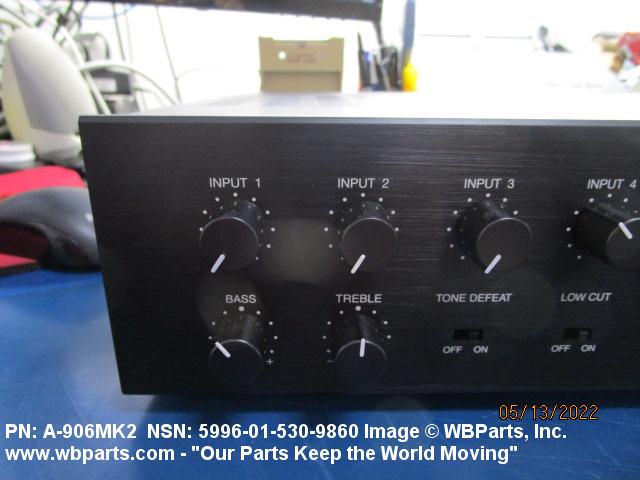

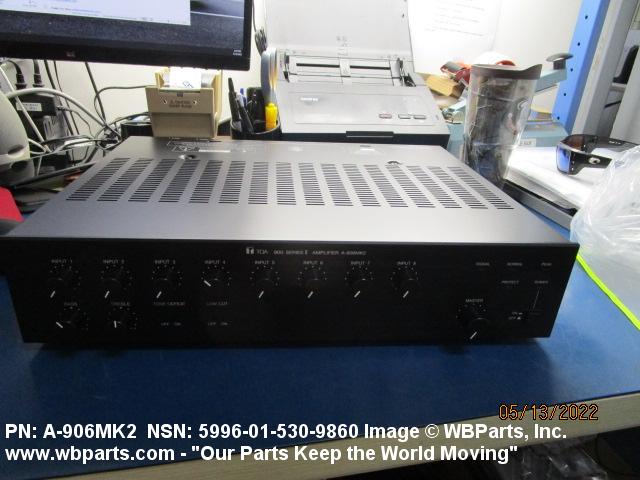

Drawings & Photos | NSN 5996-01-530-9860
Demand History | NSN 5996-01-530-9860
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A-906MK2 | 2024-09-263 | 8 | DIBBS |
| A-906MK2 | 2024-03-65 | 2 | DIBBS |
| 5996-01-530-9860 | 2022-05-123 | 1 | United States |
| A-906MK2 | 2021-04-103 | 1 | DIBBS |
| 5996-01-530-9860 | 2020-02-37 | 1 | United States |
| 5996-01-530-9860 | 2019-06-169 | 1 | United States |
| 5996-01-530-9860 | 2019-03-85 | 1 | United States |
| 5996-01-530-9860 | 2018-09-255 | 1 | United States |
| 5996-01-530-9860 | 2012-08-219 | 1 | DIBBS |
| 5996-01-530-9860 | 2011-07-209 | 2 | DIBBS |
| 5996-01-530-9860 | 2010-09-253 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5996-01-530-9860
Technical Data | NSN 5996-01-530-9860
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| AVERAGE LIFE MEASUREMENT | NOT RATED |
| OPERATING TEMP RANGE | -10.0 TO 60.0 DEG CELSIUS |
| INCLOSURE TYPE | PARTIALLY INCLOSED |
| INSTALLATION DESIGN | MODULE |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 16.500 INCHES NOMINAL |
| OVERALL HEIGHT | 3.900 INCHES NOMINAL |
| OVERALL WIDTH | 14.100 INCHES NOMINAL |
| SPECIAL FEATURES | 60 WATTS RMS OUTPUT POWER, INPUTS: 8 INPUT PORTS: EVERY PORT ACCEPTS ANY INPUT MODULE, 1 BRIDGING INPUT/OUTPUT |
| III COLOR | BLACK |
| III END ITEM IDENTIFICATION | MODULAR/MIXER AMPLIFIER A-906MK2 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | MIXER/POWER AMPLIFIER (60 WATT) |
Restrictions/Controls & Freight Information | NSN 5996-01-530-9860
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5996-01-530-9860
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
