NSN 5996-01-497-3273 1000012, 100-0-012, 11531102
Product Details | VIDEO AMPLIFIER
5996-01-497-3273 An electronic device whose video frequency input signals control power from a source independent of the input signals, and delivers output signals of greater amplitude with respect to current and/or voltage. The output signals characteristics are uniformly related to the input signals. It is generally used in equipment in which the electrical impulses are converted into visual presentation by means of cathode ray tubes or other items.
Part Alternates: 1000012, 100-0-012, 11531102, 11-531-102, 5996-01-497-3273, 01-497-3273, 5996014973273, 014973273
Electrical and Electronic Equipment Components | Amplifiers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 MAY 2002 | 01-497-3273 | 00095 ( AMPLIFIER, VIDEO ) |

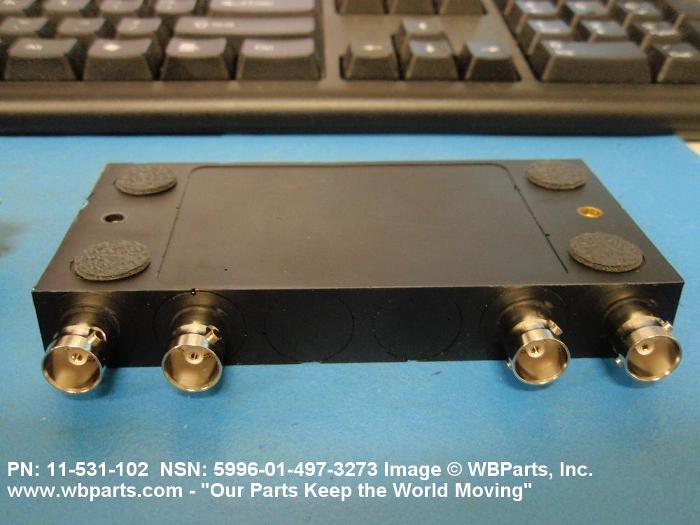

Drawings & Photos | NSN 5996-01-497-3273
Demand History | NSN 5996-01-497-3273
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5996-01-497-3273 | 2011-03-70 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5996-01-497-3273
Technical Data | NSN 5996-01-497-3273
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | ANY ACCEPTABLE |
| AVERAGE LIFE MEASUREMENT | NOT RATED |
| INCLOSURE TYPE | ENCASED |
| INSTALLATION DESIGN | MOBILE |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.065 INCHES NOMINAL |
| OVERALL WIDTH | 2.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5996-01-497-3273
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
