Product Details | DATA ACQUISITION SYSTEM AMPLIFIER

5996-01-157-3883 A specifically designed amplifier unit which amplifies low-level analog signals derived from a quantity of sources, such as strain gages, thermocouples, transducers, and the like, to useful levels for measurement, conditioning, monitoring, recording, indication, digital conversion, and the like. It may consist of single or multiple channels.

Part Alternates: 81400601, 8140-0601, 5996-01-157-3883, 01-157-3883, 5996011573883, 011573883

Electrical and Electronic Equipment Components | Amplifiers

Supply Group (FSG) NSN Assign. NIIN
59 05 JUL 1983 01-157-3883

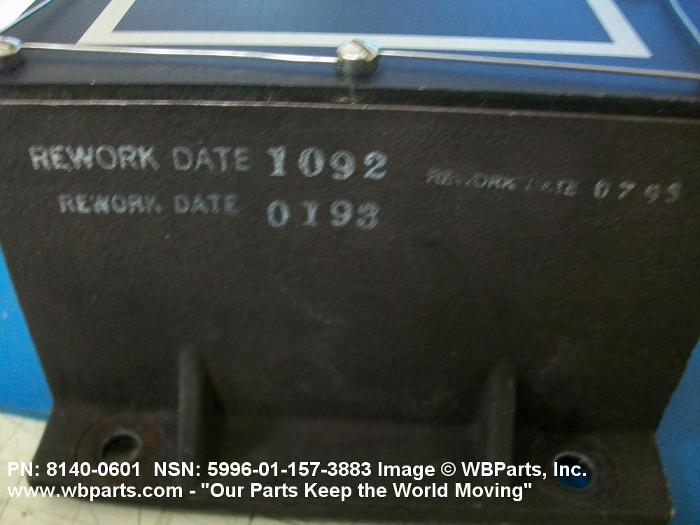

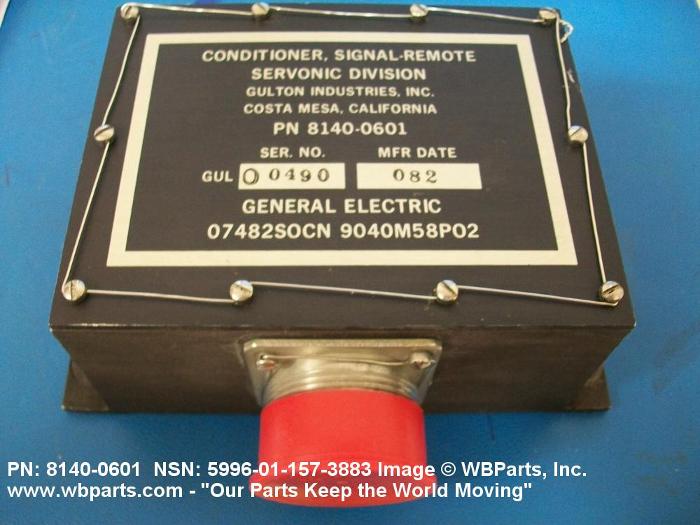

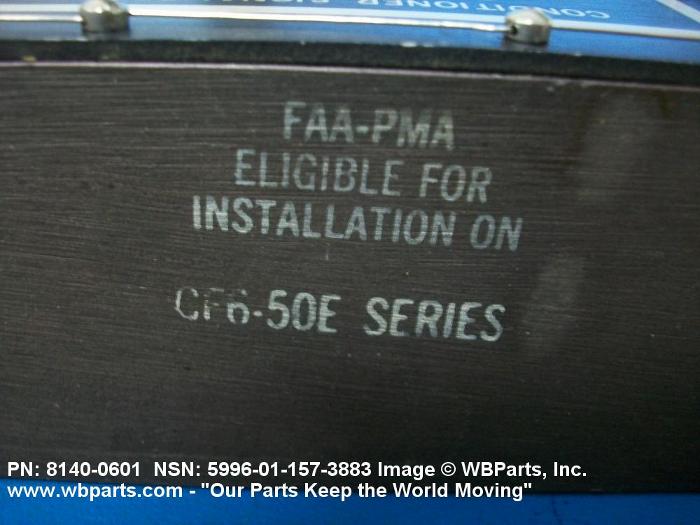

Drawings & Photos | NSN 5996-01-157-3883


Demand History | NSN 5996-01-157-3883

Part Number Request Date QTY Origin
5996-01-157-3883 2024-06-157 2 US
5996-01-157-3883 2022-01-28 1 DE
81400601 2022-01-28 1 DE
5996-01-157-3883 2021-12-340 4 US
5996-01-157-3883 2021-12-340 2 US
5996-01-157-3883 2020-05-122 2 US
5996-01-157-3883 2017-11-311 1 BE
5996-01-157-3883 2017-07-187 10 US
5996-01-157-3883 2017-05-138 1 Israel
5996-01-157-3883 2017-05-123 5 United States
81400601 2012-01-27 2 US
5996-01-157-3883 2011-12-336 2 US
5996-01-157-3883 2011-09-272 1 US
5996-01-157-3883 2011-09-272 2 US
5996-01-157-3883 2011-08-224 1 United States
5996-01-157-3883 2011-07-200 1 United States

Cross Reference | NSN 5996-01-157-3883

Part Number Cage Code Manufacturer
8140-0601 99564 AMETEK, INC. DBA AEROSPACE GST

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5996-01-157-3883

Technical Data | NSN 5996-01-157-3883

Characteristic Specifications
SPECIAL FEATURES SIGNAL CONDITIONER CONNECTED BETWEEN THE LINEAR VARIABLE DIFFERENTIAL TRANSDUCER AND DIGITAL VOLTMETER
III END ITEM IDENTIFICATION KC-135 ACFT
III FUNCTIONAL DESCRIPTION USED TO CONVERT LINEAR VARIABLE DIFFERENTIAL TRANSDUCER LINEAR MOTION TO VOLTAGE TO FACITATE READOUT AT INTERMEDIATE AND DEPOT LEVEL OF MAINTENANCE

Restrictions/Controls & Freight Information | NSN 5996-01-157-3883

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 061700 ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 72D unknown
Originating Activity Code SE San Antonio Air Logistics Center
Kelly AFB, TX 78241-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5996-01-157-3883

Category Code Description
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation CodeRNTG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC)
Budget CodeY variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly.
Source of SupplyFLZWarner Robins Air Logistics Center
Robins AFB, GA 31098-5609
AgencyDFDepartment of the Air Force
Service OrganizationLLead Service - 22 (Repairable)
ReparabilityUAF Equipment Management System (AFEMS)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
