NSN 5995-01-526-2912 27509603, 275096-03, 01-526-2912
Product Details | RADIO FREQUENCY CABLE ASSEMBLY
5995-01-526-2912 A definite length of CABLE, RADIO FREQUENCY having one or both ends processed and/or terminated in fittings which provide for connection to other items. Includes multiple cable assemblies in a common jacket or shield. Excludes items having branches or forks and LEAD, TEST. See also CABLE ASSEMBLY, RADIO FREQUENCY, BRANCHED.20211350043Fuzing and Firing Devices, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment
Part Alternates: 27509603, 275096-03, 5995-01-526-2912, 01-526-2912, 5995015262912, 015262912
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 DEC 2004 | 01-526-2912 | 00886 ( CABLE ASSEMBLY, RADIO FREQUENCY ) |
Drawings & Photos | NSN 5995-01-526-2912
Cross Reference | NSN 5995-01-526-2912
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 275096-03 | 09XP2 | ARGON ST, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5995-01-526-2912
Technical Data | NSN 5995-01-526-2912
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | SOLID SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | M17/194-00001 50 OHM MIL SPEC SINGLE MATERIAL RESPONSE CORE CONDUCTOR CABLE |

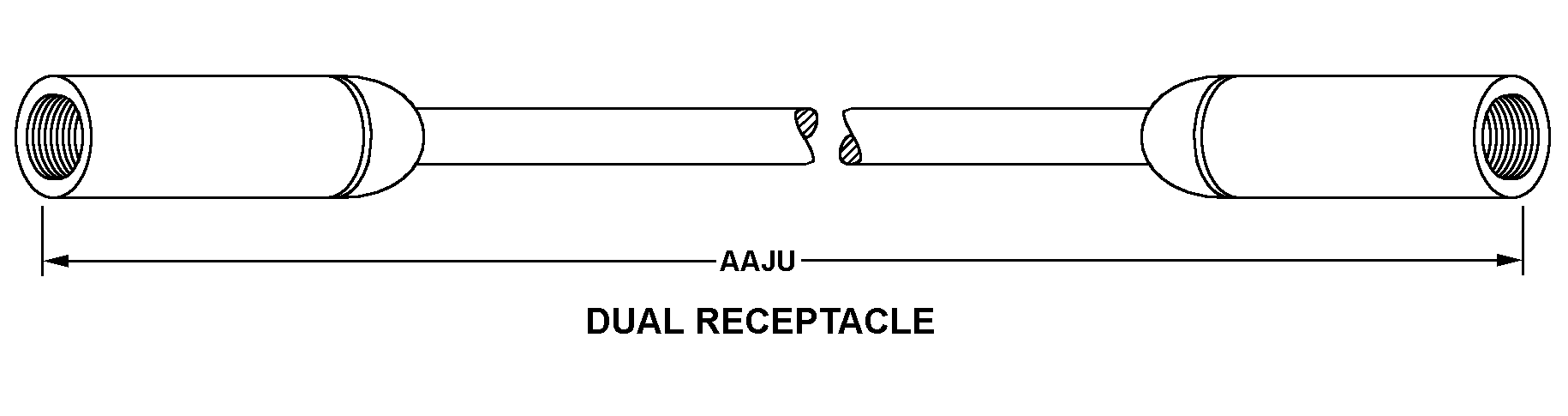

| STYLE DESIGNATOR | 55 DUAL RECEPTACLE |
| OVERALL LENGTH | 78.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | 0GZV8/11BNC-50-3-16-HPUE 1ST END SINGLE CONDUCTOR 0GZV8/11SMA-50-3-56/199UE 2ND END FIRST CONDUCTOR |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 0GZV8 1ST END SINGLE CONDUCTOR 0GZV8 2ND END SINGLE CONDUCTOR |
| SPECIAL FEATURES | TAG 'A'IDIS W1033/1A1J27 AND TAG 'B' ID IS W1033/1A2J8, TAG 'C' IS CAGE - P/N |
| III END ITEM IDENTIFICATION | AN/SSQ-137(V)2 MISC PARTS,SIGNAL EXPLOIT SYSTEM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CABLE ASSY,RF SIGNAL |
Restrictions/Controls & Freight Information | NSN 5995-01-526-2912
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5995-01-526-2912
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
