NSN 5995-00-816-3657 M22442/37-4708, M22442374708, CX-4708A/AIC
Product Details | BRANCHED ELECTRICAL CORD ASSEMBLY
5995-00-816-3657 A definite continuous length of CORD, ELECTRICAL with branches (forks), and having one or more ends processed and/or terminated with fittings which provide for connection to other items. See also WIRING HARNESS, BRANCHED.20311350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment
Part Alternates: M22442/37-4708, M22442374708, CX-4708A/AIC, CX4708AAIC, GW9147, MIL-DTL-22442/37, MILDTL2244237, Q2244237, Q22442-37, TMC125882, TMC12-588-2, 10120A, 1415V, 36720, 5610, 60424900200, 604249002603, 604-249-002-603, 60C12605, 5995-00-816-3657, 00-816-3657, 5995008163657, 008163657
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-816-3657 | 60317 ( CORD ASSEMBLY, ELECTRICAL, BRANCHED ) |

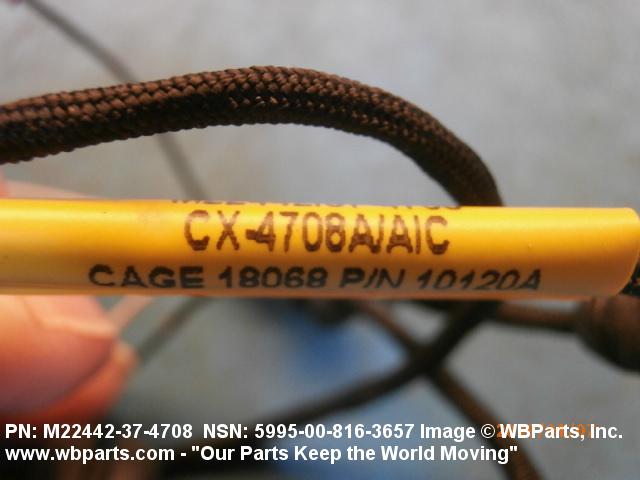

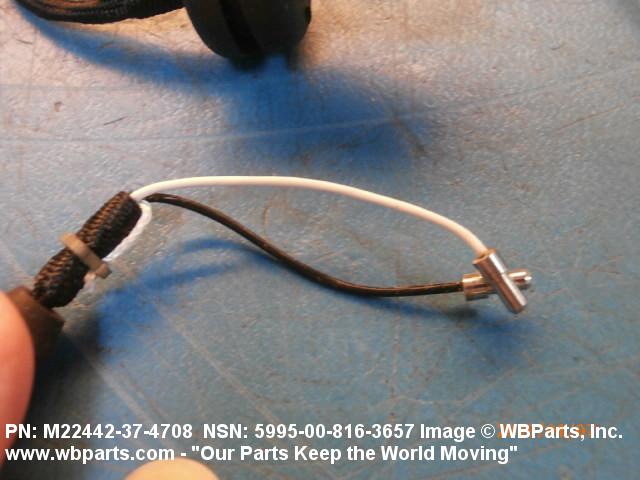

Drawings & Photos | NSN 5995-00-816-3657
Demand History | NSN 5995-00-816-3657
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5995-00-816-3657 | 2023-09-262 | 12 | US |
| 5995-00-816-3657 | 2023-09-262 | 24 | US |
| 5995-00-816-3657 | 2022-07-192 | 130 | United States |
| 5995-00-816-3657 | 2019-06-175 | 1 | DIBBS-RFPs |
| 5995-00-816-3657 | 2019-05-133 | 656 | DIBBS |
| 5995-00-816-3657 | 2019-04-120 | 656 | DIBBS |
| 5995-00-816-3657 | 2019-02-57 | 5 | United States |
| 5995-00-816-3657 | 2018-06-178 | 3 | United States |
| 5995-00-816-3657 | 2018-05-136 | 929 | DIBBS |
| 5995-00-816-3657 | 2018-05-130 | 5 | United States |
| 5995-00-816-3657 | 2018-01-23 | 656 | DIBBS |
| 5995-00-816-3657 | 2018-01-17 | 656 | DIBBS |
| 5995-00-816-3657 | 2017-09-256 | 1700 | DIBBS |
| 5995-00-816-3657 | 2017-07-205 | 263 | DIBBS |
| 5995-00-816-3657 | 2017-07-197 | 263 | DIBBS |
| 5995-00-816-3657 | 2017-04-101 | 420 | DIBBS |
| 5995-00-816-3657 | 2017-04-94 | 420 | DIBBS |
| 5995-00-816-3657 | 2017-04-93 | 357 | DIBBS |
| 5995-00-816-3657 | 2017-03-65 | 357 | DIBBS |
| 5995-00-816-3657 | 2016-11-321 | 263 | DIBBS |
| 5995-00-816-3657 | 2016-10-277 | 82 | DIBBS |
| 5995-00-816-3657 | 2016-09-273 | 164 | DIBBS |
| 5995-00-816-3657 | 2016-01-06 | 930 | SA |
| 5995-00-816-3657 | 2014-08-220 | 1 | DIBBS-RFPs |
| CX4708AAIC | 2013-04-120 | 5 | US |
| 5995-00-816-3657 | 2010-09-270 | 1169 | DIBBS |
| 5995-00-816-3657 | 2009-03-84 | 4235 | DIBBS |
| 5995-00-816-3657 | 2009-01-13 | 4235 | DIBBS |
| 5995-00-816-3657 | 2008-12-338 | 395 | DIBBS |
| 5995-00-816-3657 | 2008-12-336 | 31 | DIBBS |
| 5995-00-816-3657 | 2008-11-331 | 66 | DIBBS |
| 5995-00-816-3657 | 2008-11-331 | 3 | DIBBS |
| 5995-00-816-3657 | 2008-11-329 | 906 | DIBBS |
| 5995-00-816-3657 | 2008-11-324 | 122 | DIBBS |
| 5995-00-816-3657 | 2008-11-323 | 54 | DIBBS |
| 5995-00-816-3657 | 2008-11-317 | 286 | DIBBS |
| 5995-00-816-3657 | 2007-10-283 | 370 | US |
Cross Reference | NSN 5995-00-816-3657
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10120A | 18068 | ASTROCOM ELECTRONICS, INC. |
| 36720 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 5610 | 59369 | ACOUSTICOM CORP DBA ACOUSTIC |
| 604*249-002-00 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 604-249-002-603 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 60C12605 | 97151 | AIR FORCE LOGISTICS COMMAND 88 0SS OSE |
| CX-4708A/AIC | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| GW9147 | 60240 | GENTEX CORPORATION DBA WESTERN OPERATIONS |
| M22442/37-4708 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-22442/37 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| Q22442-37 | 4Y149 | QUALITY INTERCONNECT SYSTEMS, INC. |
| TMC12-588-2 | D2295 | ASTRO-TECHNIK GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5995-00-816-3657
Related Products | NSN 5995-00-816-3657
Technical Data | NSN 5995-00-816-3657
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | FOUR CONDUCTOR;STRANDED MATL;NO.40 AWG;INDIVIDUALLY INSULATED W/TEFLON;CONDUCTORS COLOR CODED BLACK AND WHITE;BLACK NYLON BRAIDED OUTER COVERING;19.000 IN.LG O/A;FIRST END TERMINATED W/1 CONNECTOR,PLUG ELECTRICAL,U-172/U;SECOND END IS Y TYPE BRANCHED,PARALLEL CONNECTED W/FOUR TERMINALS,P/N 14176,STAY CORD ON FIRST END AND ONE ON EA BRANCH END;ASSY IS USED WITH HEADSET NOS. 36850 AND 10993; |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-22442/37 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22442/37-4708 |
Restrictions/Controls & Freight Information | NSN 5995-00-816-3657
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5995-00-816-3657
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
