NSN 5995-00-563-7741 AE2195, 123SCAV57301, 123SCAV5730-1
Product Details | ELECTRICAL CABLE ASSEMBLY SET
5995-00-563-7741 A grouping of items having the same basic name for use in connection with, or the performance of, a closely related operation having two or more separate electrical cable assemblies. It may include cable reels and holders. It may or may not be inclosed in separate cases. See also CABLE ASSEMBLY, POWER ELECTRICAL; CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL; and WIRING HARNESS (as modified).20259950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: AE2195, 123SCAV57301, 123SCAV5730-1, 5995-00-563-7741, 00-563-7741, 5995005637741, 005637741
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 NOV 1974 | 00-563-7741 | 21323 ( CABLE ASSEMBLY SET, ELECTRICAL ) |

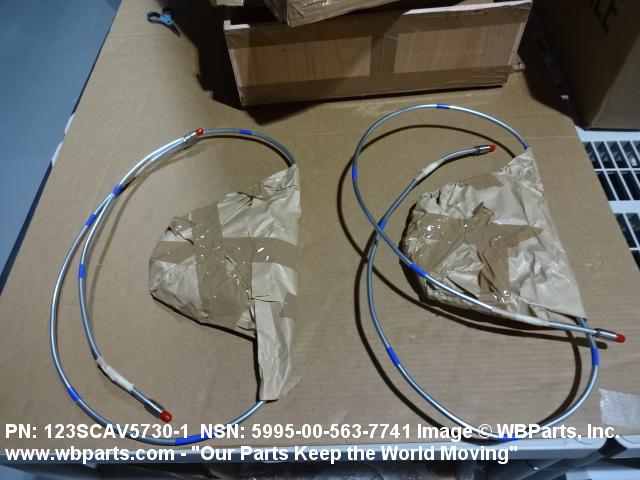

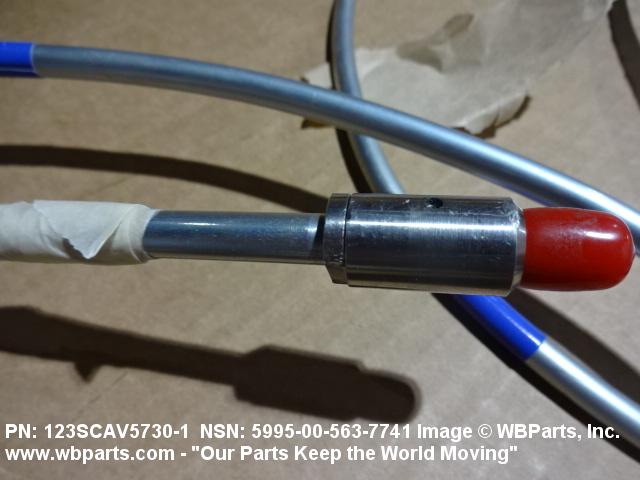

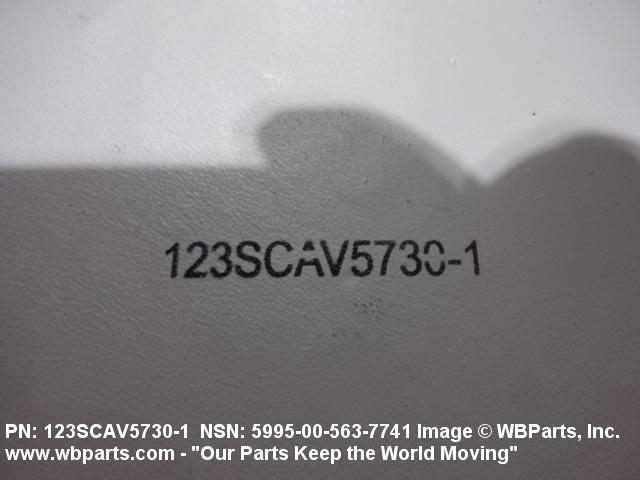

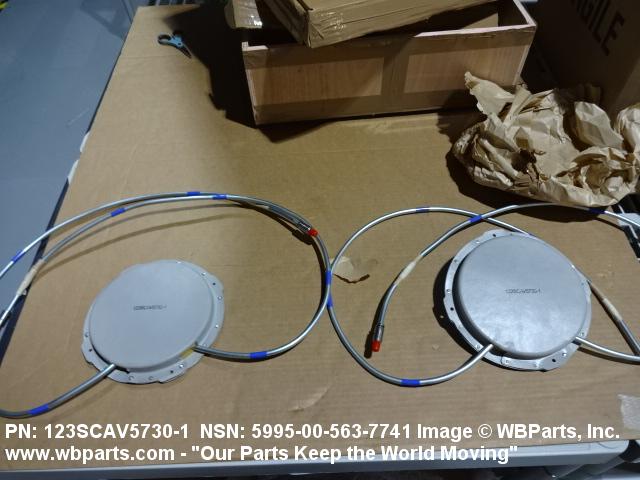

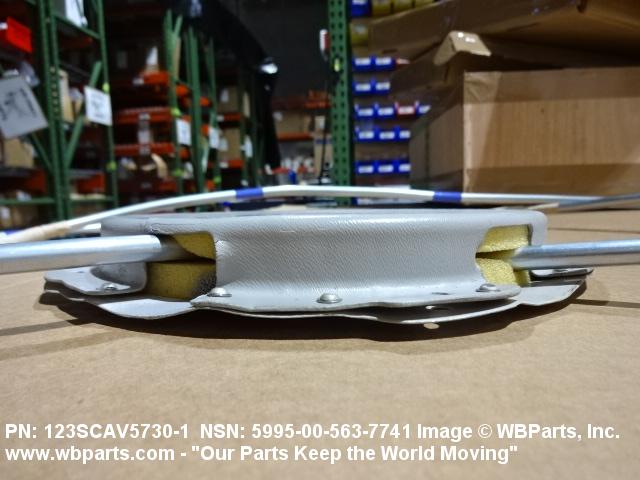

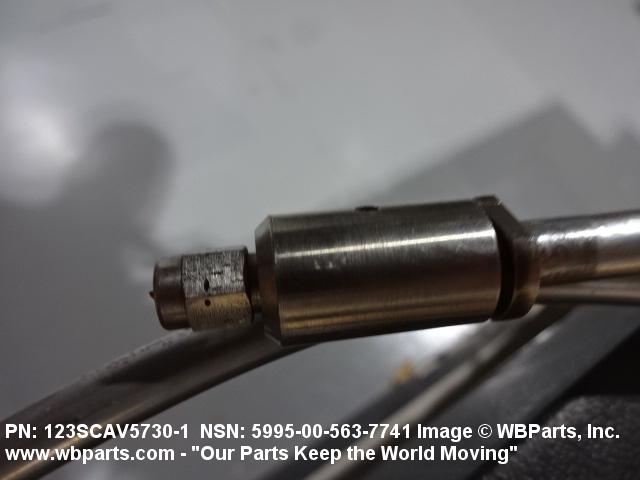

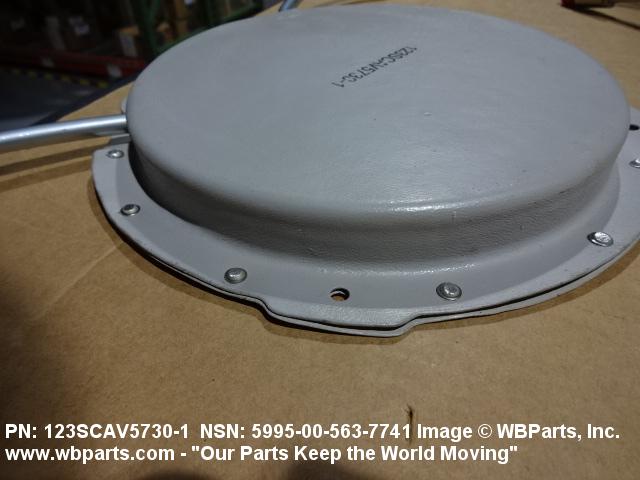

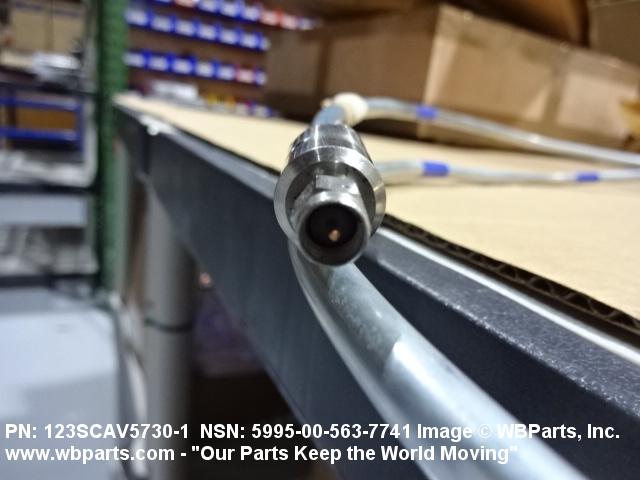

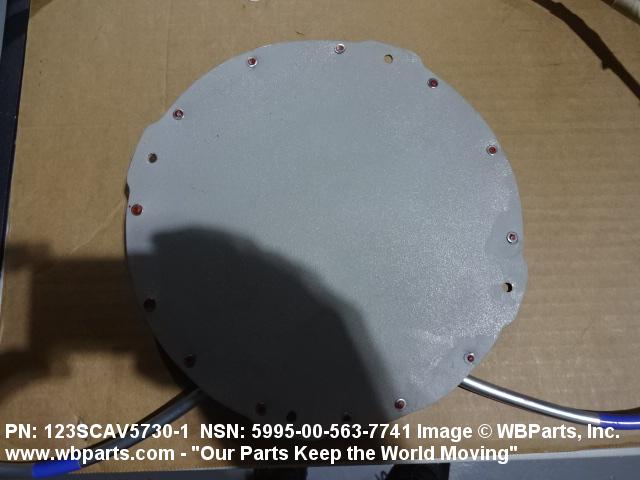

Drawings & Photos | NSN 5995-00-563-7741
Demand History | NSN 5995-00-563-7741
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE2195 | 2022-06-173 | 2 | DIBBS |
| AE2195 | 2022-03-70 | 2 | DIBBS |
| AE2195 | 2022-02-59 | 2 | DIBBS |
| 5995-00-563-7741 | 2018-06-176 | 2 | United States |
| 5995-00-563-7741 | 2017-12-339 | 2 | DIBBS |
| 5995-00-563-7741 | 2012-03-73 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5995-00-563-7741
Technical Data | NSN 5995-00-563-7741
| Characteristic | Specifications |
|---|---|
| COMPONENT QUANTITY | 2 |
| JOINT ELECTRONICS TYPE DESIGNATION SYSTEM ITEM NAME | CABLE ASSEMBLY SET,PHASE MATCHD |
| SPECIAL FEATURES | COMPONENT CONTROLLING AGENCY:GRUMMAN AEROSPACE CORP;COMPONENT IDENTIFYING NUMBER:AF49W557;CABLE REEL NOT INCLUDED;REEL HOLDER NOT PROVIDED |
| MANUFACTURERS CODE | 26512 |
| MFR SOURCE CONTROLLING REFERENCE | 123SCAV5730-1 |
Restrictions/Controls & Freight Information | NSN 5995-00-563-7741
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5995-00-563-7741
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
