NSN 5995-00-539-8230 B2011511, B201-1511, P719891502SUB2
Product Details | RADIO FREQUENCY CABLE ASSEMBLY
5995-00-539-8230 A definite length of CABLE, RADIO FREQUENCY having one or both ends processed and/or terminated in fittings which provide for connection to other items. Includes multiple cable assemblies in a common jacket or shield. Excludes items having branches or forks and LEAD, TEST. See also CABLE ASSEMBLY, RADIO FREQUENCY, BRANCHED.20211350043Fuzing and Firing Devices, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment
Part Alternates: B2011511, B201-1511, P719891502SUB2, P719891-502SUB2, 719891-502, 5995-00-539-8230, 00-539-8230, 5995005398230, 719891502, 005398230
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-539-8230 | 00886 ( CABLE ASSEMBLY, RADIO FREQUENCY ) |
Drawings & Photos | NSN 5995-00-539-8230
Cross Reference | NSN 5995-00-539-8230
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 719891-502 | 21921 | RCA CORP DISTRIBUTOR AND SPECIAL PRODUCTS DIV |
| 719891-502 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| B201-1511 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
| P719891-502SUB2 | 21921 | RCA CORP DISTRIBUTOR AND SPECIAL PRODUCTS DIV |
| P719891-502SUB2 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5995-00-539-8230
Technical Data | NSN 5995-00-539-8230
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | SOLID SINGLE CONDUCTOR |
| MATERIAL | STEEL 1ST POSITION CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYETHYLENE TEREPHTHALATE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR COPPER 2ND POSITION CONDUCTOR SINGLE CONDUCTOR COPPER 2ND POSITION SHIELD BRAID, METALLIC SINGLE CONDUCTOR PLASTIC VINYL 3RD POSITION JACKET SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 22 AWG SINGLE CONDUCTOR |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 1 COAXIAL |
| COLOR | WHITE 1ST POSITION COVER SINGLE CONDUCTOR |
| ELECTRICAL RESISTANCE | 125.00 OHMS IMPEDANCE |

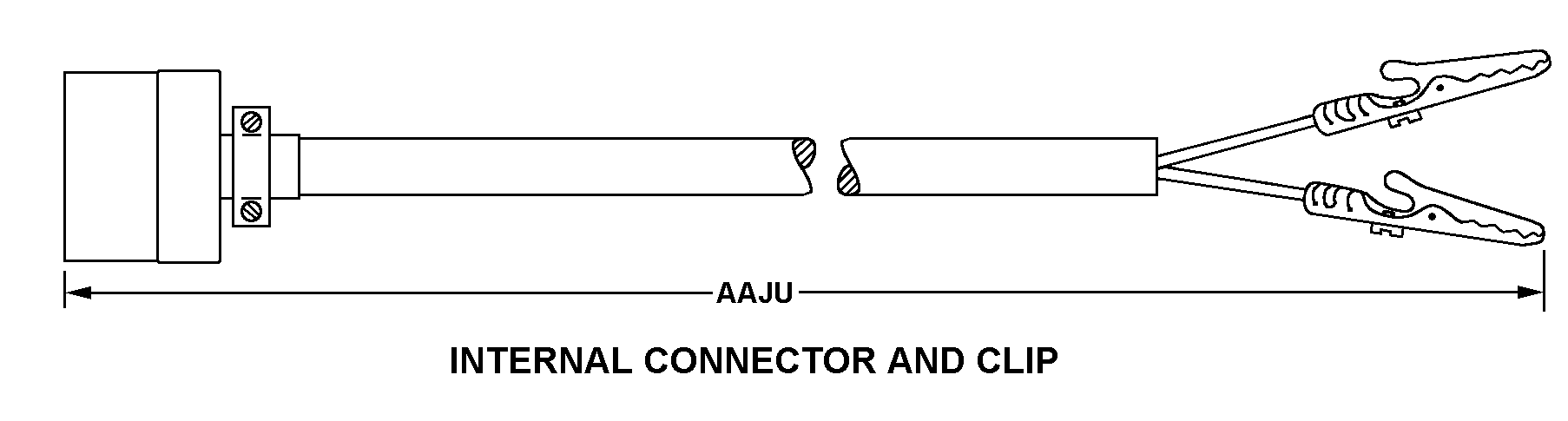

| STYLE DESIGNATOR | 22 INTERNAL CONNECTOR AND CLIP |
