NSN 5995-00-537-5589 CX-2333/U-8FT6IN, CX2333U8FT6IN, SMD79203B8FT6IN
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY
5995-00-537-5589 A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL, having one or more ends processed or terminated in fittings which provide for connection to other items. Excludes items having branches or forks. Excludes LEAD, TEST and CABLE AND CONDUIT ASSEMBLY, ELECTRICAL.20611350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance132500004935000059950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: CX-2333/U-8FT6IN, CX2333U8FT6IN, SMD79203B8FT6IN, SM-D-79203B8FT6IN, XC4621042, XC462-104-2, 5995-00-537-5589, 00-537-5589, 5995005375589, 005375589
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-537-5589 | 00782 ( CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL ) |
Drawings & Photos | NSN 5995-00-537-5589
Cross Reference | NSN 5995-00-537-5589
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CX-2333/U-8FT6IN | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-D-79203B8FT6IN | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| XC462-104-2 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION |
| XC462-104-2 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| XC462-104-2 | 55631 | SCOMILL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5995-00-537-5589
Technical Data | NSN 5995-00-537-5589
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 10 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 18 AWG ALL CONDUCTORS |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 10 SINGLES |

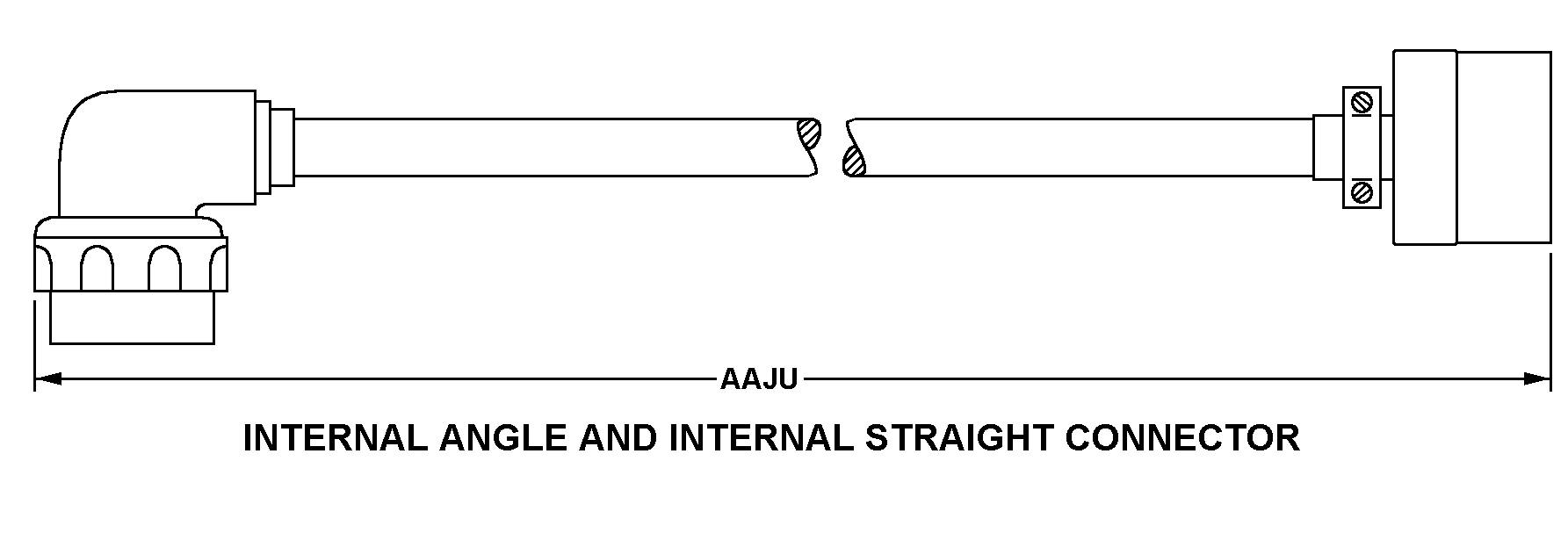

| STYLE DESIGNATOR | 34 INTERNAL ANGLE AND INTERNAL STRAIGHT CONNECTOR |
| OVERALL LENGTH | 8.500 FEET |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | MS-3101A-24-6S 1ST END ALL CONDUCTORS MS-3108B-24-6P 2ND END ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 96906 1ST END ALL CONDUCTORS 96906 BOTH ENDS ALL CONDUCTORS |
Restrictions/Controls & Freight Information | NSN 5995-00-537-5589
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
