NSN 5995-00-170-5551 CG558U2-6 3-4, CG558U2634, SCD22837
Product Details | RADIO FREQUENCY CABLE ASSEMBLY
5995-00-170-5551 A definite length of CABLE, RADIO FREQUENCY having one or both ends processed and/or terminated in fittings which provide for connection to other items. Includes multiple cable assemblies in a common jacket or shield. Excludes items having branches or forks and LEAD, TEST. See also CABLE ASSEMBLY, RADIO FREQUENCY, BRANCHED.20211350043Fuzing and Firing Devices, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment
Part Alternates: CG558U2-6 3-4, CG558U2634, SCD22837, PARTDWG87C1775, 196, 5995-00-170-5551, 00-170-5551, 5995001705551, 001705551
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-170-5551 | 00886 ( CABLE ASSEMBLY, RADIO FREQUENCY ) |
Drawings & Photos | NSN 5995-00-170-5551
Cross Reference | NSN 5995-00-170-5551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 196 | 05690 | BARKER & WILLIAMSON |
| 196 | 4W146 | SMART MACHINES, INC. DBA BARKER & WILLIAMSON |
| CG558U2-6 3-4 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| PARTDWG87C1775 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| SCD22837 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5995-00-170-5551
Technical Data | NSN 5995-00-170-5551
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR PLASTIC POLYETHYLENE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR COPPER 2ND POSITION SHIELD BRAID, METALLIC FIRST CONDUCTOR RESIN SYNTHETIC 7TH POSITION CONDUCTOR SINGLE CONDUCTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-343 FED SPEC SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR L-P-390,TYPE 2,CLASS L,GRADE 7 FED SPEC SINGLE MATERIAL RESPONSE 1ST POSITION PRIMARY INSULATION SINGLE CONDUCTOR QQ-W-343 FED SPEC SINGLE MATERIAL RESPONSE 2ND POSITION SHIELD BRAID, METALLIC FIRST CONDUCTOR |
| ROUND CONDUCTOR SIZE | 18 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 7 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 26 SINGLE CONDUCTOR |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 1 COAXIAL |
| ELECTRICAL RESISTANCE | 72.00 OHMS IMPEDANCE AND 78.00 OHMS IMPEDANCE |

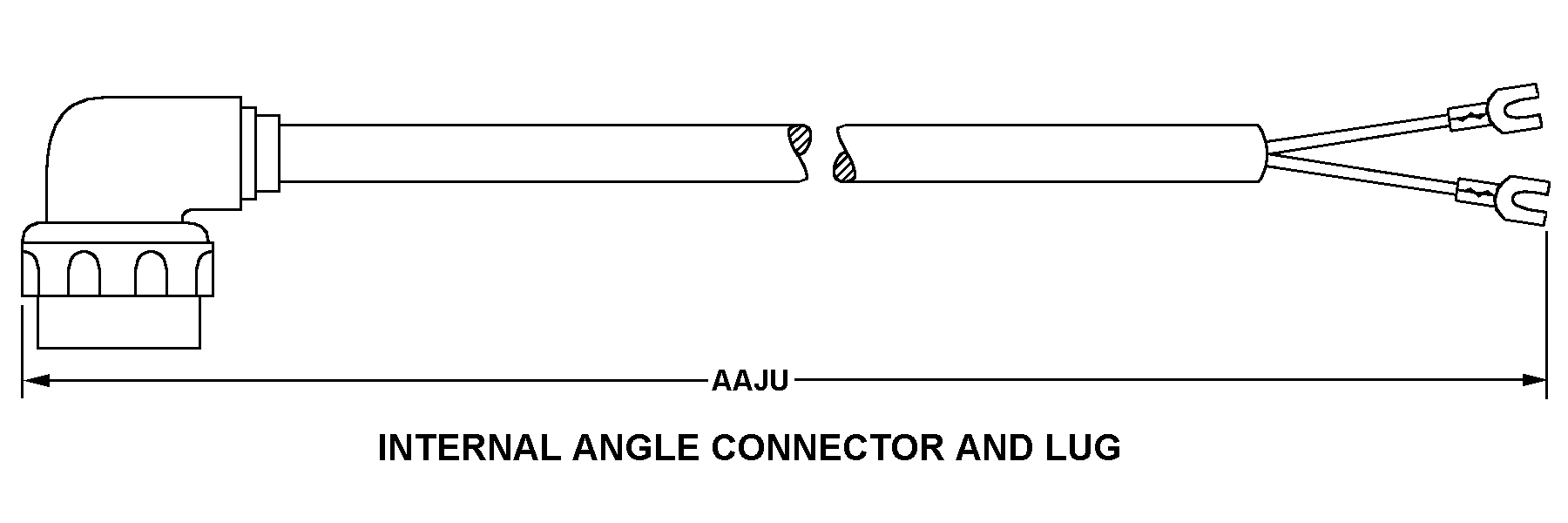

| STYLE DESIGNATOR | 28 INTERNAL ANGLE CONNECTOR AND LUG |
| OVERALL LENGTH | 2.563 FEET |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.405 INCHES NOMINAL |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | PL-259 1ST END ALL CONDUCTORS 3003-10 2ND END ALL CONDUCTORS |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 80063 1ST END SINGLE CONDUCTOR 77144 2ND END SINGLE CONDUCTOR |
| SPECIAL FEATURES | CABLE TYPE RG-11A/U |
Restrictions/Controls & Freight Information | NSN 5995-00-170-5551
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061320 | COAXIAL TRANSMISSION LINE/FITTINGS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
